Control Valve Component Location

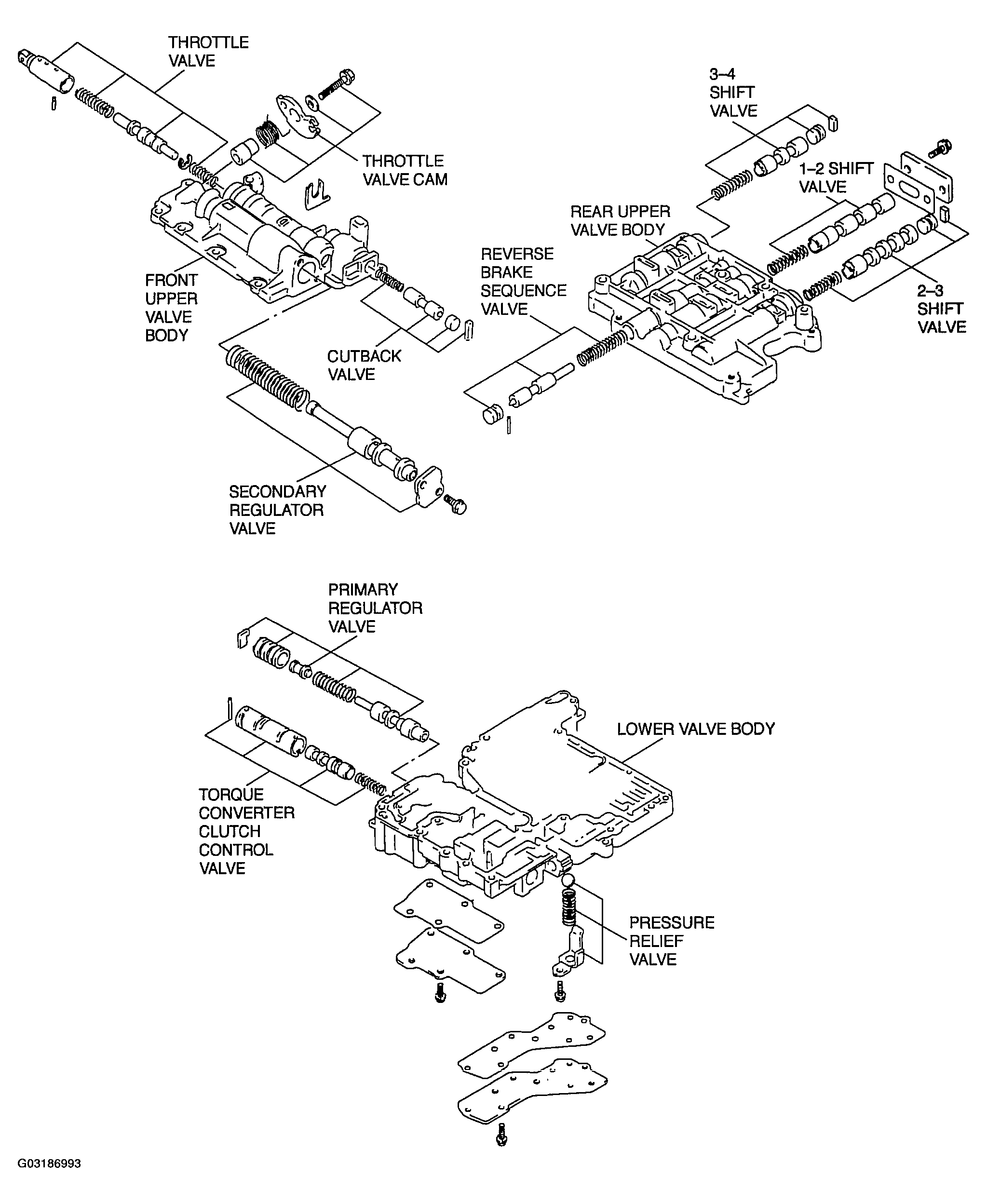

Fig 1: Identifying Control Valve Components
G03186993Courtesy of MAZDA MOTORS CORP.
