Component Descriptions

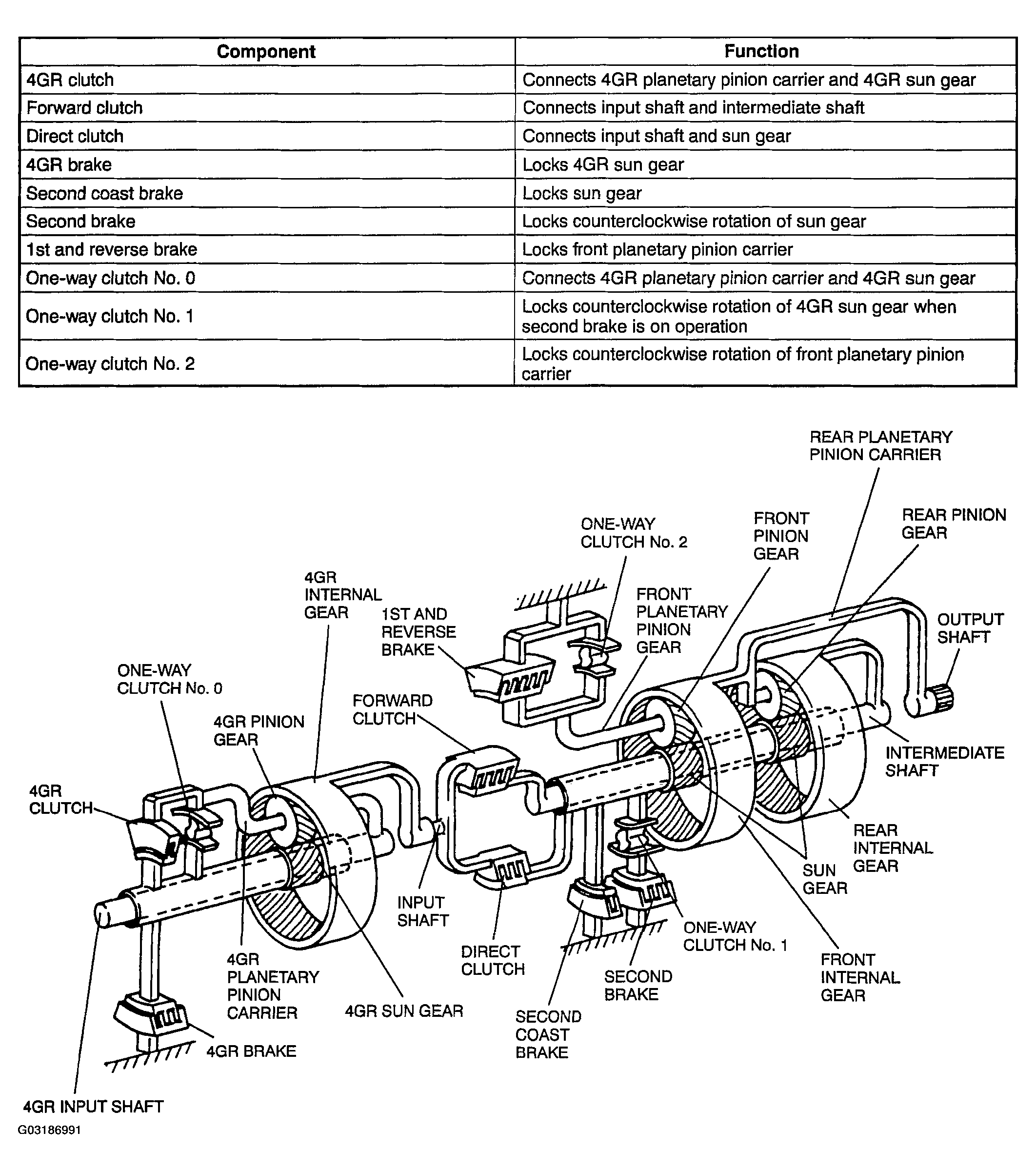

Fig 1: Powertrain Component Descriptions
G03186991Courtesy of MAZDA MOTORS CORP.
