Wiper Unit Assembly Note

  1. Make sure the terminals of the harness assembly are connected to the terminals of the connector as shown in the figure.

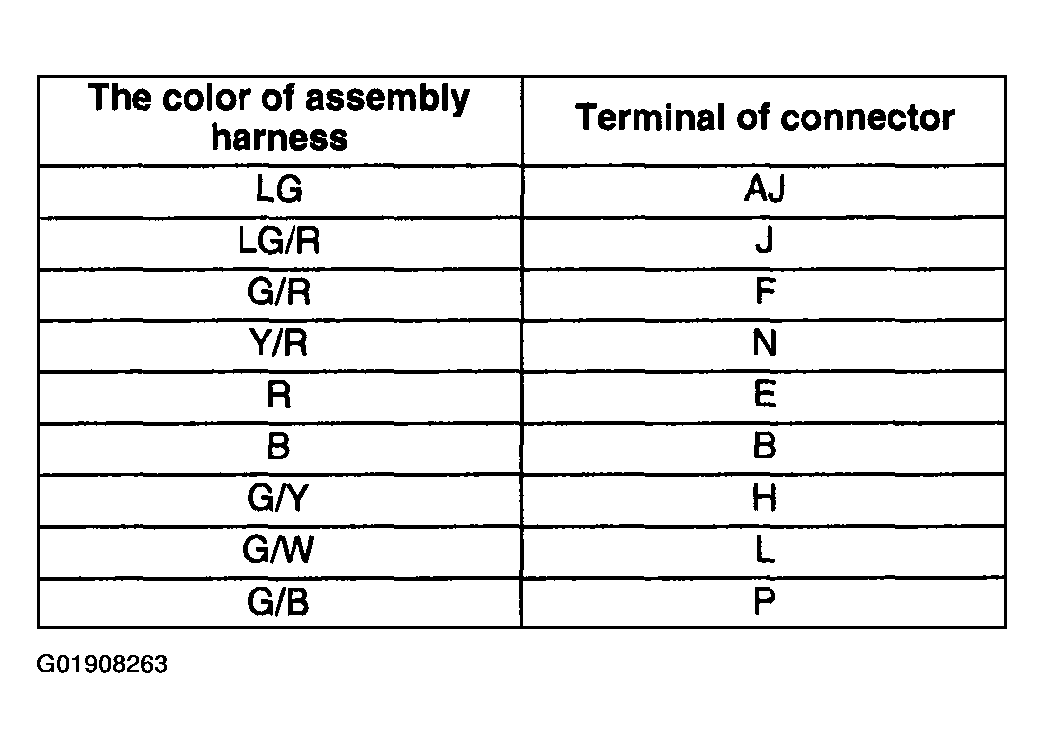

    Fig 1: Assembly Harness Color And Connector Terminals Table
    G01908263Courtesy of MAZDA MOTORS CORP.
