Brake Switch Inspection

Disconnect the brake switch connector.
Inspect for continuity between the terminals of the brake switch connector using the circuit tester.
- If not as specified, replace the brake switch.

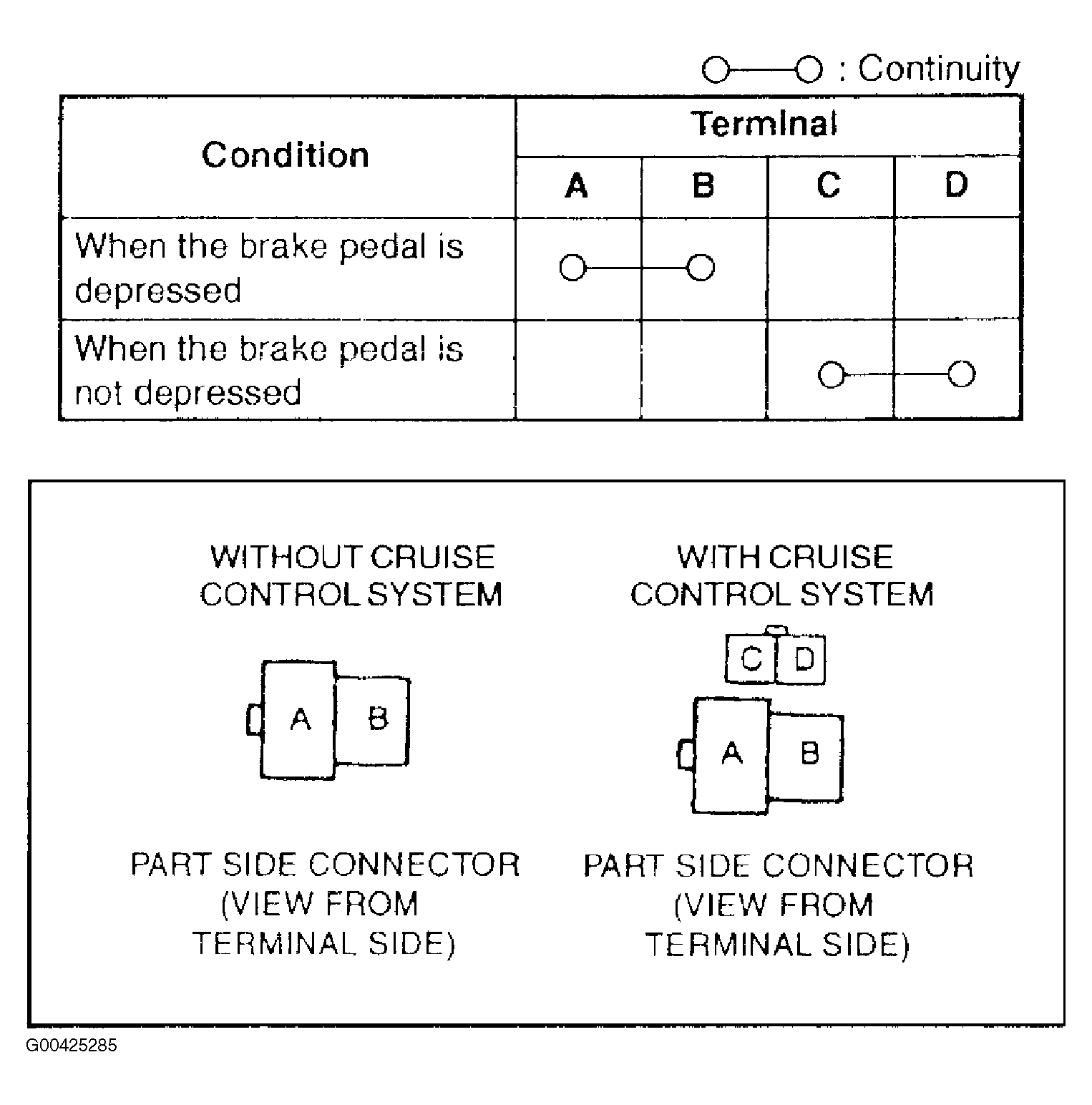

Fig 1: Brake Switch Continuity Table & Connector Views

Courtesy of MAZDA MOTORS CORP.
