Cruise Control Main Switch Inspection

Remove the cruise control main switch. (See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the cruise control main switch terminals using an ohmmeter.
- If not as specified, replace the cruise control main switch.

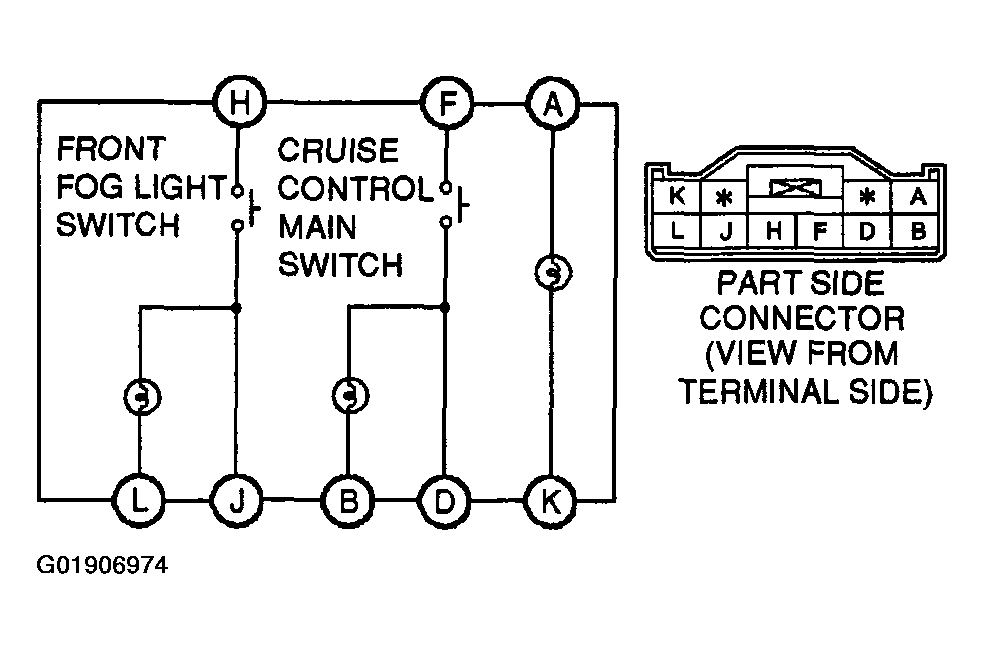

Fig 1: Cruise Control Main Switch Terminal Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.

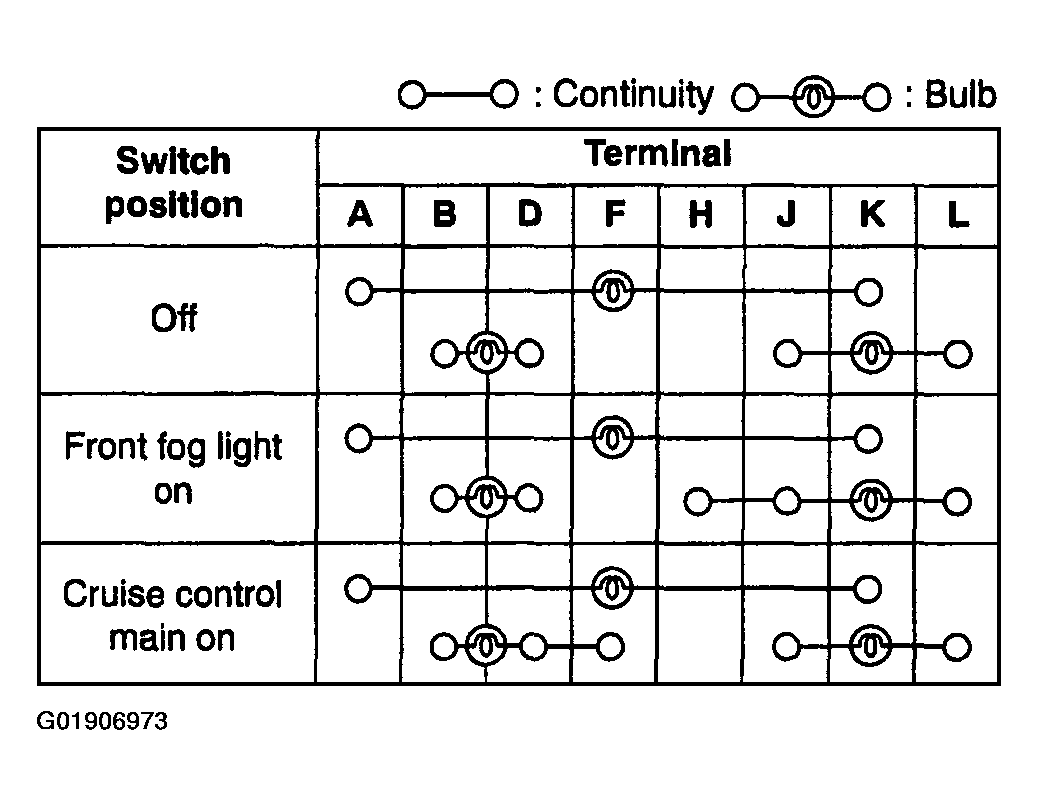

Fig 2: Cruise Control Main Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.
