Cruise Control Switch Inspection

Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
Measure the resistance between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the wiper lever.

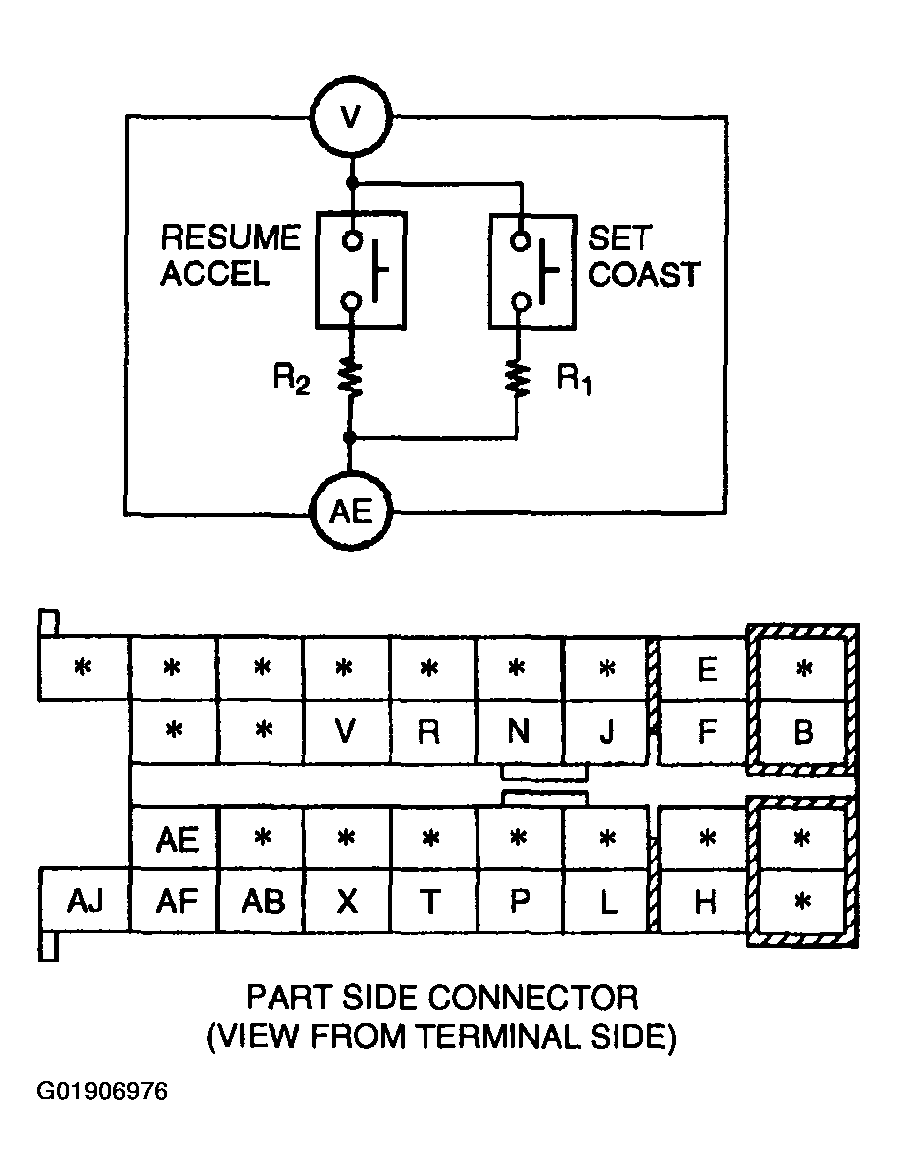

Fig 1: Inspecting Cruise Control Switch Terminal Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.

Fig 2: Cruise Control Switch Resistance Specifications
Courtesy of MAZDA MOTORS CORP.
