Tweeter Removal/Installation

CAUTION:
  • When removing or installing a tweeter, touching the radio cone paper could cause poor sound quality. When removing or installing a tweeter speaker, hold the speaker's bracket and handle with care.
  1. Disconnect the negative battery cable.
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the tweeter.

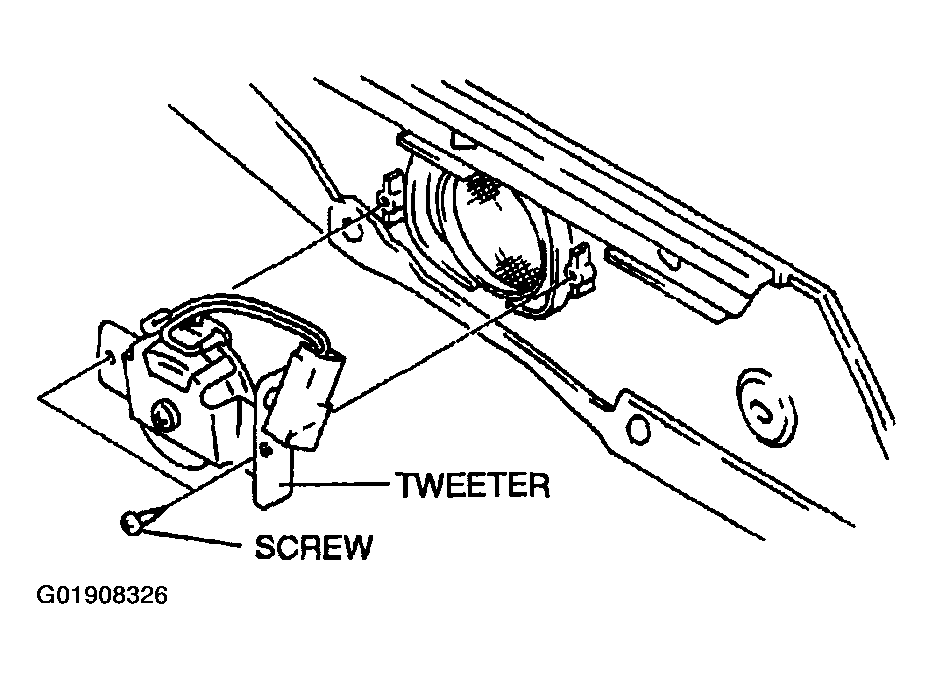

    Fig 1: Removing/Installing Tweeter
    G01908326Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
