Intake Air Temperature Sensor Connector End View
Intake Air Temperature Sensor Connector End View

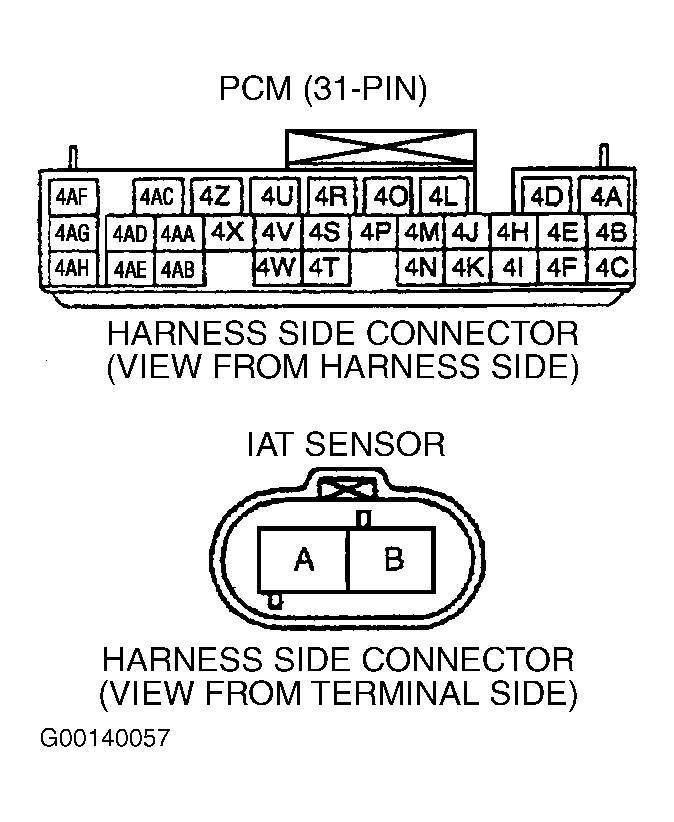

Fig 1: Intake Air Temperature Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
