Coil Installation Note

  1. Install the hook 1 to the steering lock.
  2. Install the hook 2 to the steering lock.

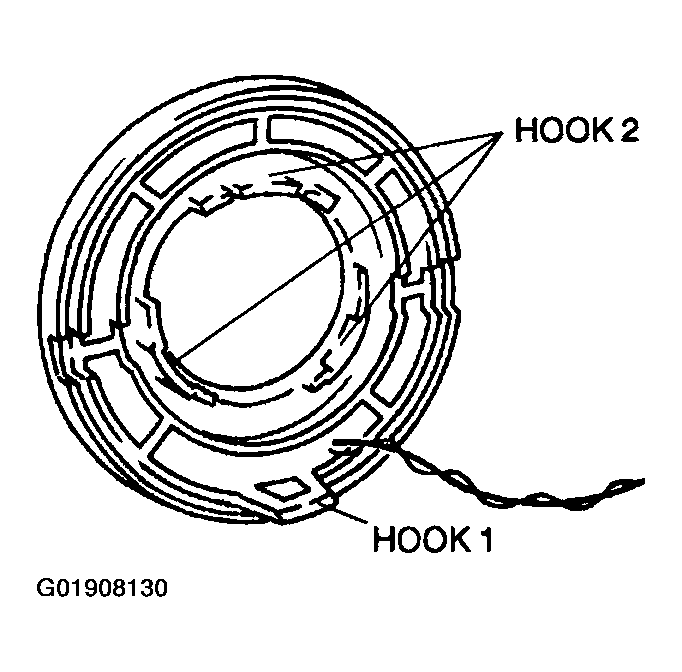

    Fig 1: Identifying Hooks 1 And 2
    G01908130Courtesy of MAZDA MOTORS CORP.
