Power Door Lock System Location Index

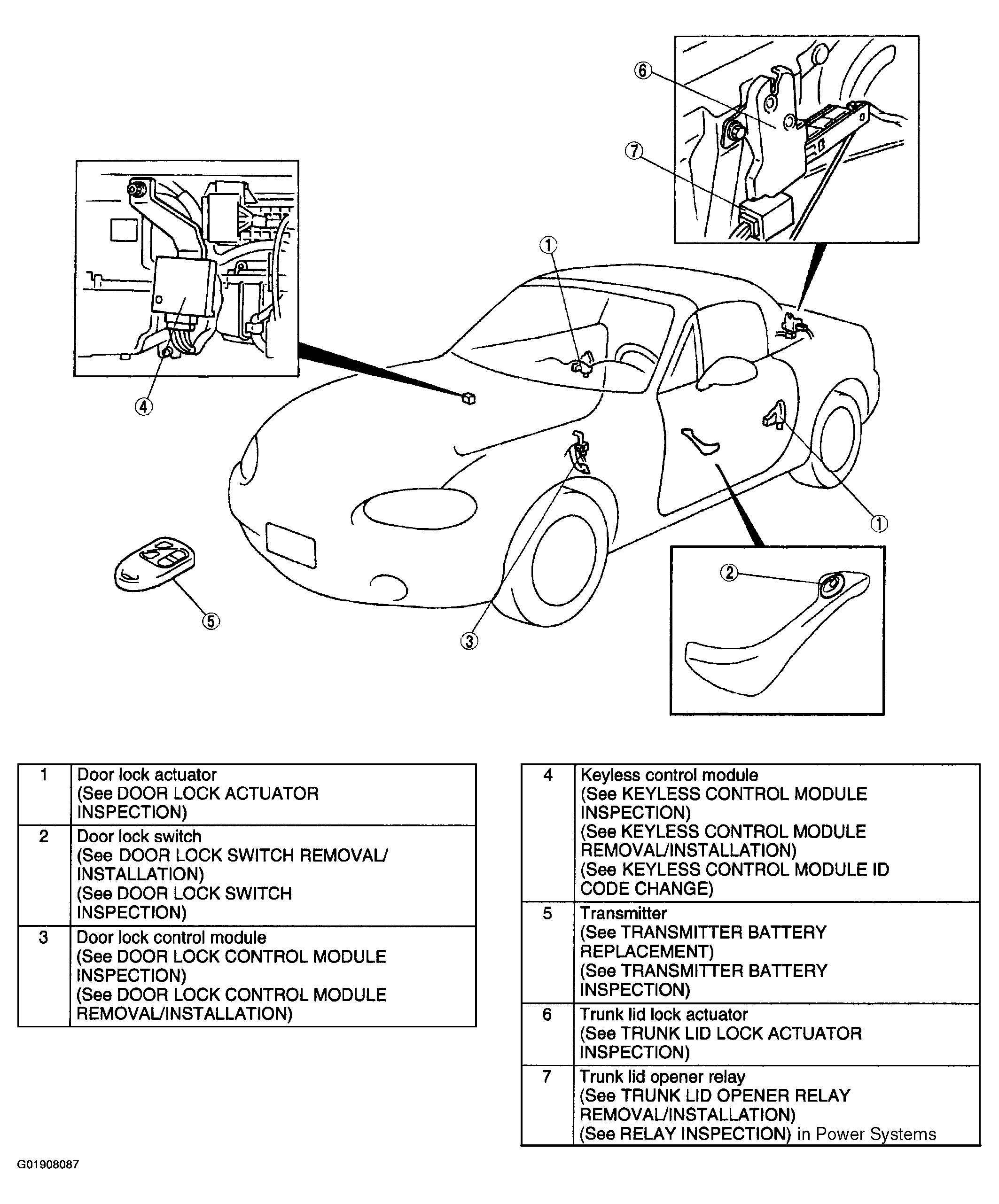

Fig 1: Identifying Power Door Lock System
G01908087Courtesy of MAZDA MOTORS CORP.
