Power Outside Mirror Switch Inspection

Remove the power outside mirror switch. (See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
- If not as specified, replace the power outside mirror switch.

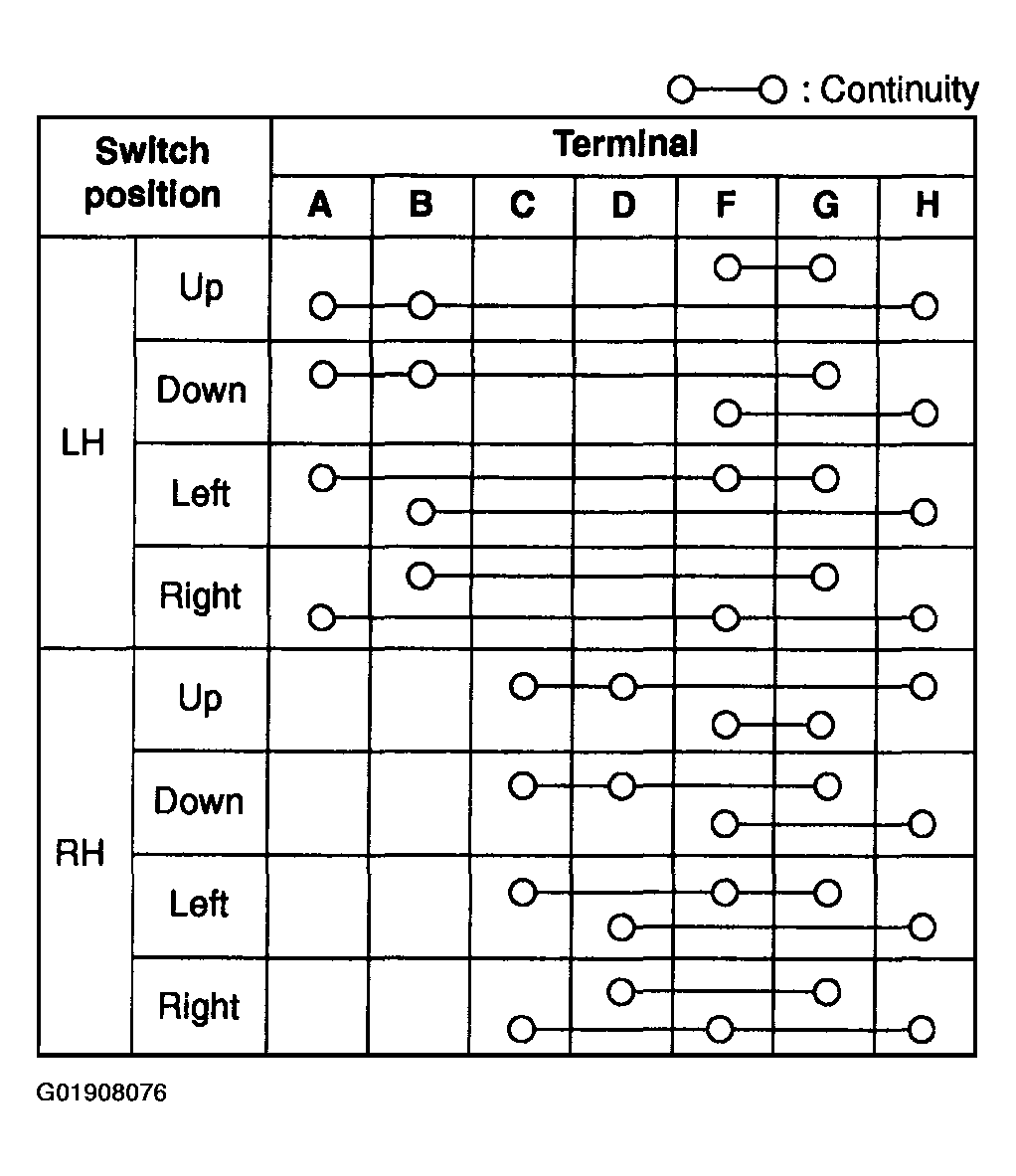

  Fig 1: Power Outside Mirror Switch Inspection (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

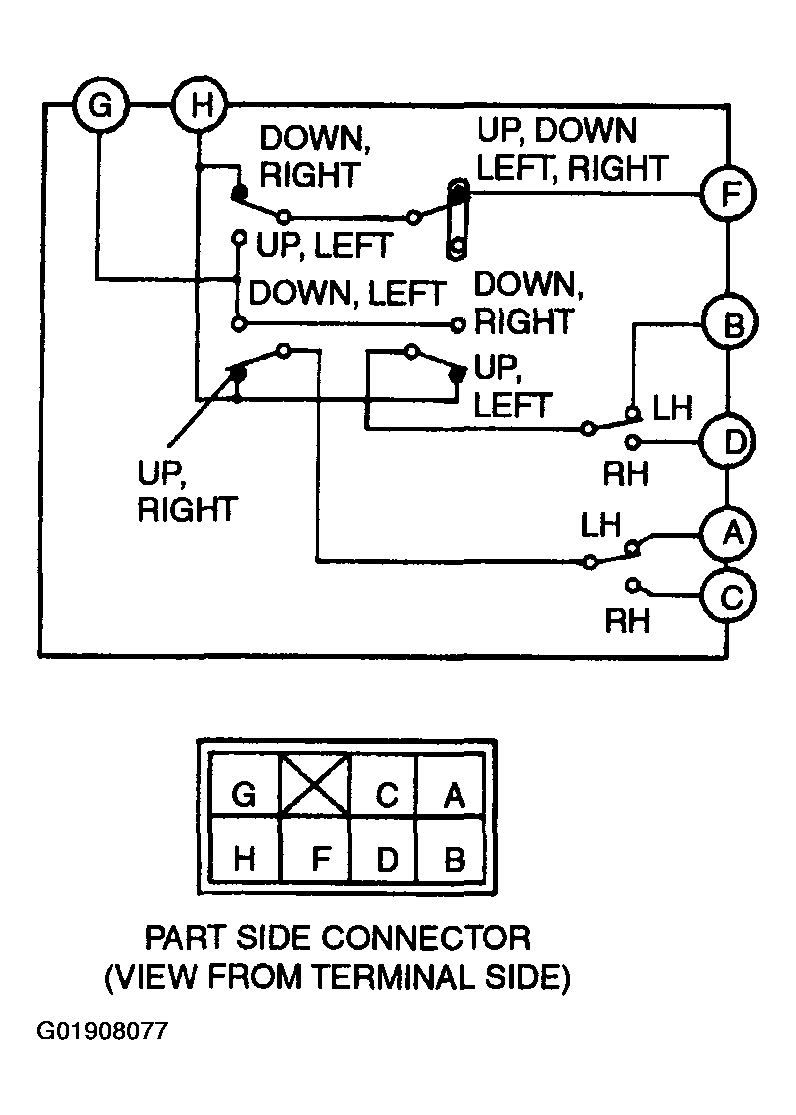

  Fig 2: Power Outside Mirror Switch Inspection (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
