Home › Mazda › 2003 › Protege DX, Standard › Repair and Diagnosis › Engine Mechanical › Lubrication System › Lubrication › Lubrication Location Index

Lubrication Location Index

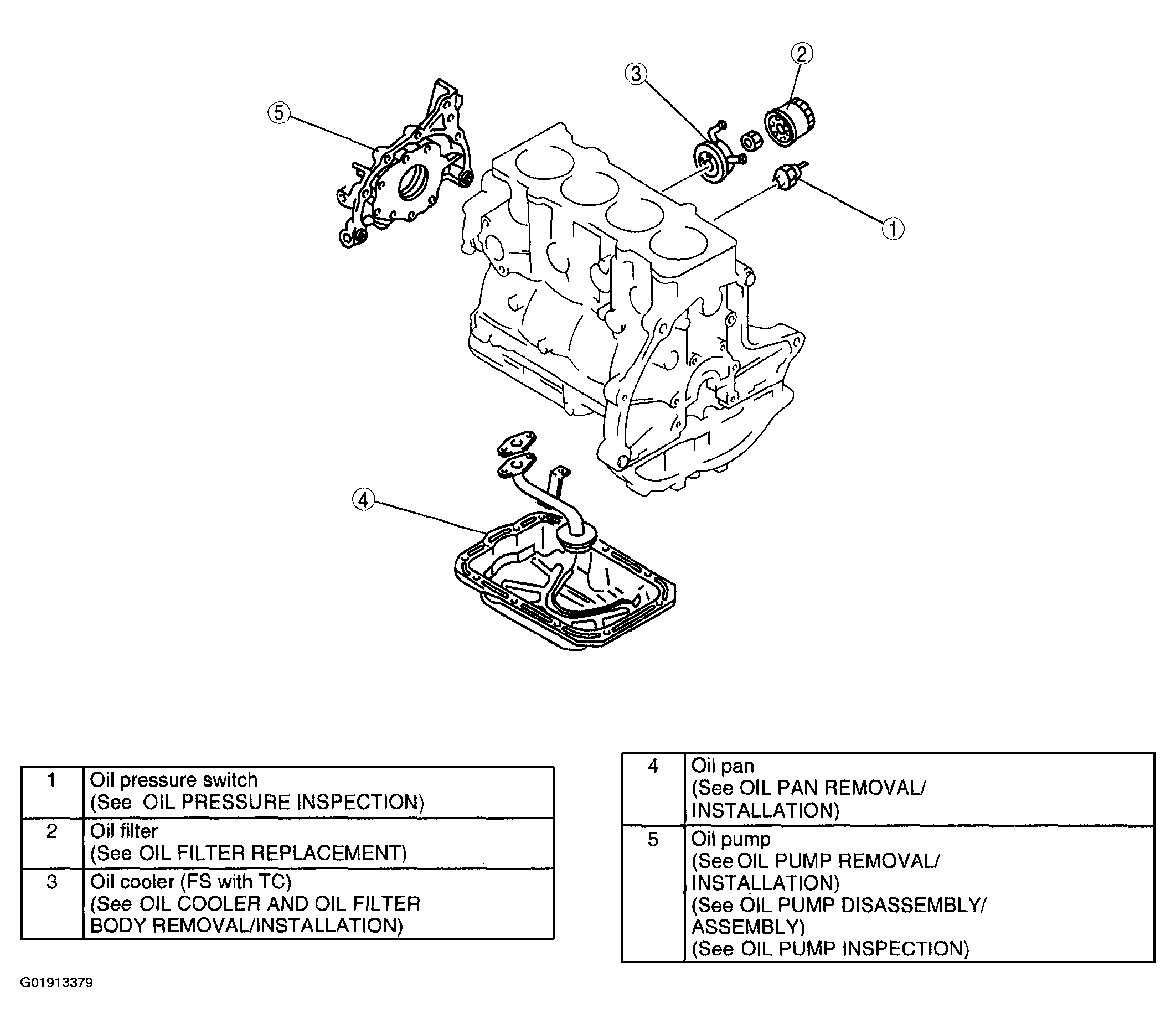

Fig 1: Identifying Lubrication System Components
G01913379Courtesy of MAZDA MOTORS CORP.
