Specification (Unloaded)

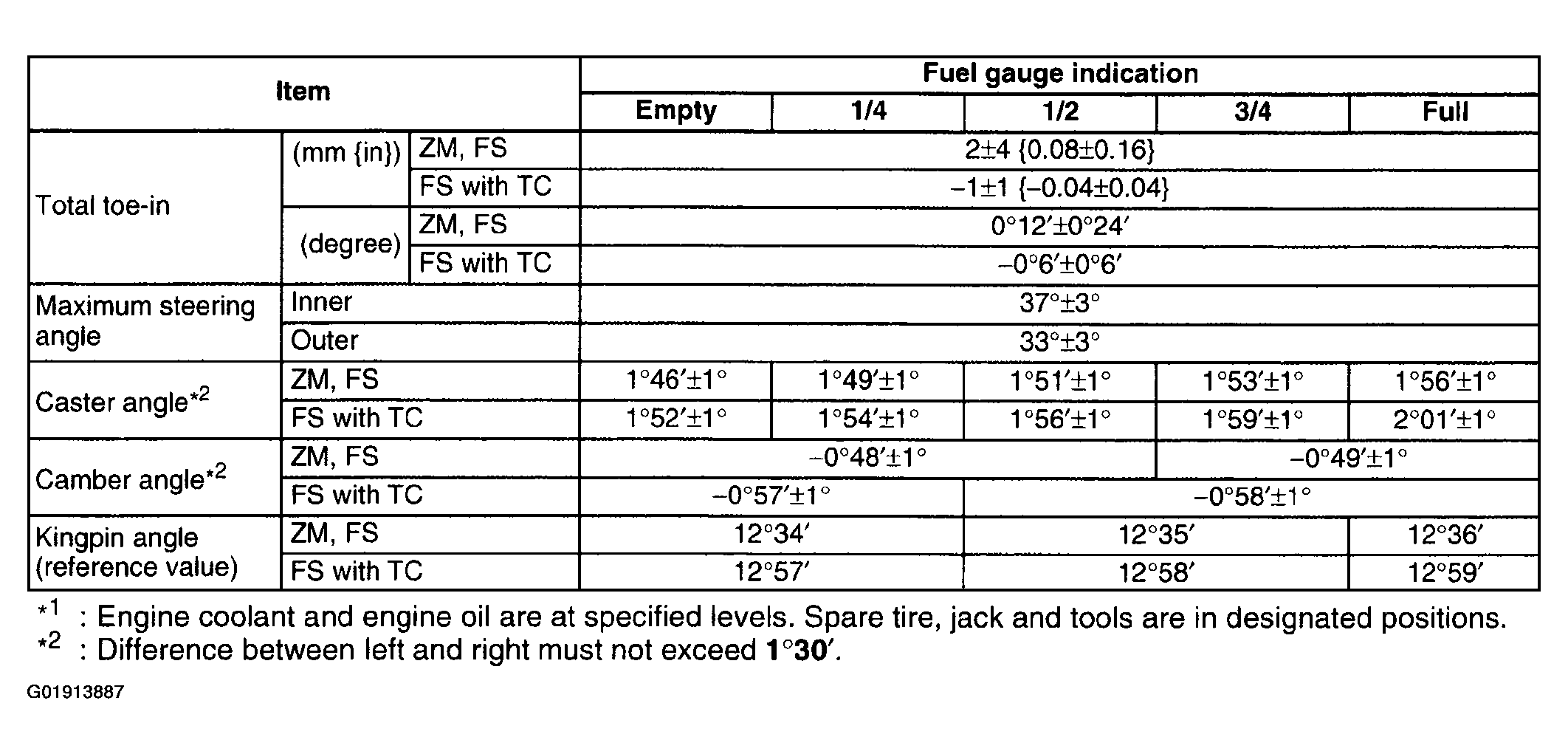

Fig 1: Front Wheel Alignment Specifications - Unloaded
G01913887Courtesy of MAZDA MOTORS CORP.
