Steering Wheel And Column Removal/Installation: Notes

  1. Remove in the order indicated in the figure.

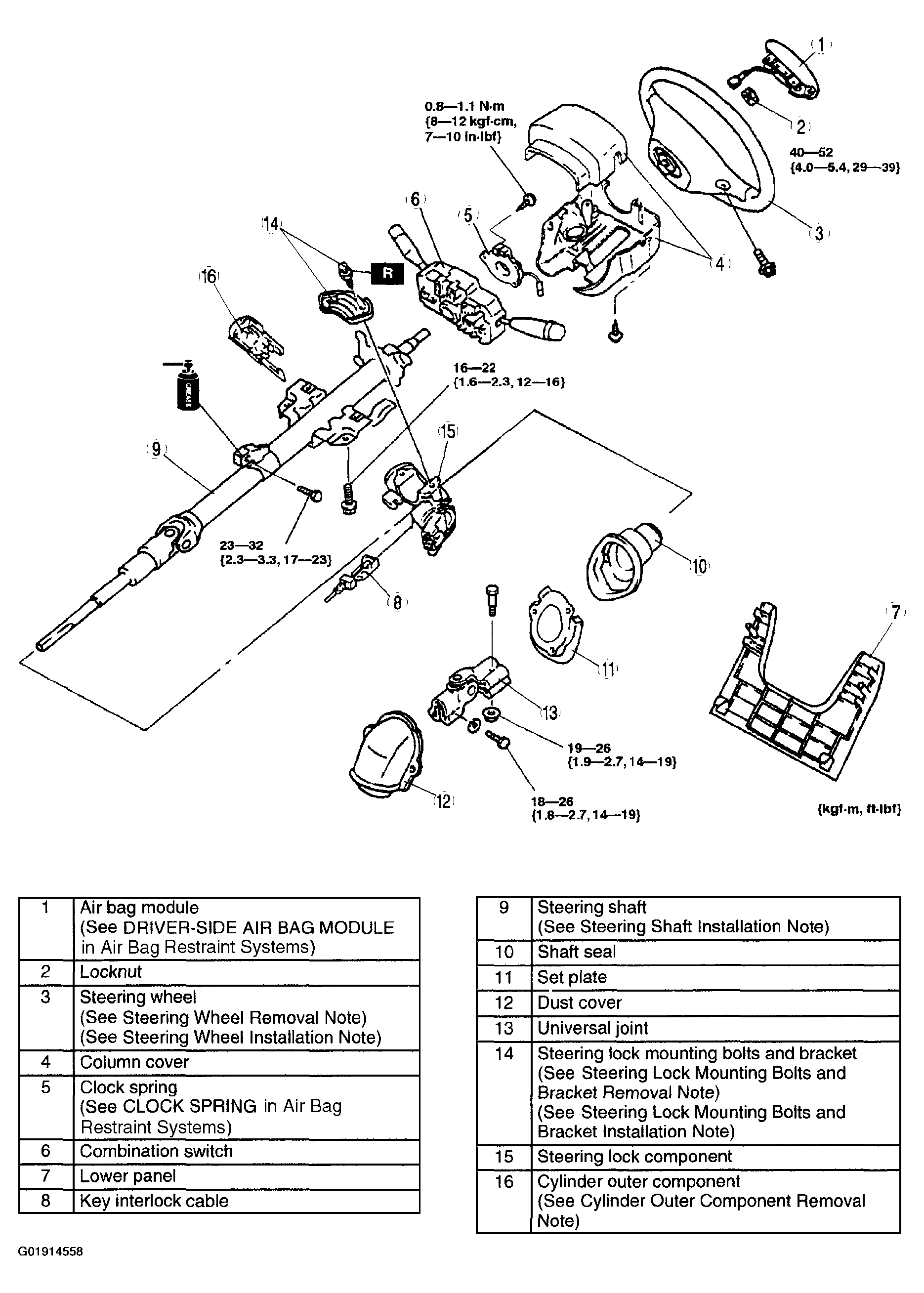

    Fig 1: Identifying Steering Column Components
    G01914558Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
