Engine Speed Sensing Power Steering Location Index

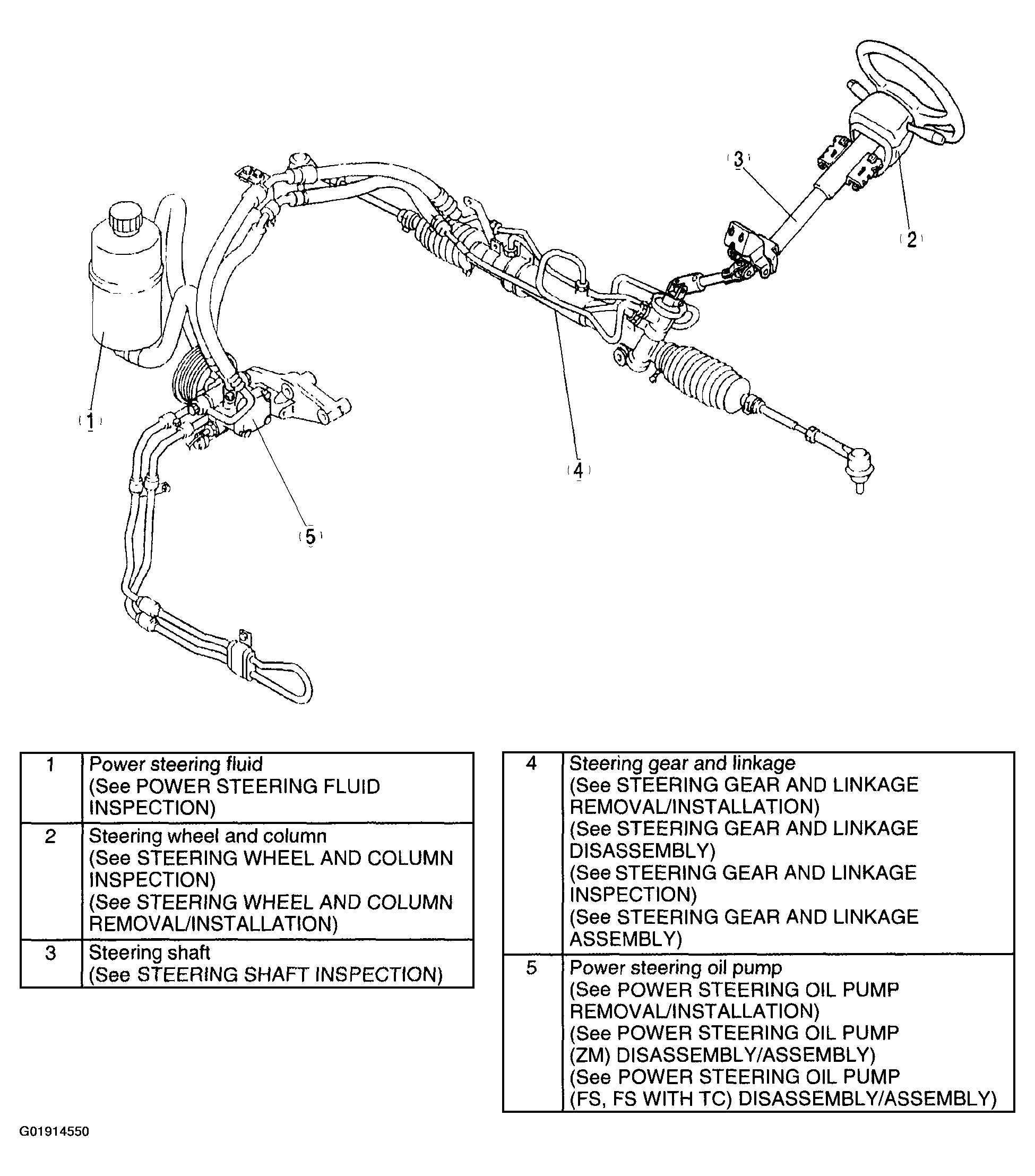

Fig 1: Engine Speed Sensing Power Steering Location Index
G01914550Courtesy of MAZDA MOTORS CORP.
