Keyless Entry System Pre-Inspection

  1. Perform the following pre-inspection before troubleshooting.

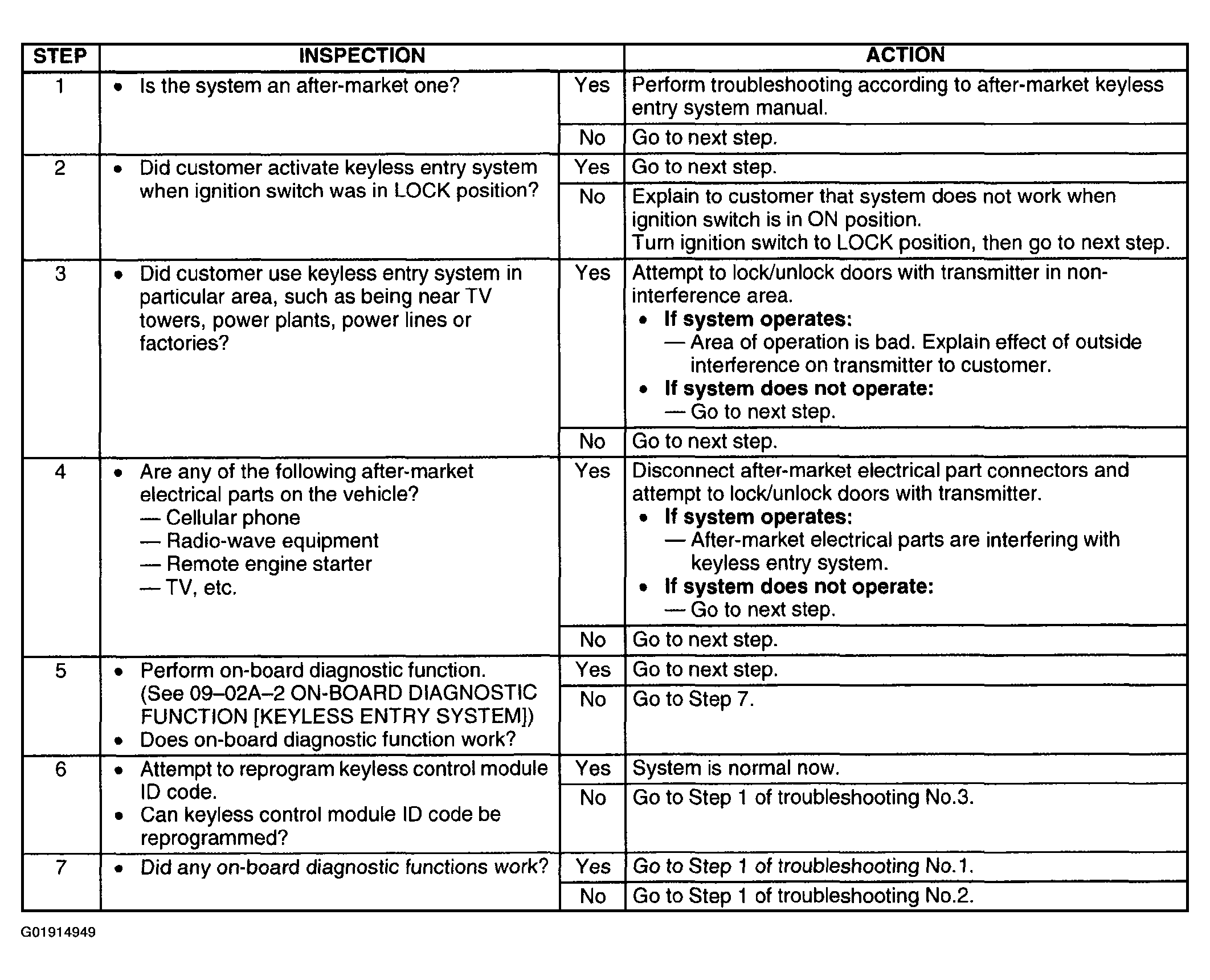

    Fig 1: Keyless Entry System Pre-inspection
    G01914949Courtesy of MAZDA MOTORS CORP.
