Relay Inspection: Eight-terminal

  1. Remove the relay.
  2. Inspect for continuity between the relay terminals using an ohmmeter.
    • If not as specified, replace the relay.
    Fig 1: Relay Eight Terminal Continuity Reference Chart
    G01915557Courtesy of MAZDA MOTORS CORP.

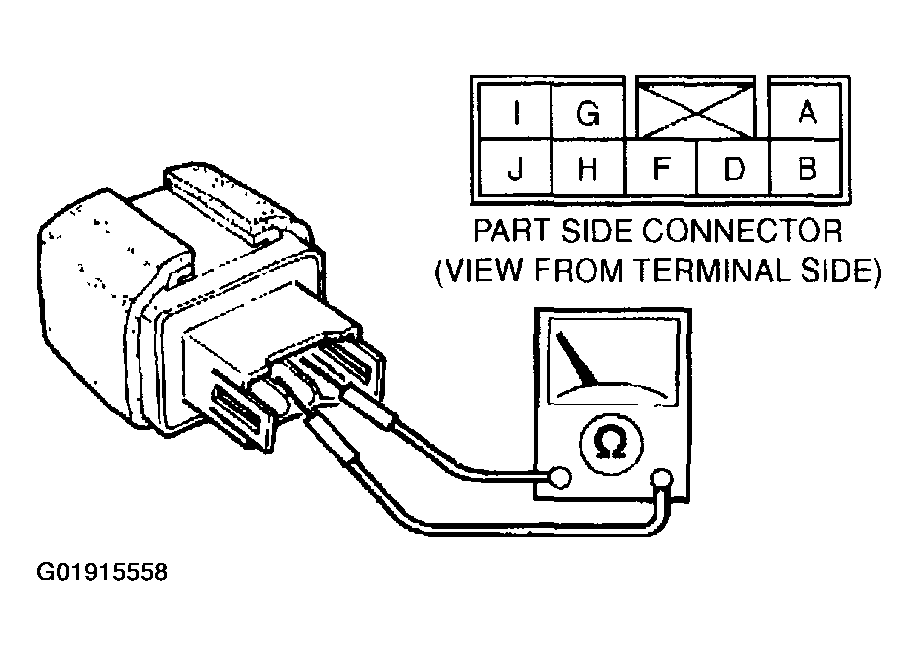

    Fig 2: Inspecting For Continuity Between Relay Terminals
    G01915558Courtesy of MAZDA MOTORS CORP.
