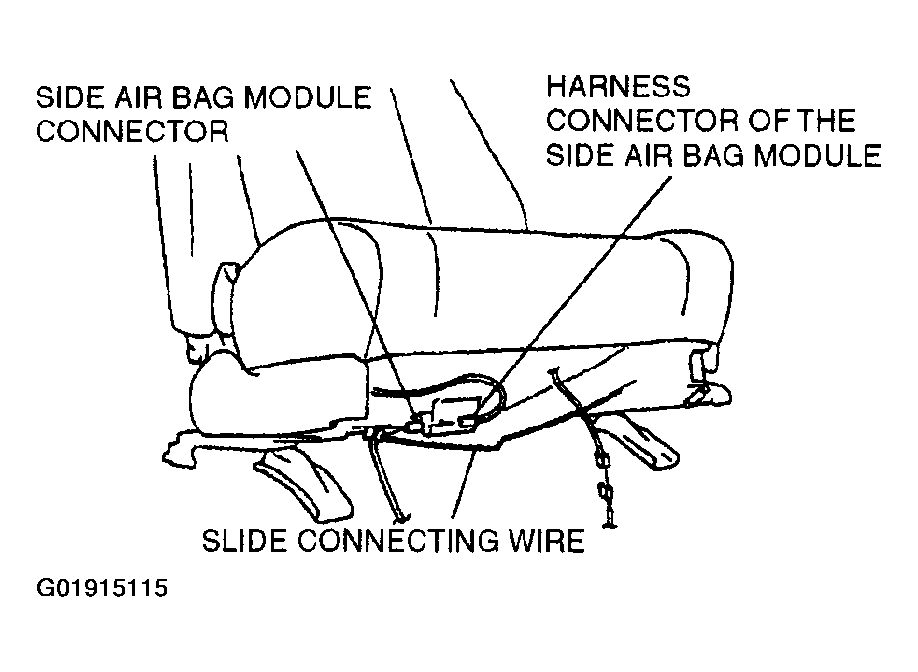

Side Air Bag Module Connector Installation Note
- Be sure to pass the side air bag module connector (vehicle-side harness connector) under the slide connecting wire before connecting it to the harness connector of the side air bag module.
- After connecting the connectors, secure them to the seat cushion frame.
