Inspection of DTCs

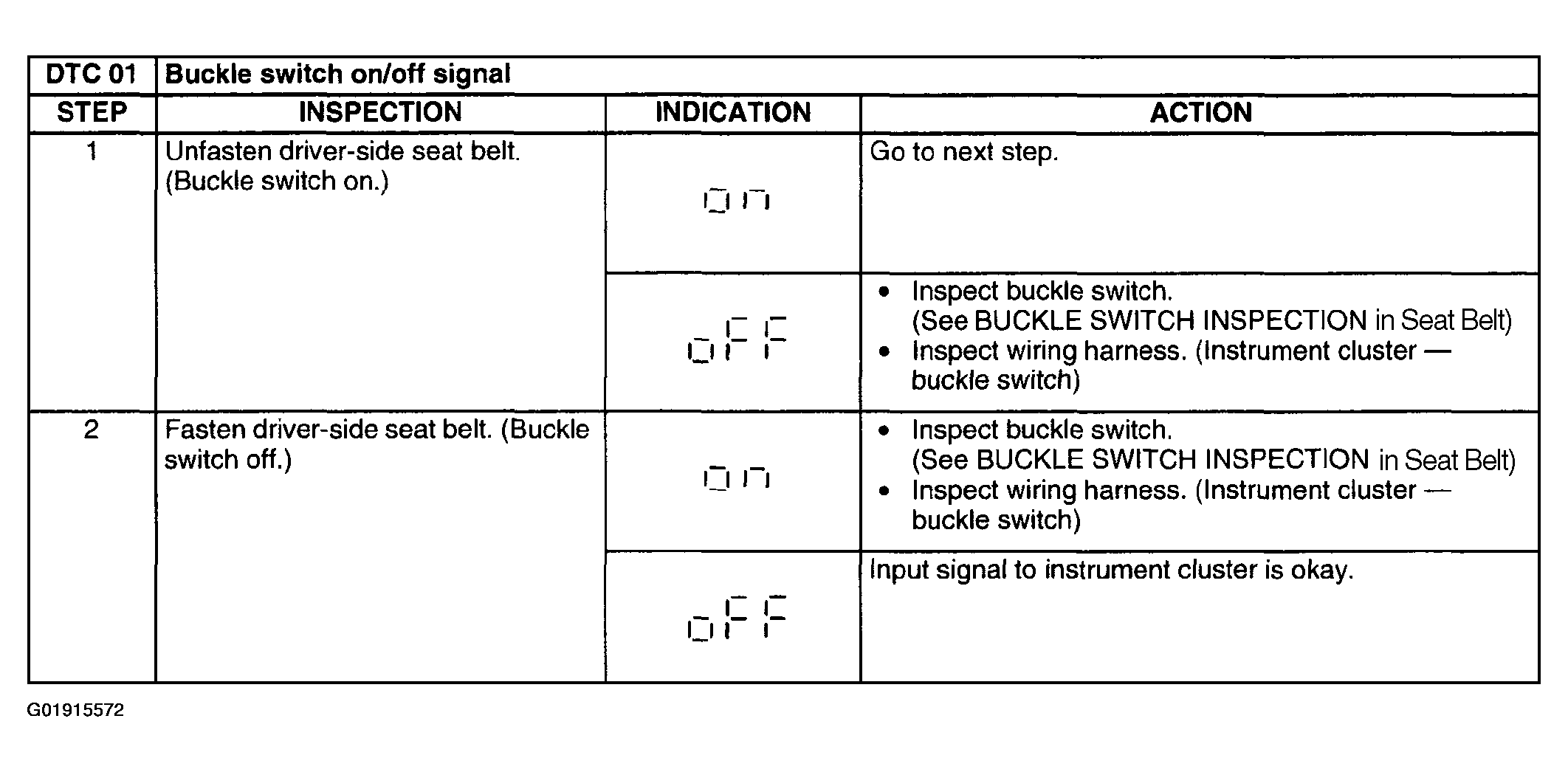

Fig 1: Inspection Procedure - DTC 01

G01915572

Courtesy of MAZDA MOTORS CORP.

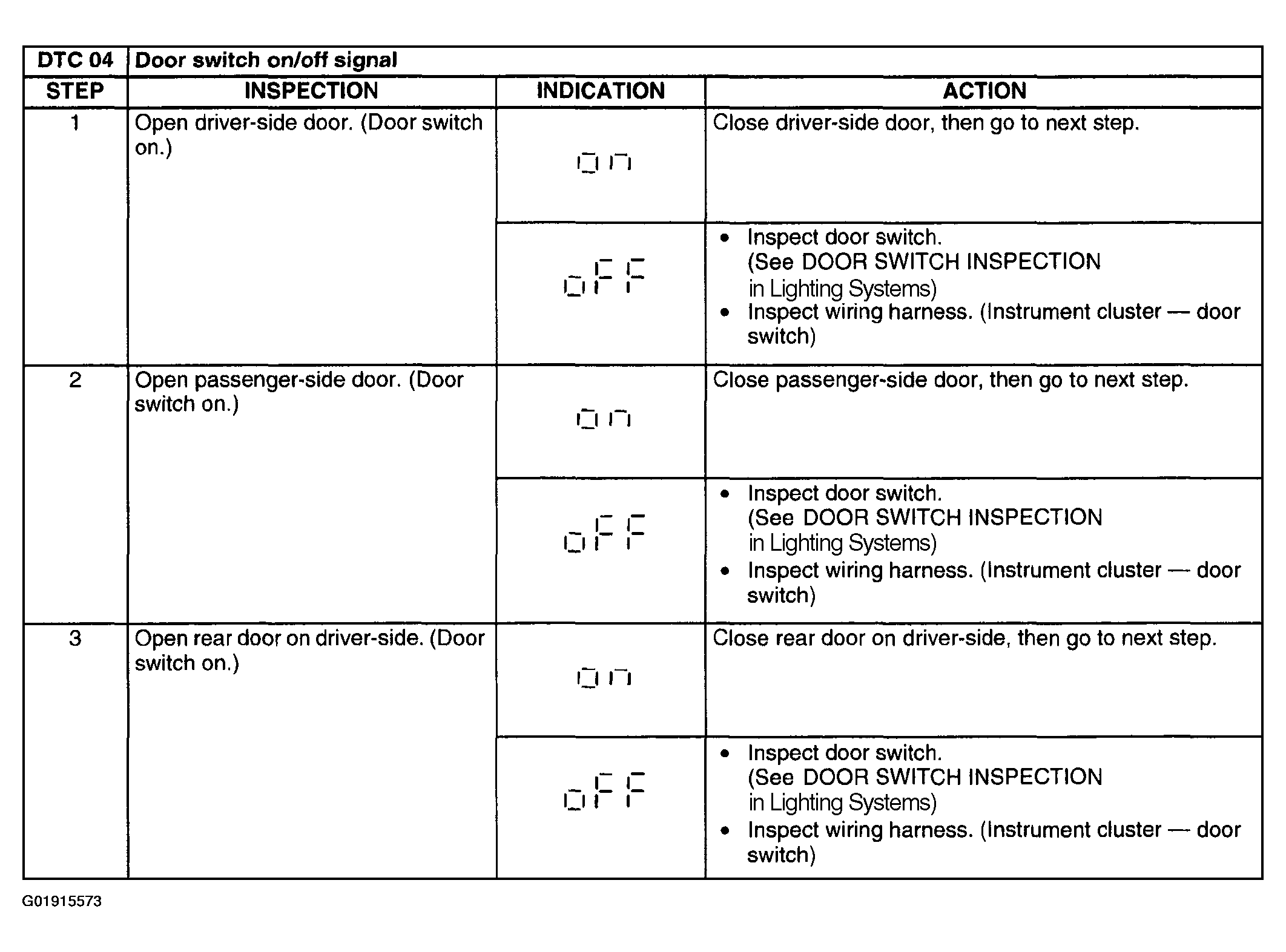

Fig 2: Inspection Procedure - DTC 04 (Steps 1-3)

G01915573

Courtesy of MAZDA MOTORS CORP.

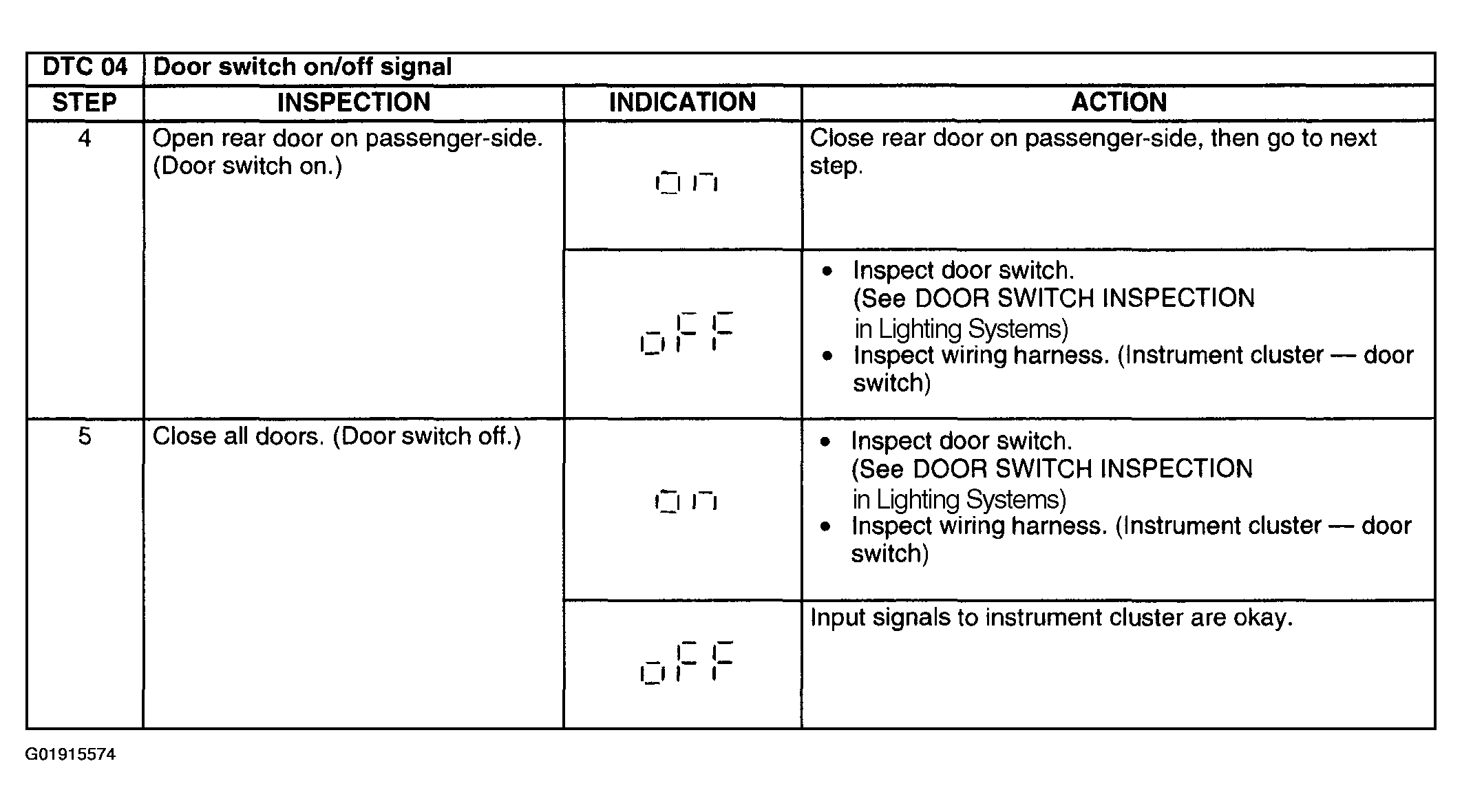

Fig 3: Inspection Procedure - DTC 04 (Steps 4-5)

G01915574

Courtesy of MAZDA MOTORS CORP.

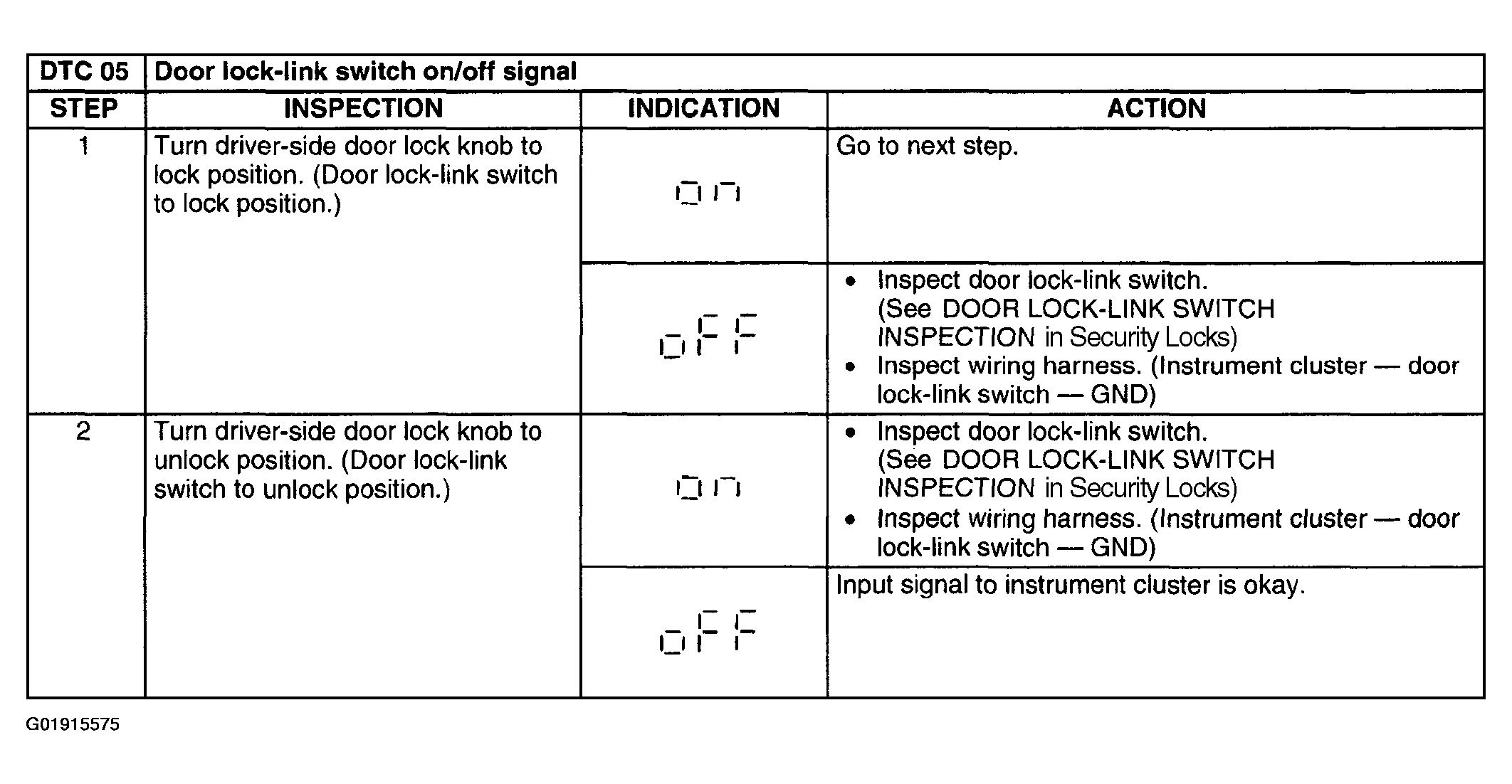

Fig 4: Inspection Procedure - DTC 05

G01915575

Courtesy of MAZDA MOTORS CORP.

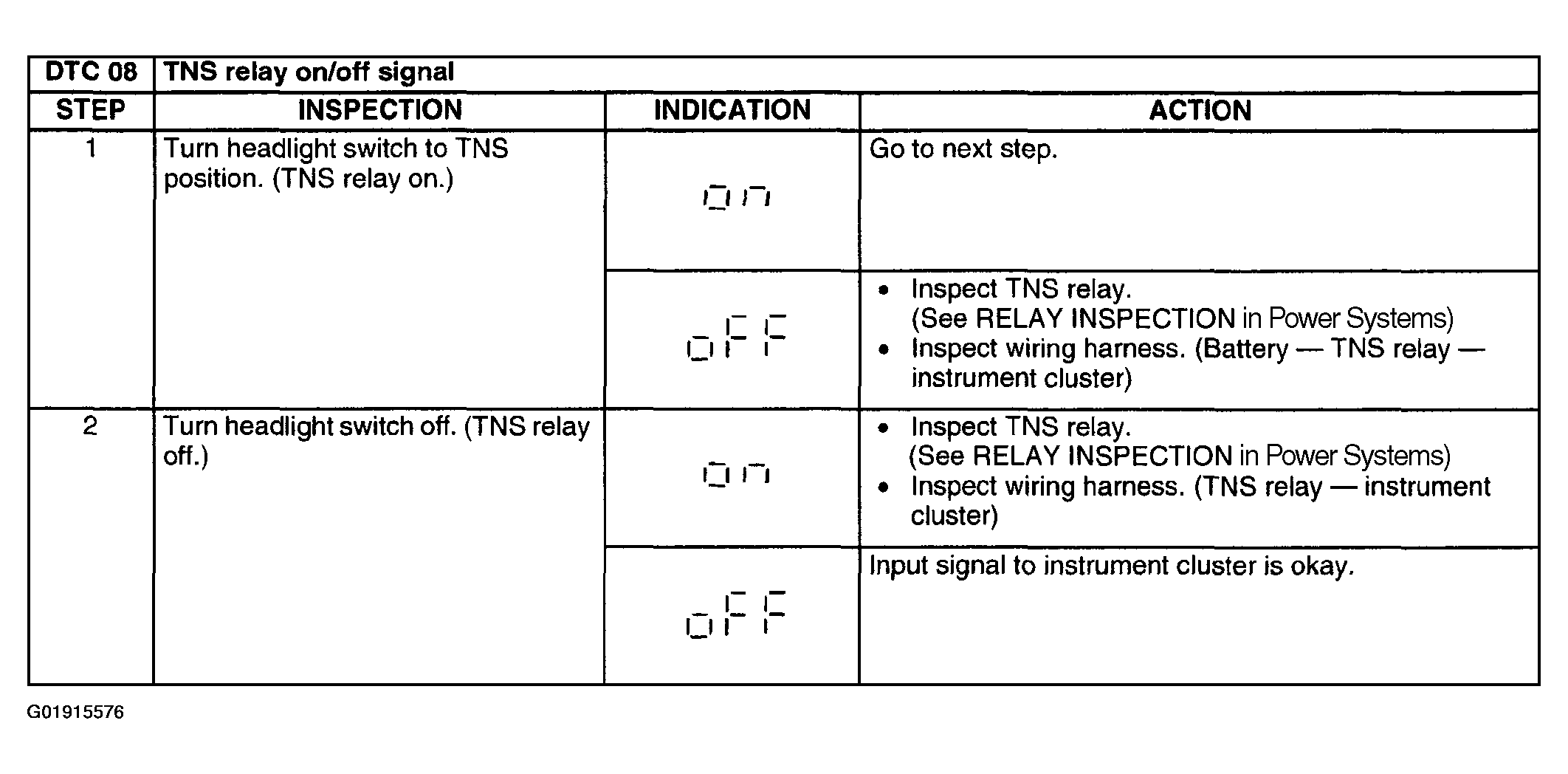

Fig 5: Inspection Procedure - DTC 08

G01915576

Courtesy of MAZDA MOTORS CORP.

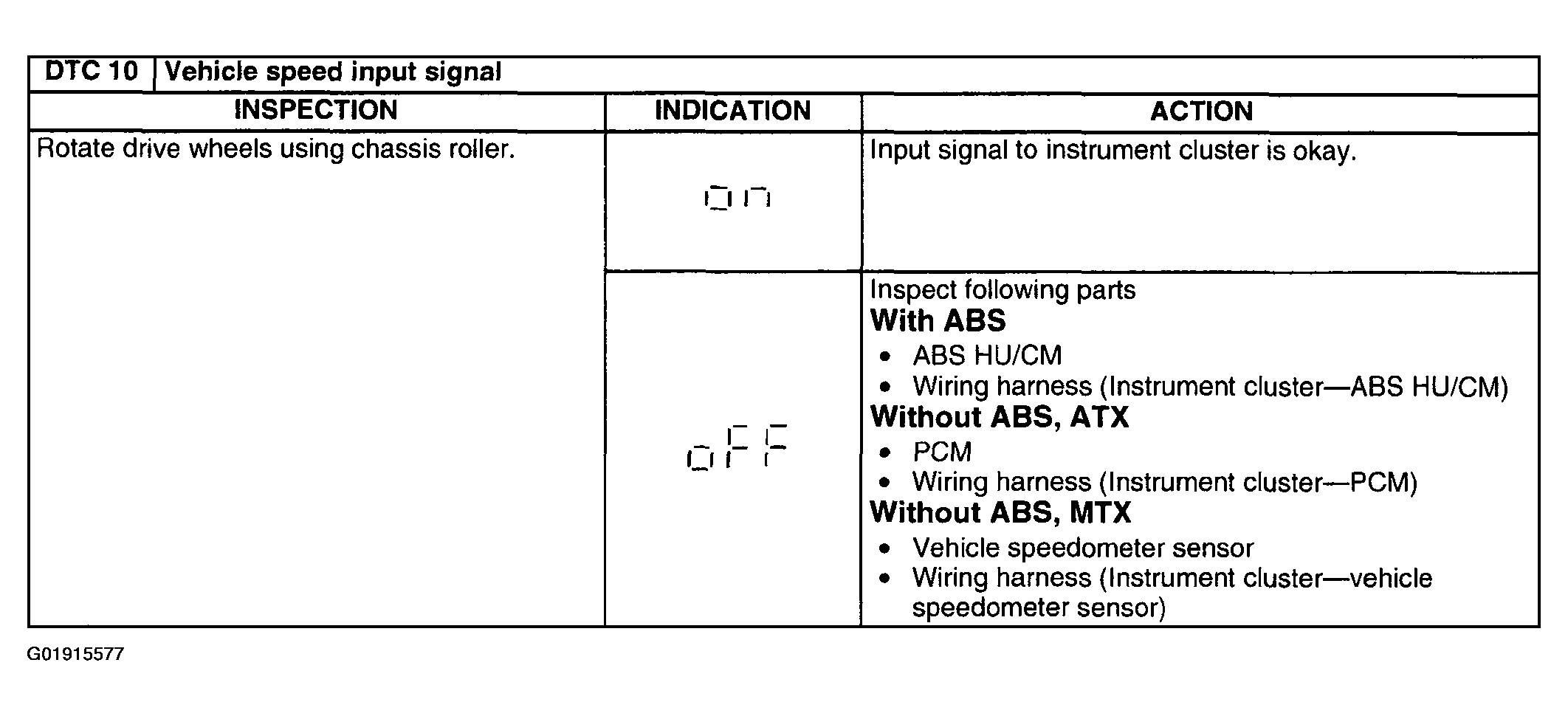

Fig 6: Inspection Procedure - DTC 10

G01915577

Courtesy of MAZDA MOTORS CORP.

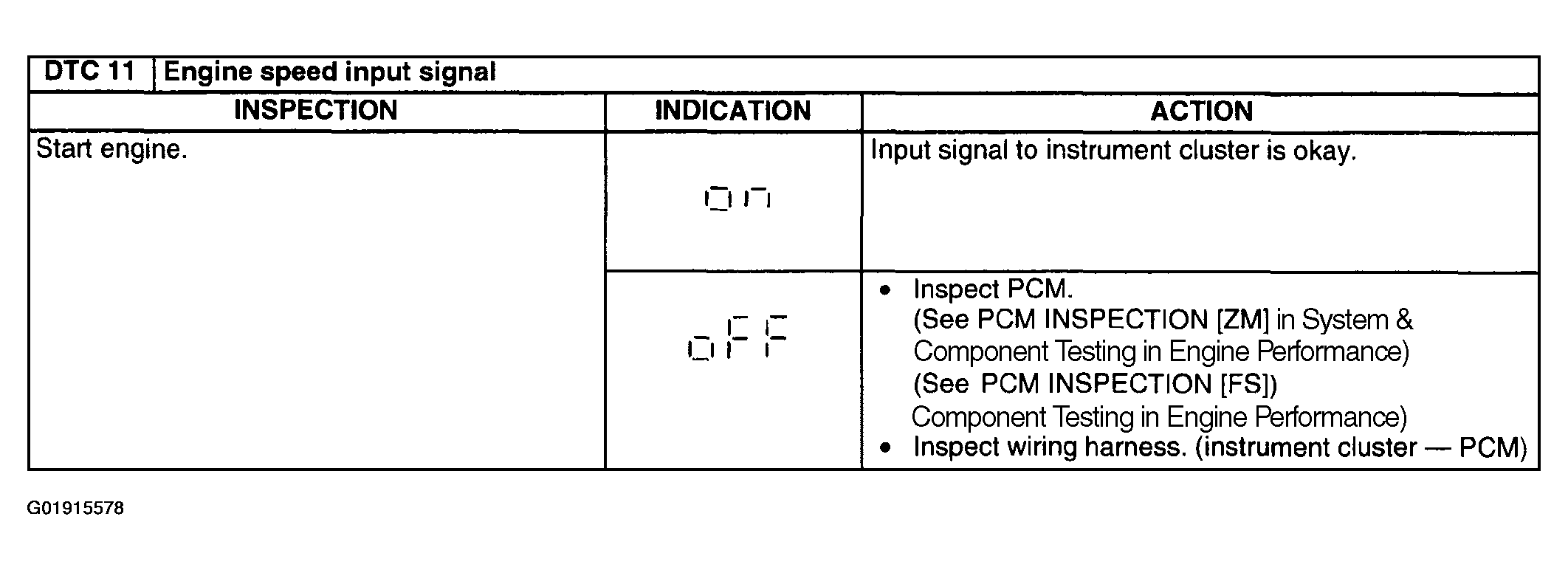

Fig 7: Inspection Procedure - DTC 11

G01915578

Courtesy of MAZDA MOTORS CORP.

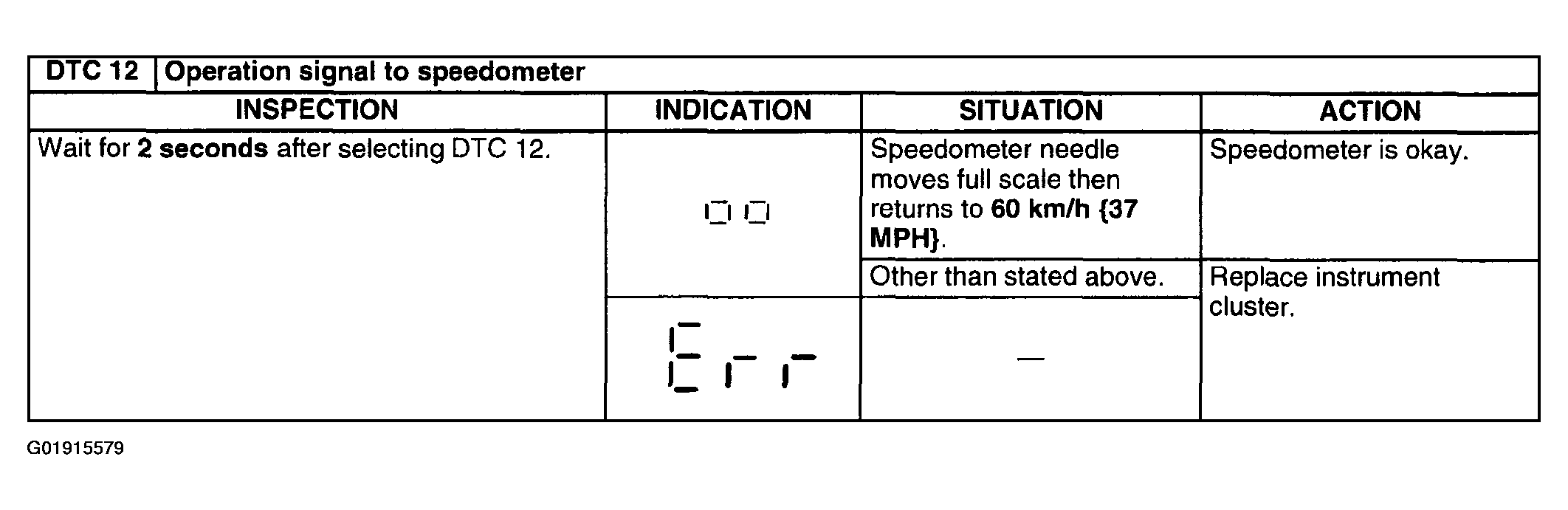

Fig 8: Inspection Procedure - DTC 12

G01915579

Courtesy of MAZDA MOTORS CORP.

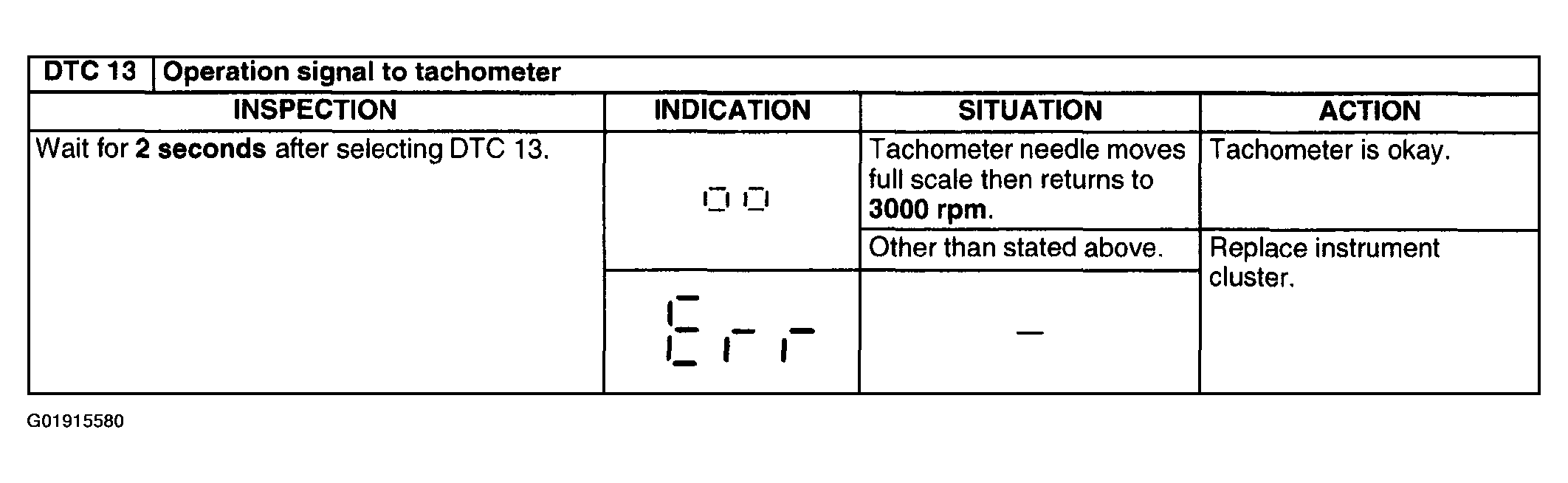

Fig 9: Inspection Procedure - DTC 13

G01915580

Courtesy of MAZDA MOTORS CORP.

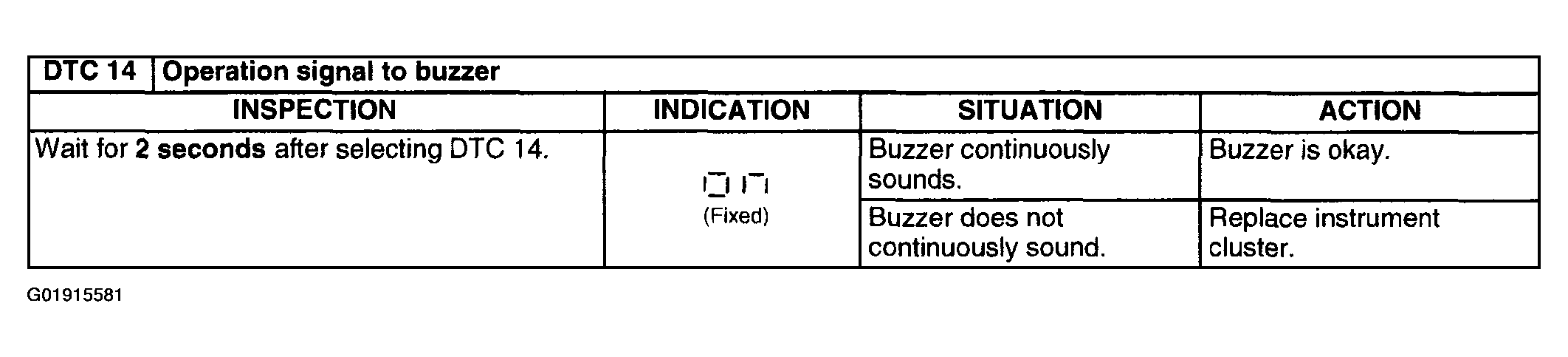

Fig 10: Inspection Procedure - DTC 14

G01915581

Courtesy of MAZDA MOTORS CORP.

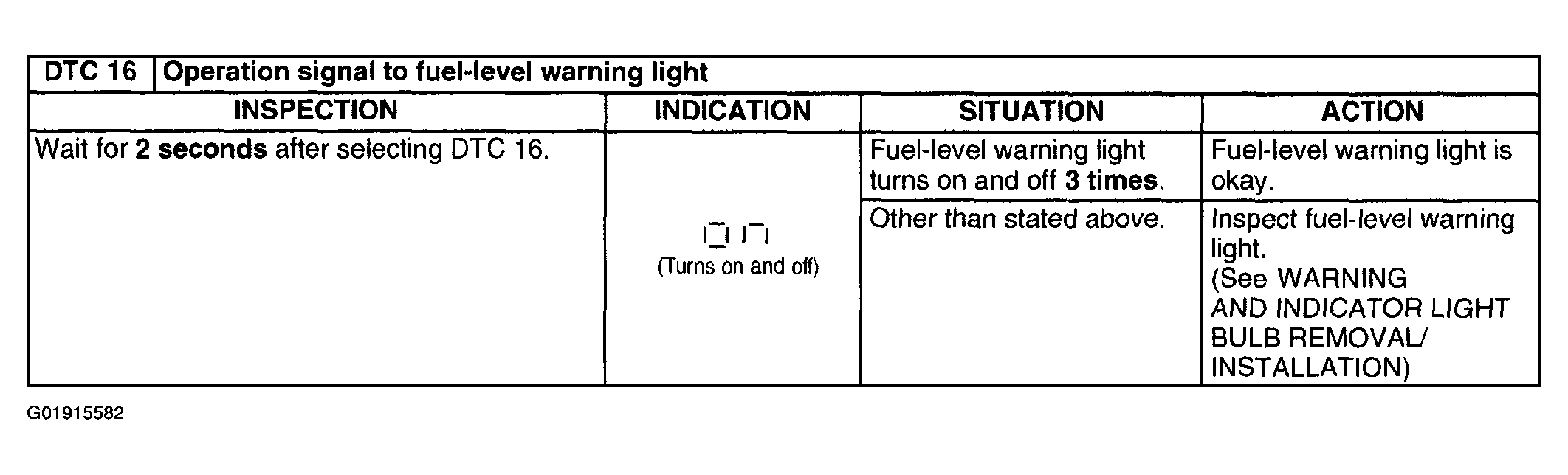

Fig 11: Inspection Procedure - DTC 16

G01915582

Courtesy of MAZDA MOTORS CORP.

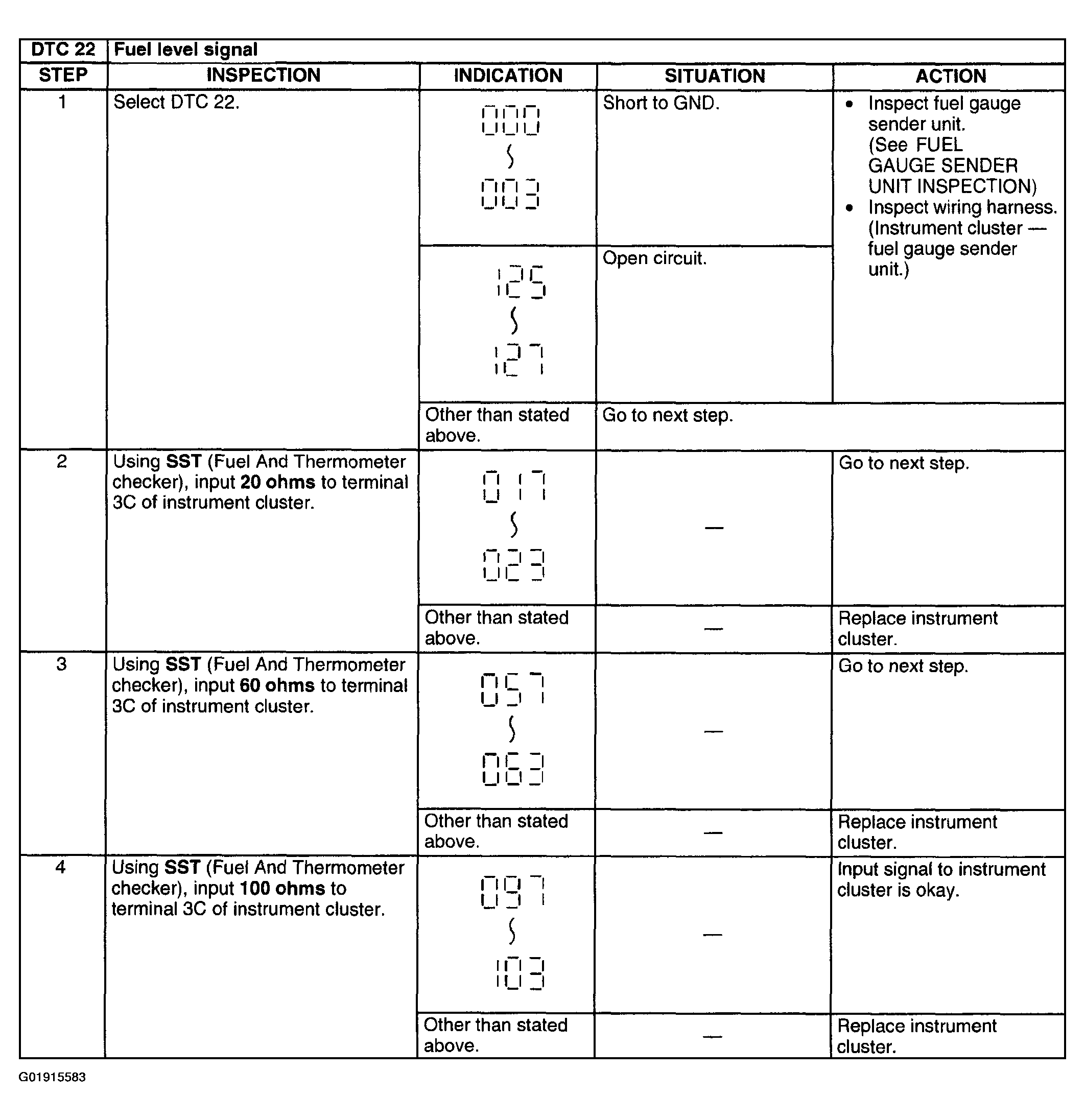

Fig 12: Inspection Procedure - DTC 22

G01915583

Courtesy of MAZDA MOTORS CORP.

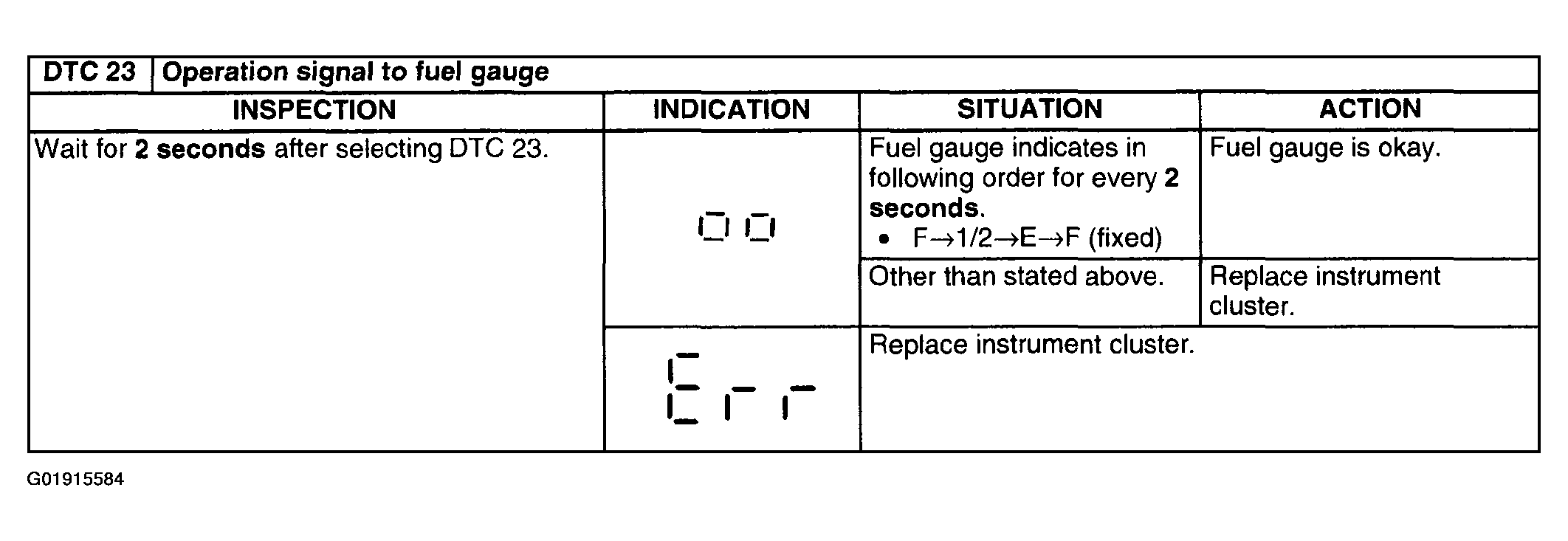

Fig 13: Inspection Procedure - DTC 23

G01915584

Courtesy of MAZDA MOTORS CORP.

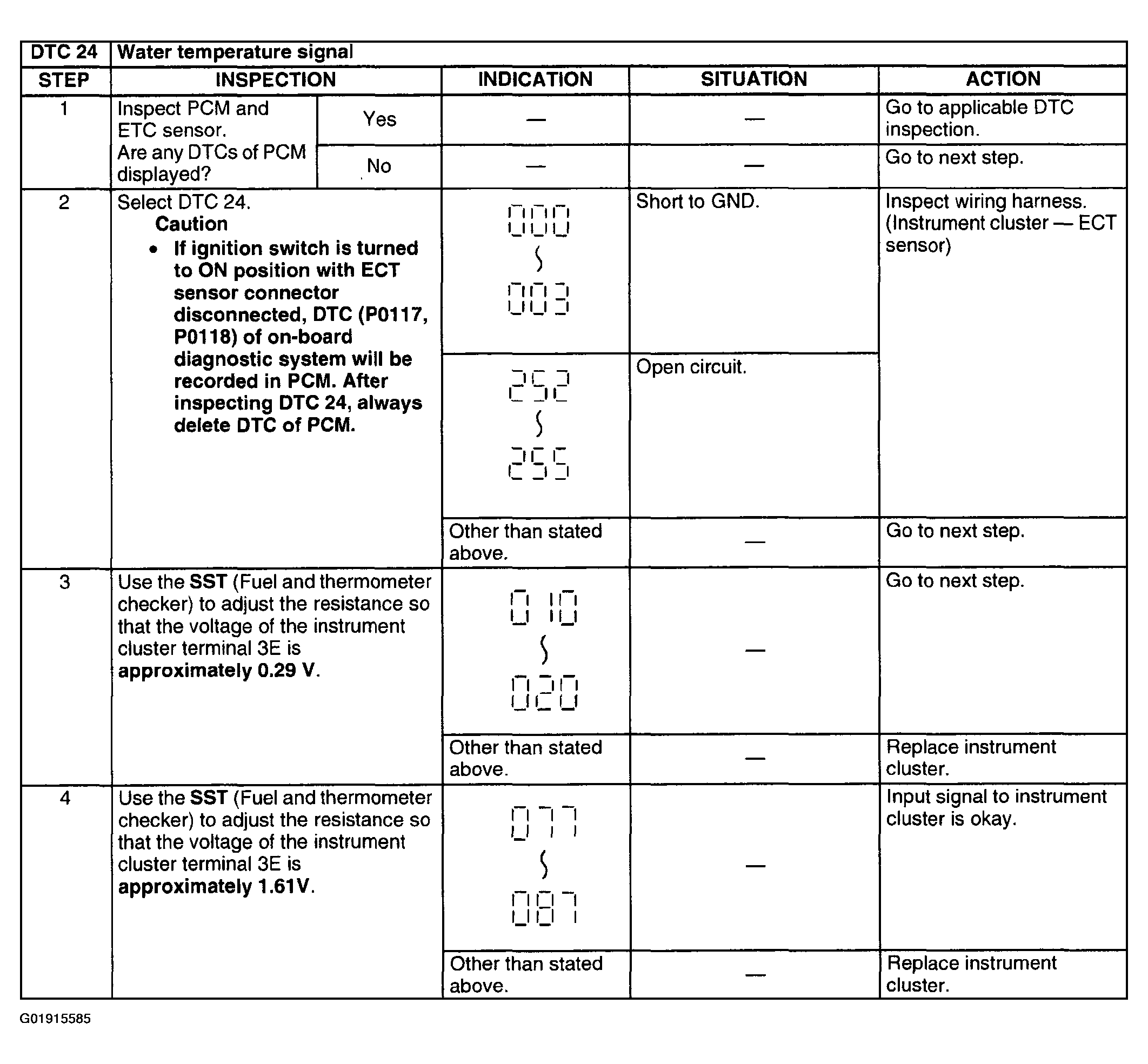

Fig 14: Inspection Procedure - DTC 24

G01915585

Courtesy of MAZDA MOTORS CORP.

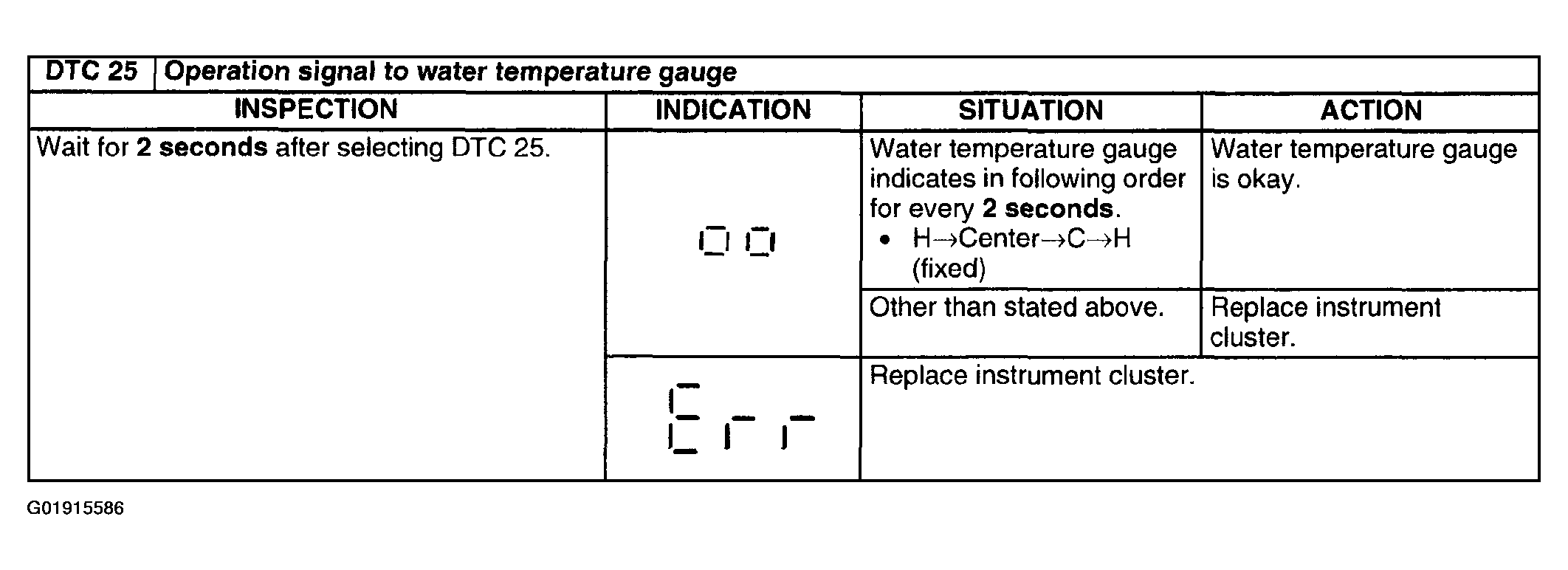

Fig 15: Inspection Procedure - DTC 25

G01915586

Courtesy of MAZDA MOTORS CORP.

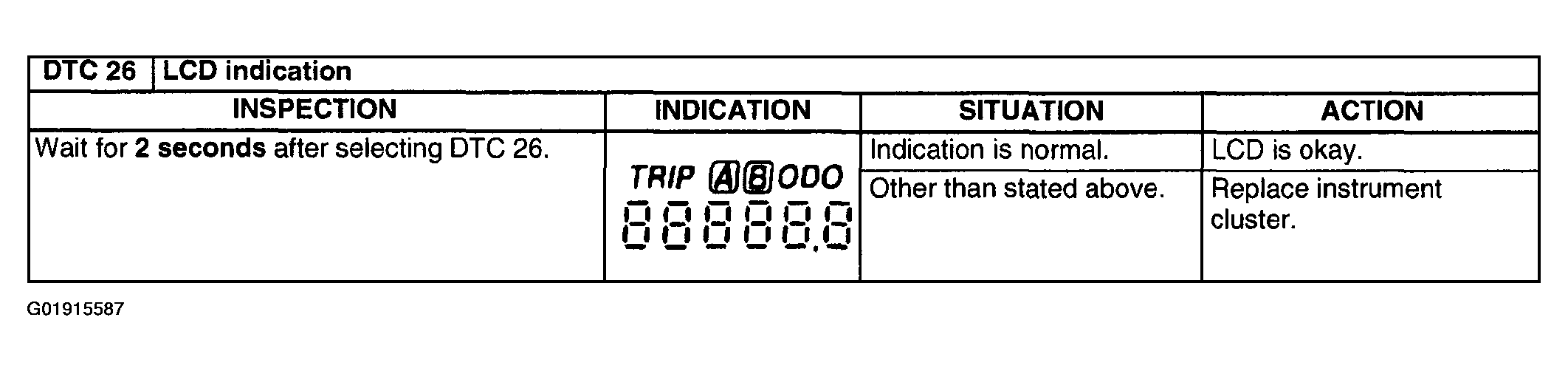

Fig 16: Inspection Procedure - DTC 26

G01915587

Courtesy of MAZDA MOTORS CORP.

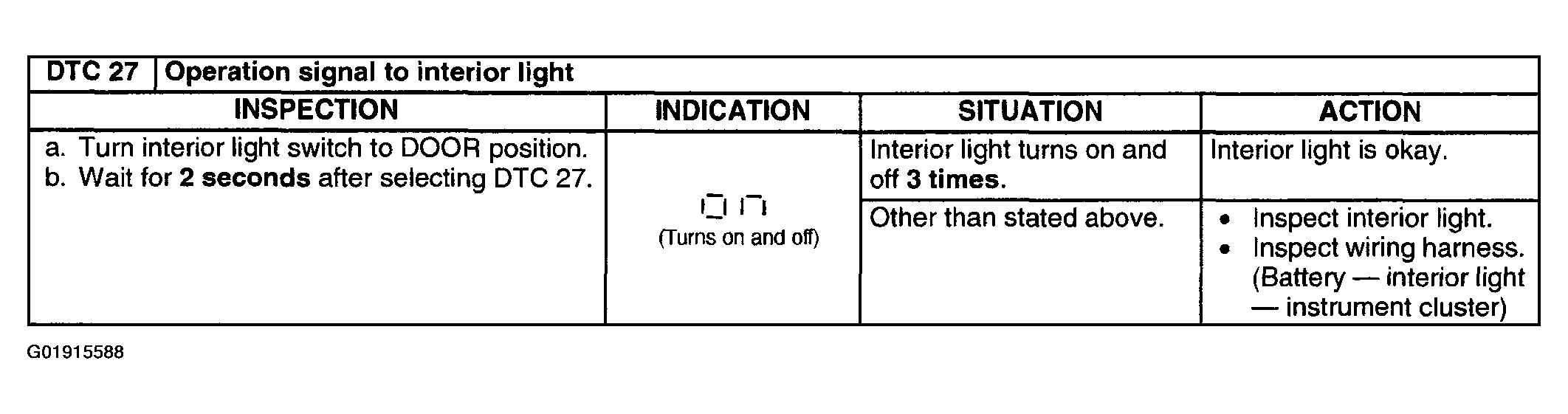

Fig 17: Inspection Procedure - DTC 27

G01915588

Courtesy of MAZDA MOTORS CORP.

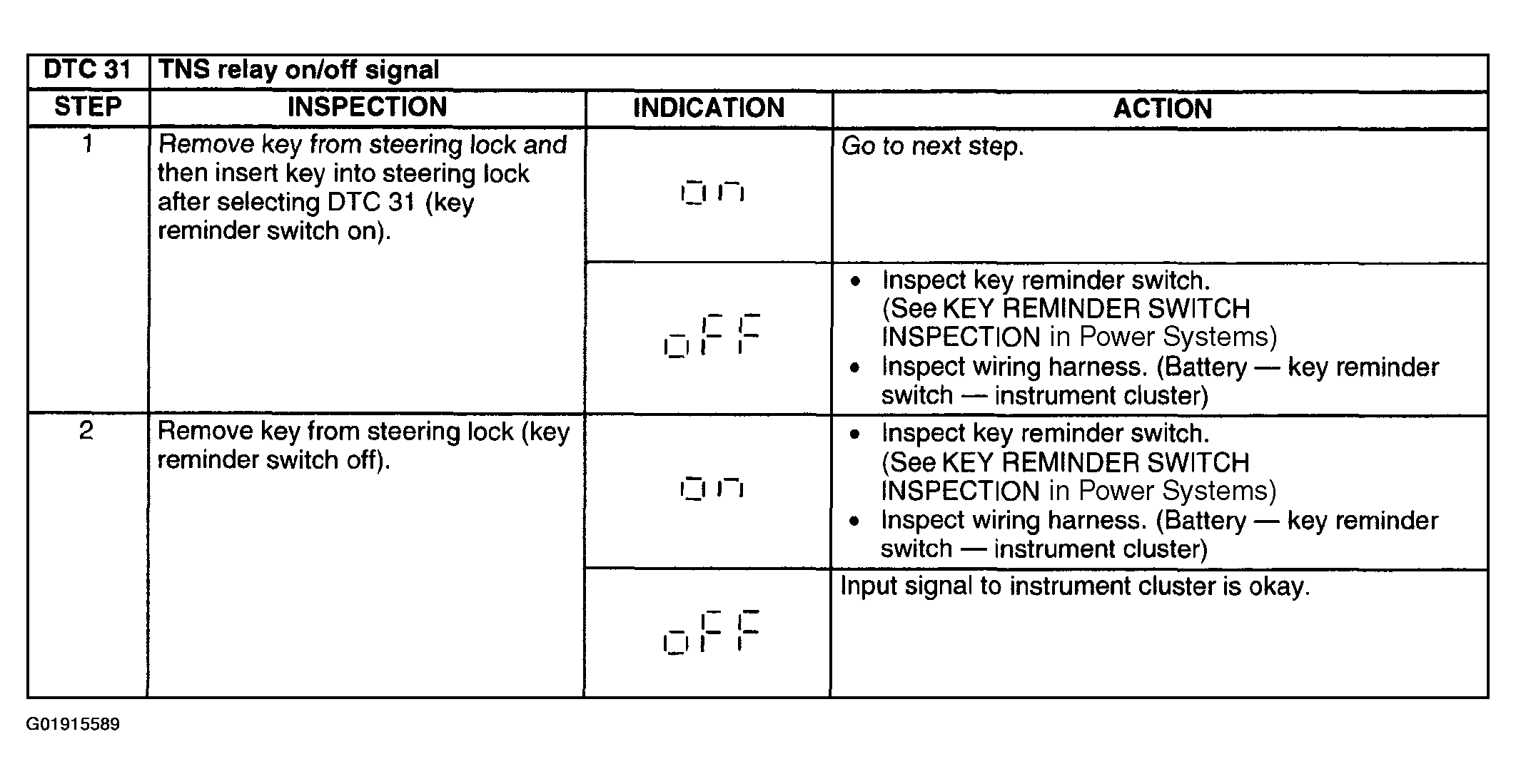

Fig 18: Inspection Procedure - DTC 31

G01915589

Courtesy of MAZDA MOTORS CORP.
