Location Index

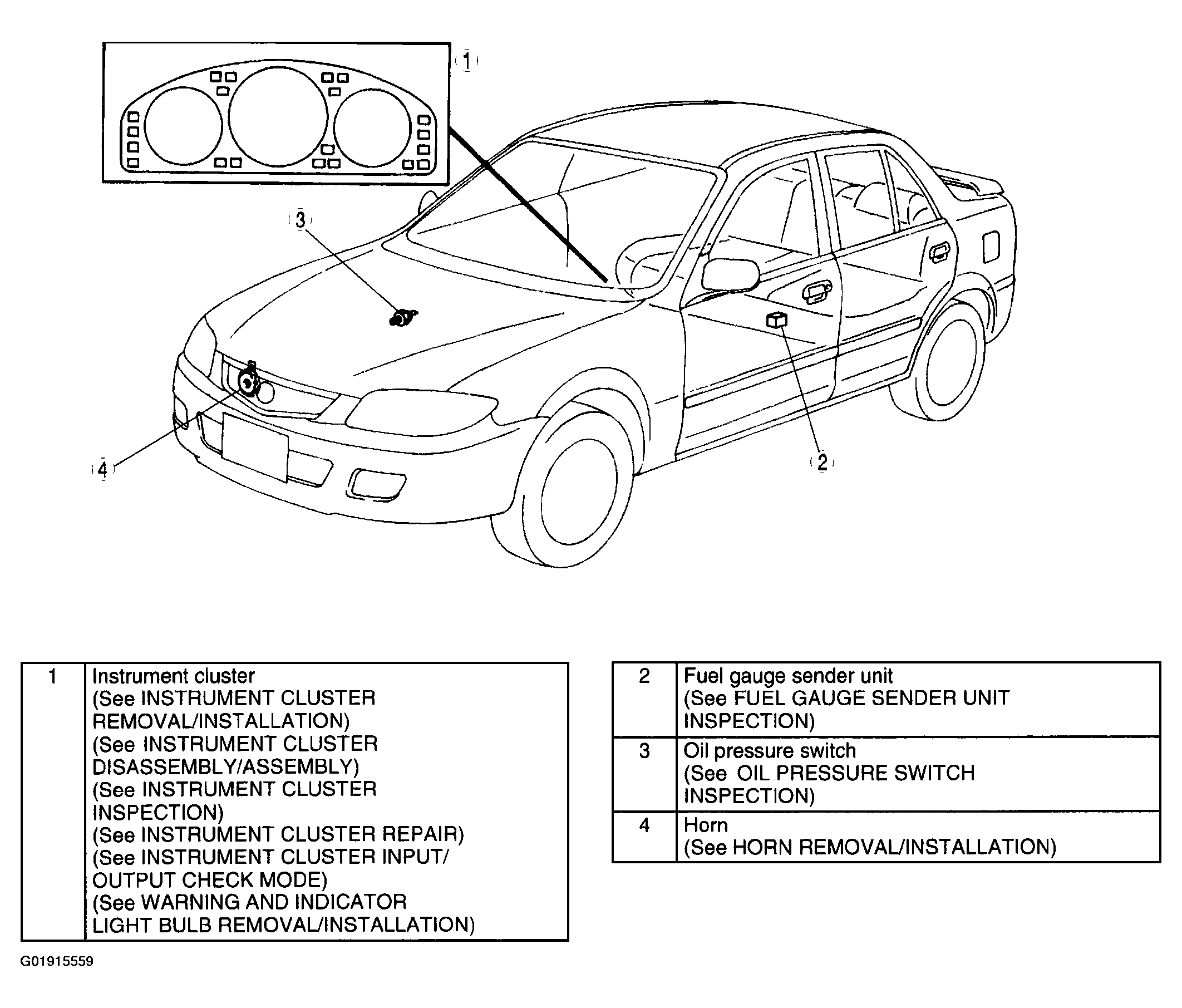

Fig 1: Identifying Instrumentation/Driver Location
G01915559Courtesy of MAZDA MOTORS CORP.
