Home › Mazda › 2003 › Protege5 Automatic › Repair and Diagnosis › Suspension › Wheel Alignment › Rear Wheel Alignment › Specification (Unloaded)

Specification (Unloaded)

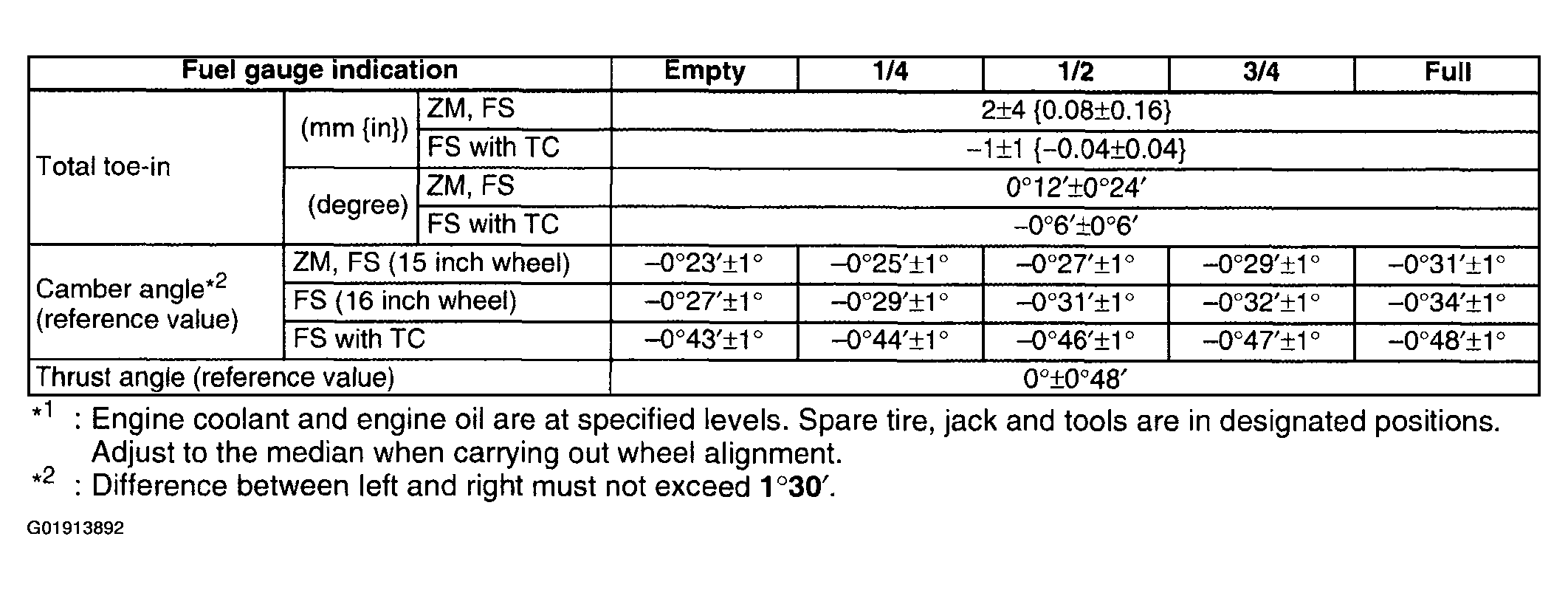

Fig 1: Rear Wheel Alignment Specifications (Unloaded)
G01913892Courtesy of MAZDA MOTORS CORP.
