Suspension Technical Data
Suspension Technical Data

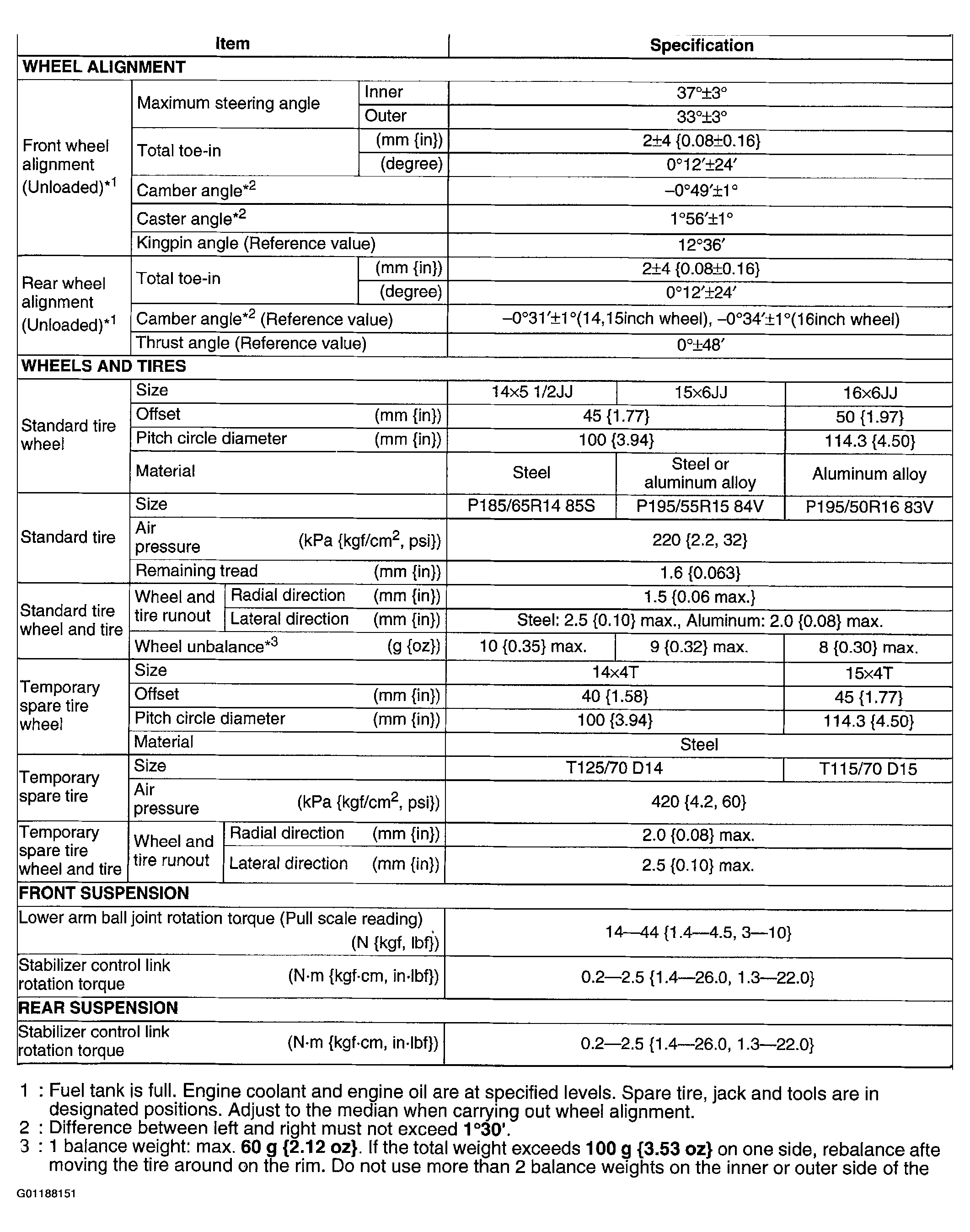

Fig 1: Suspension Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
