Upper Module Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the audio unit. (See AUDIO UNIT REMOVAL .)
Remove in the order indicated in the figure.

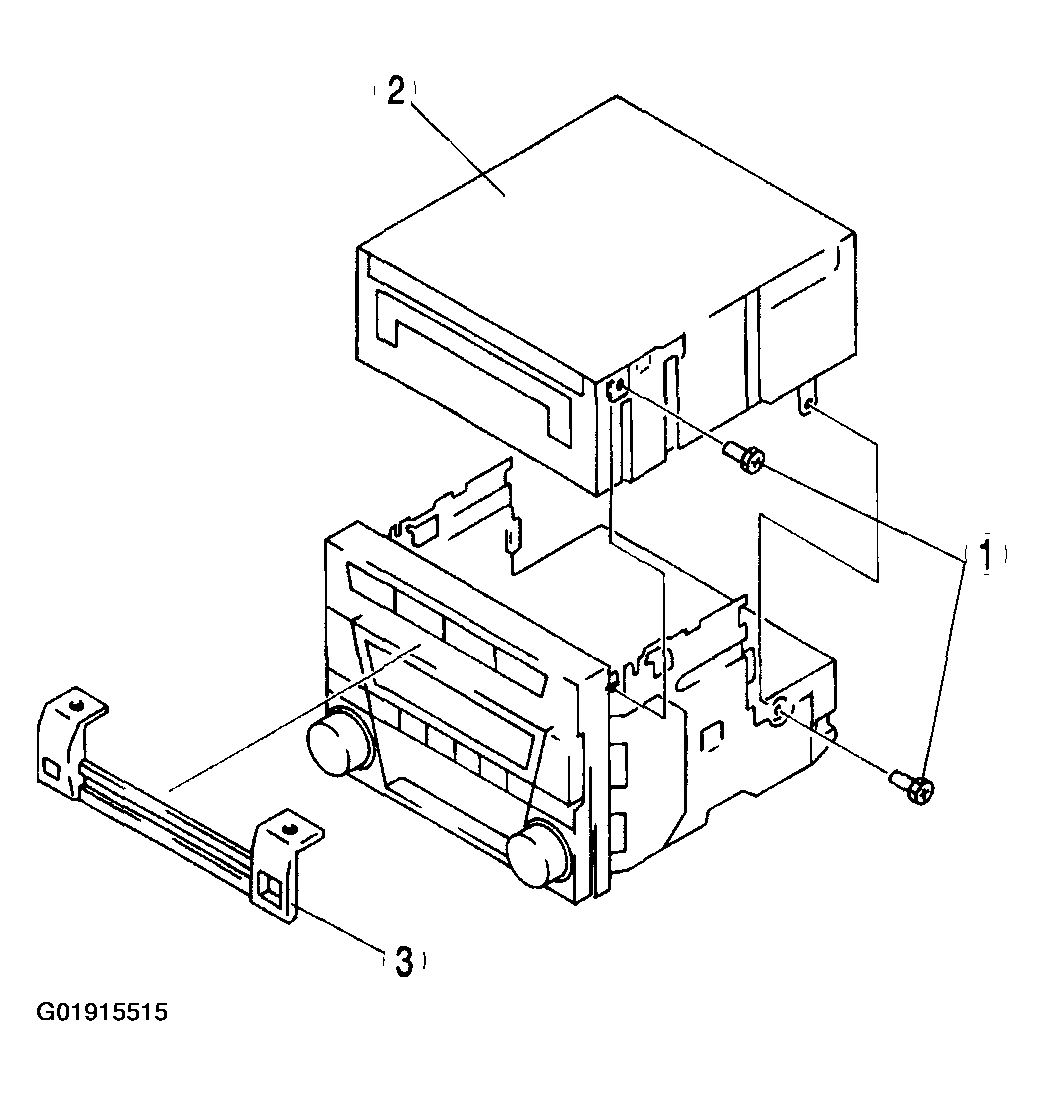

Fig 1: Upper Module Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Upper Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
