Brake Switch Inspection

Disconnect the brake switch connector.
Inspect for continuity between the terminals of the brake switch connector using the ohmmeter.
- If not as specified, replace the brake switch.

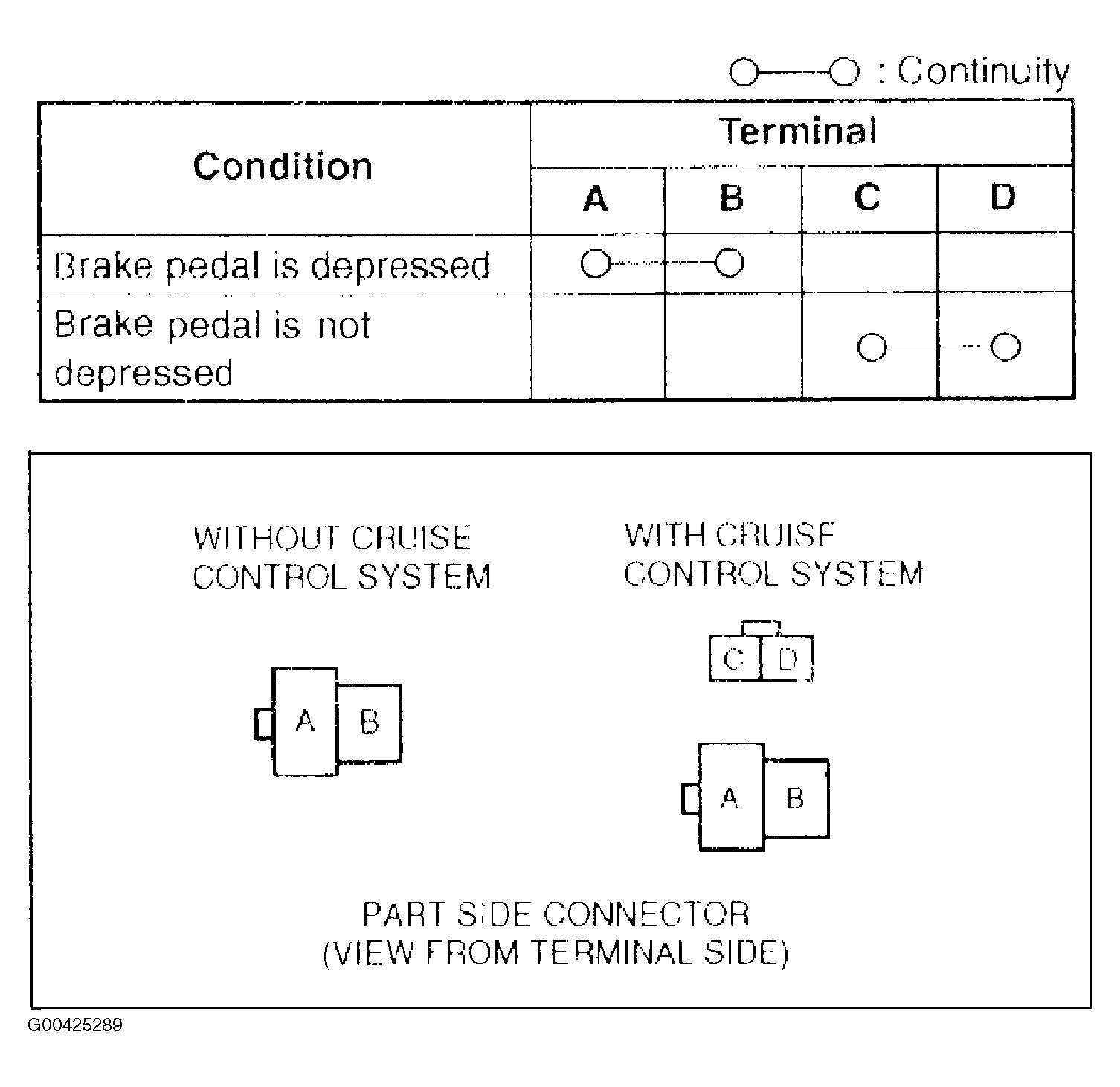

Fig 1: Brake Switch Continuity Inspection
Courtesy of MAZDA MOTORS CORP.
