Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a tape-wrapped Flathead screwdriver between the front door trim and the door lock switch and push the clip to remove the door lock switch.
  3. Disconnect the door lock switch connector.

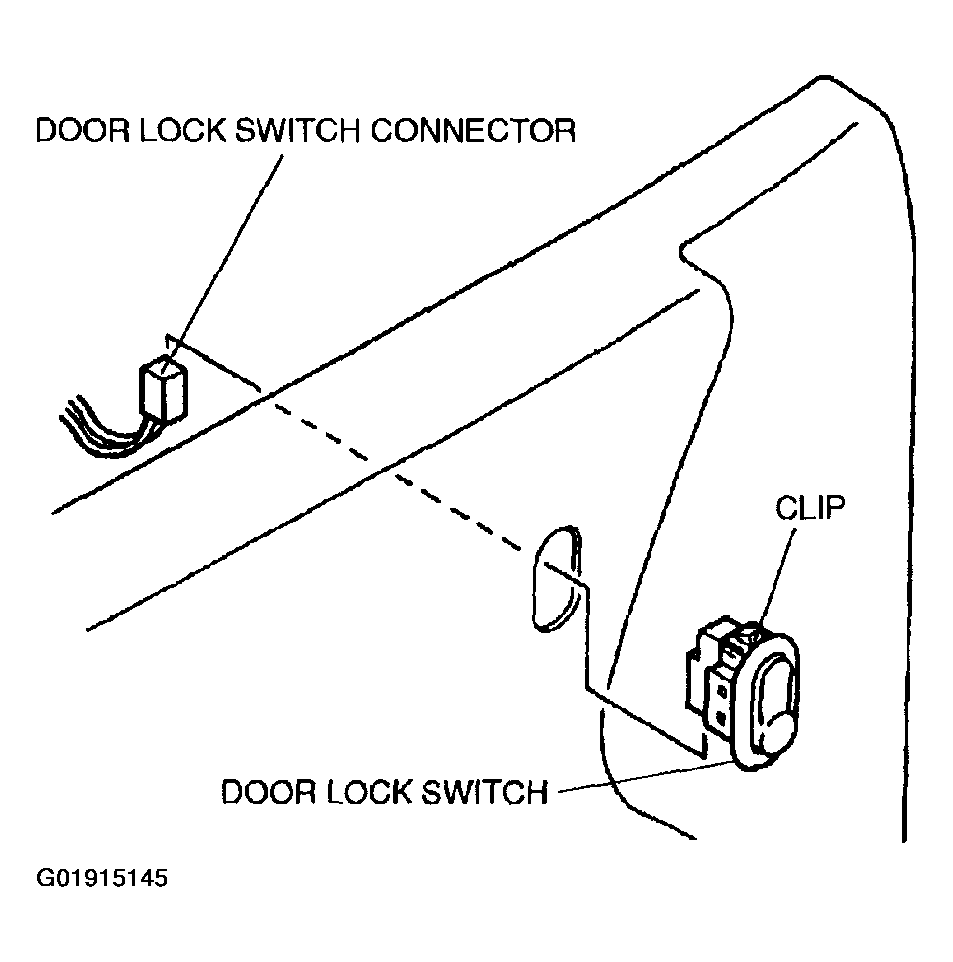

    Fig 1: Disconnecting Door Lock Switch Connector
    G01915145Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
