Front Door Lock And Opener Removal/Installation

  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the illustration.
    Fig 1: Front Door Lock And Opener Removing Order
    G01915127Courtesy of MAZDA MOTORS CORP.

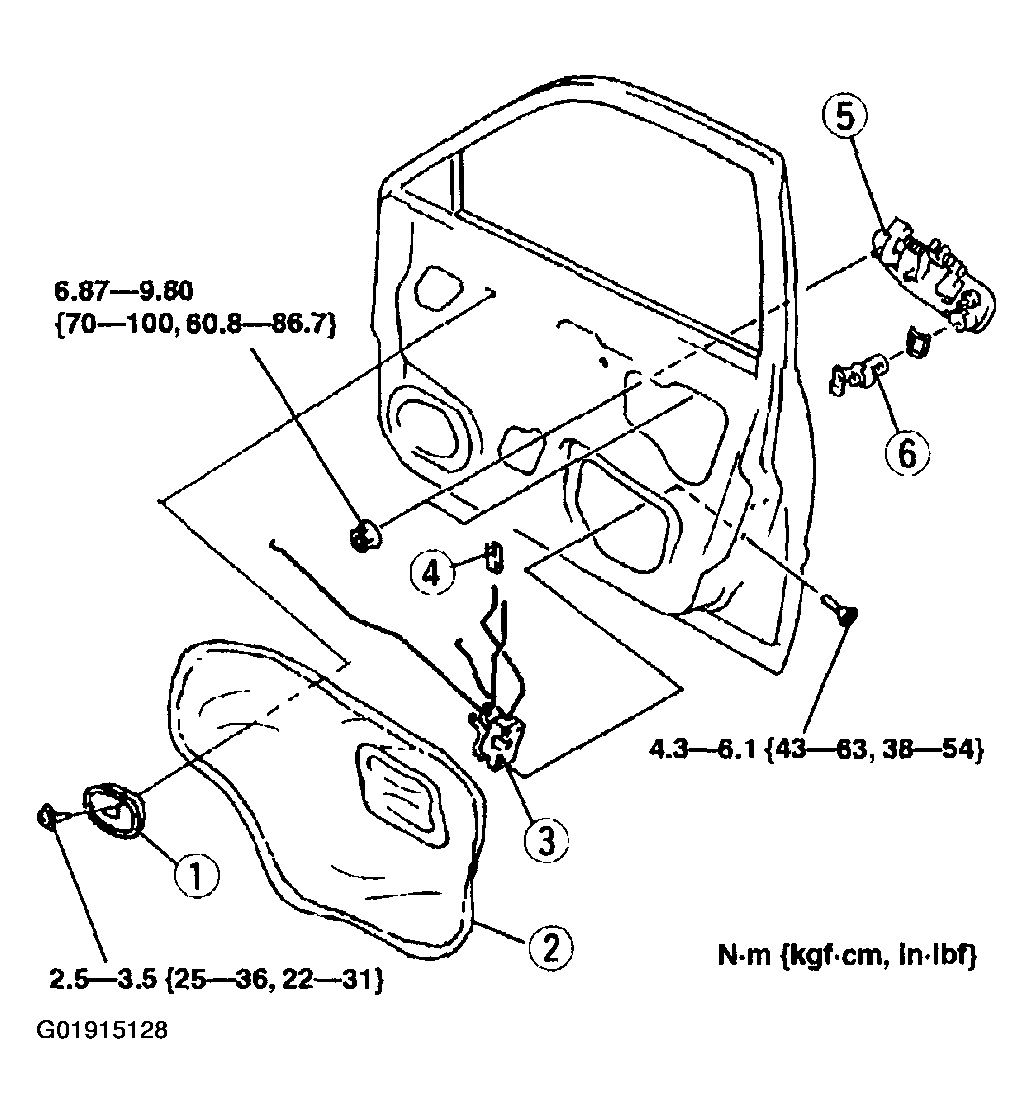

    Fig 2: Removing Front Door Lock And Opener Components
    G01915128Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
