Hood Lock And Opener Removal/Installation

Remove in the order indicated in the table.

Fig 1: Removing Order Table
Courtesy of MAZDA MOTORS CORP.

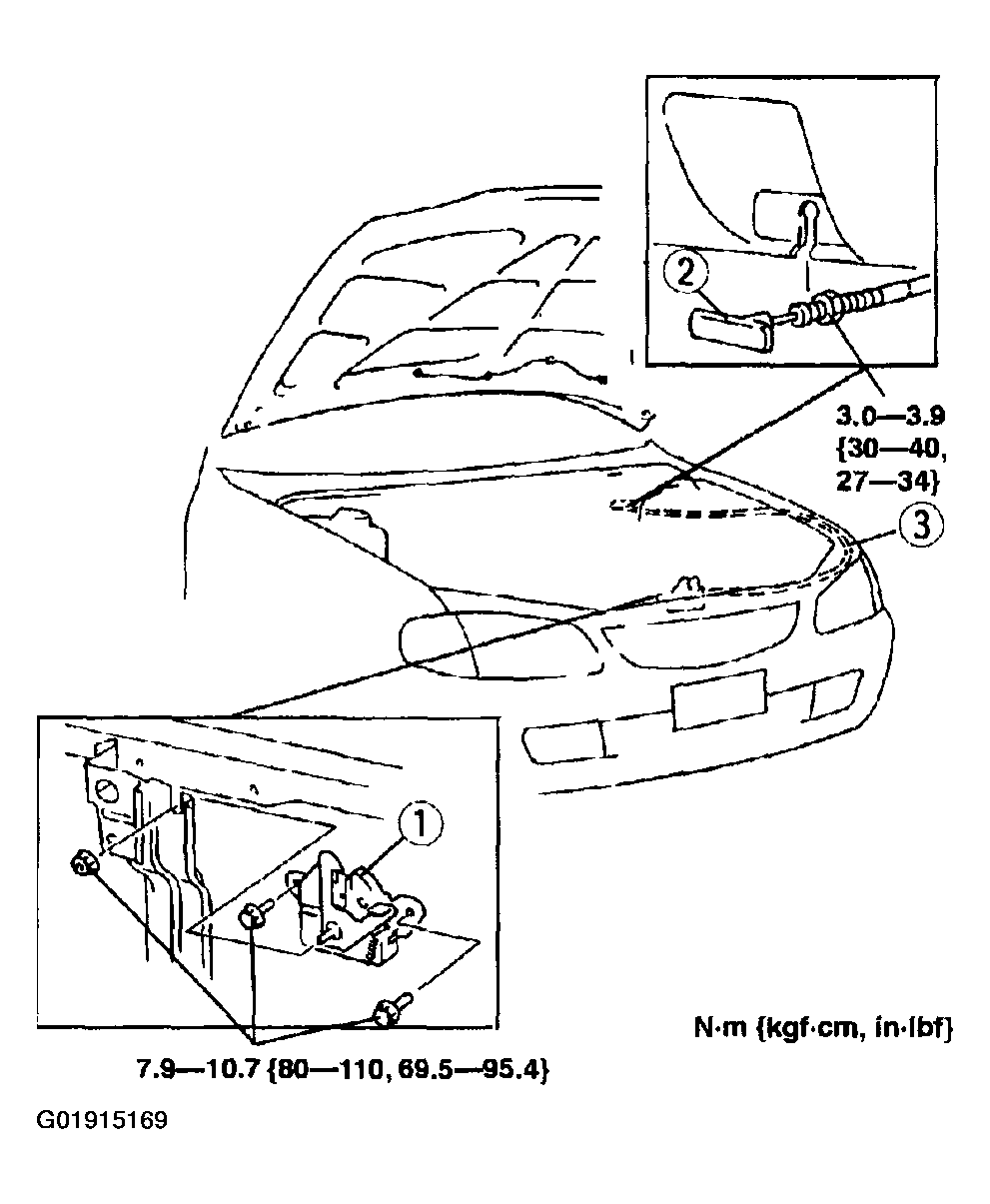

Fig 2: Removing Hood Lock And Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
