Protege5 Standard
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Symptom Troubleshooting (Keyless Entry System)
›
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

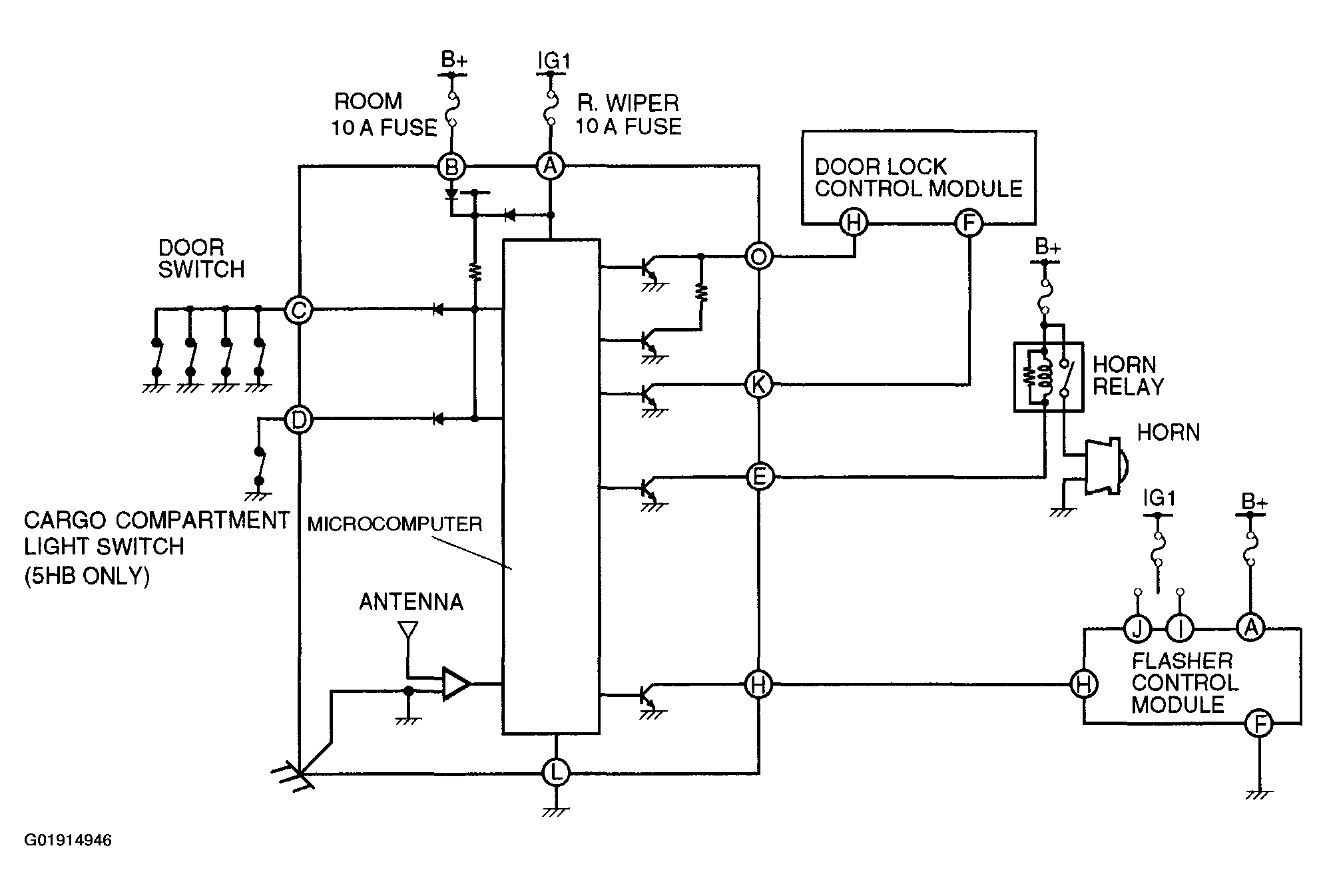

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
