Console Adjustment
CAUTION:
- Take care to install the console and the center panel so that there is no interference which may cause noise.

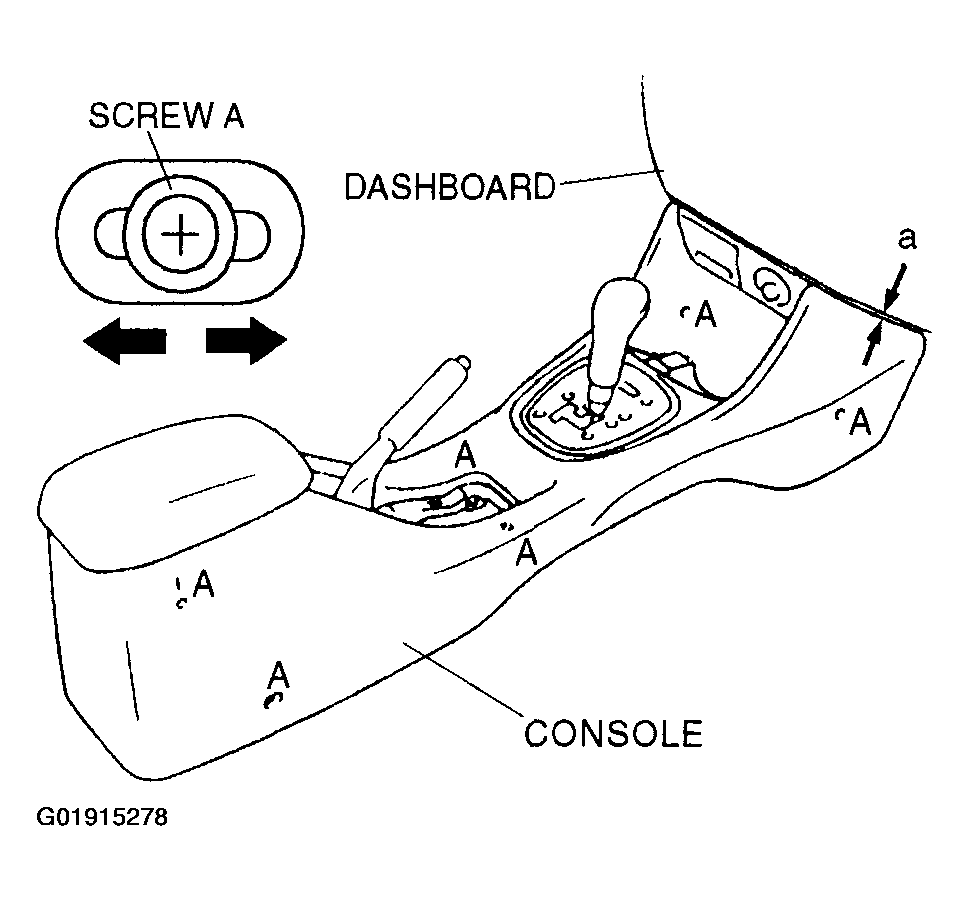

- Loosen screws A.
- Slide the console indicated by the arrow and measure the gap between the console and the dashboard.
Clearance
A: 0.2-1.8 mm (0.0008-0.07 in)
- Tighten screws A.
