CMP Sensor Connector End View (Miata)
CMP Sensor Connector End View (Miata)

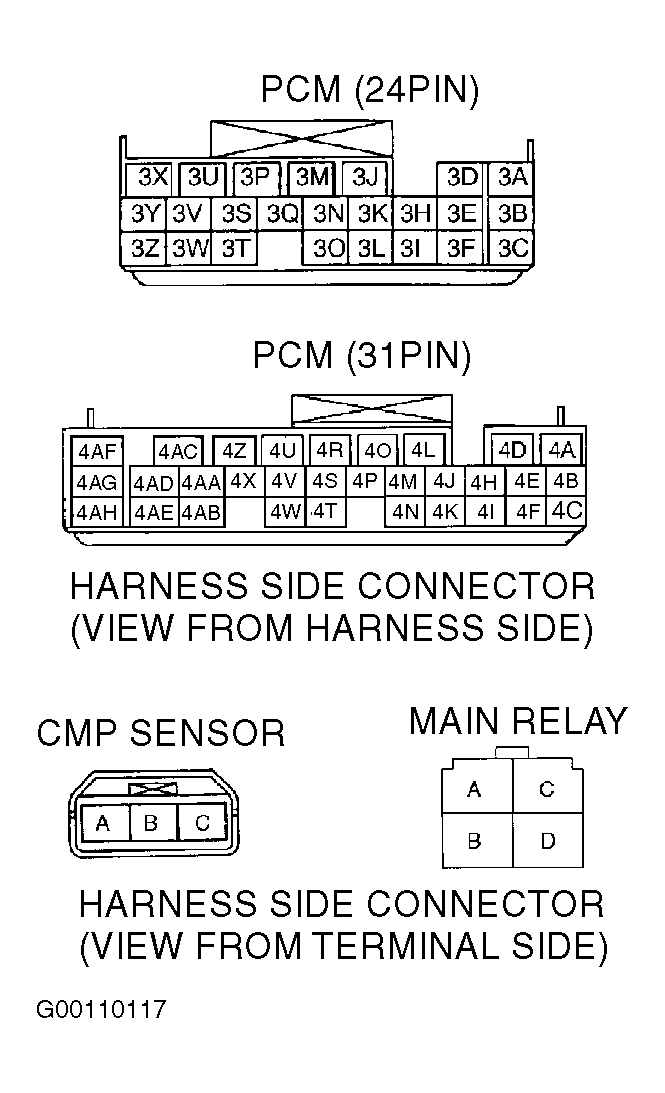

Fig 1: CMP Sensor Connector End View (Miata)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
