Hazard Warning Switch Connector End View
Hazard Warning Switch Connector End View

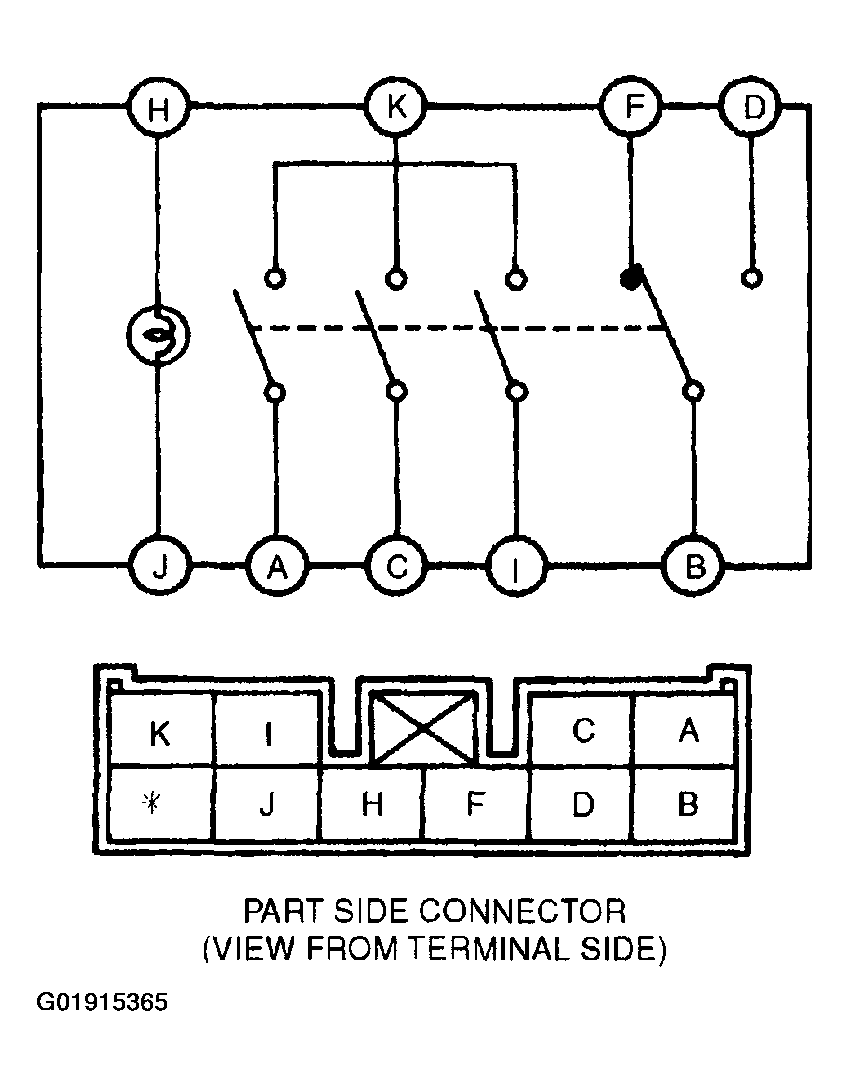

Fig 1: Hazard Warning Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
