Interior And Map Light Connector End View

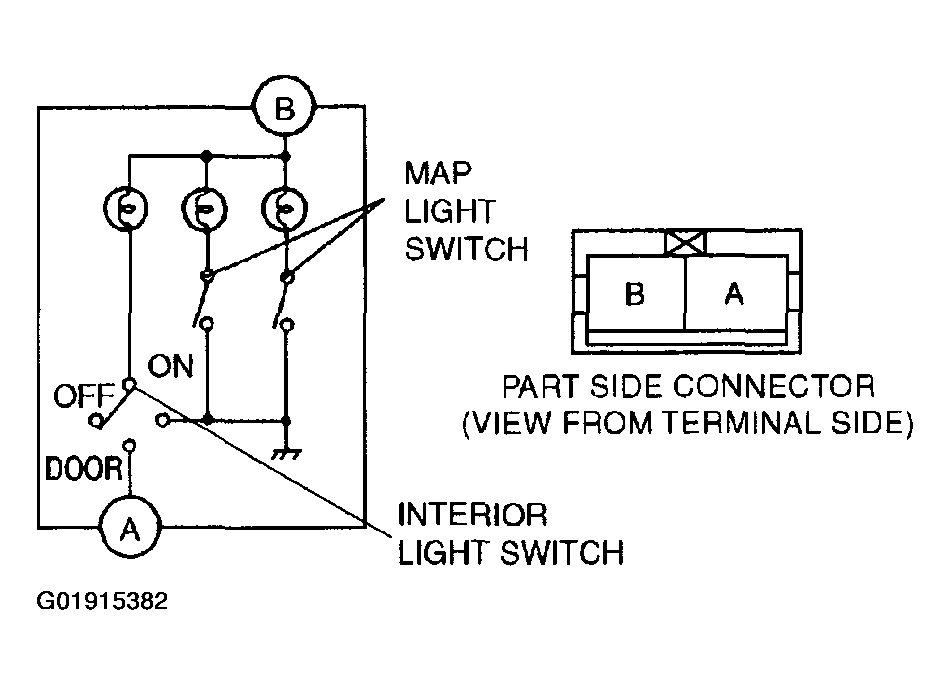

Fig 1: Interior And Map Light Connector End View
G01915382Courtesy of MAZDA MOTORS CORP.
