Instrument Panel Fuse Block
Instrument Panel Fuse Block
NOTE:
Instrument panel fuse block is located under driver's side of instrument panel. See
Fig 1
.
Fig 1: Locating Instrument Panel Fuse Block
Courtesy of MAZDA MOTORS CORP.

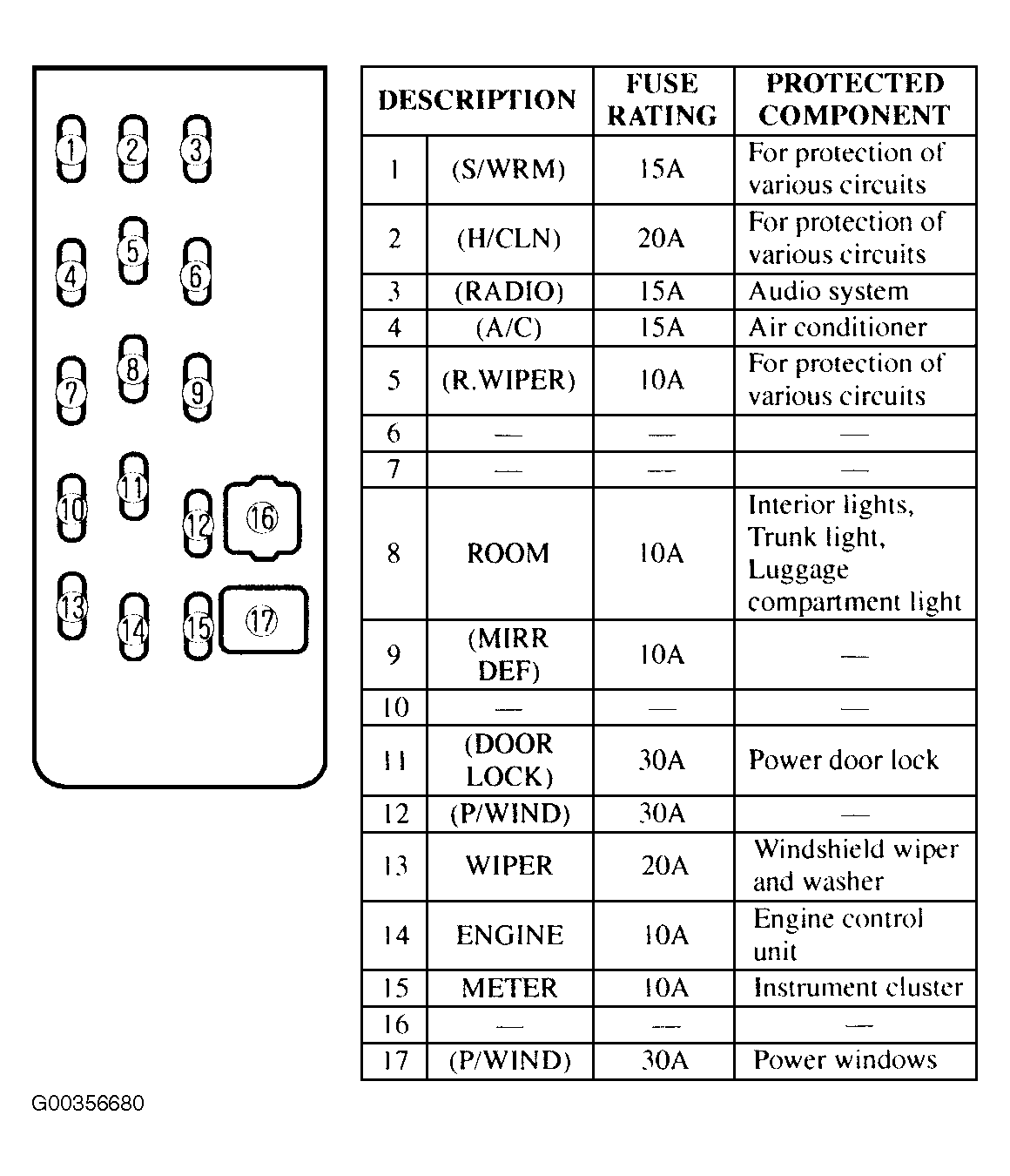

Fig 2: Instrument Panel Fuse Box Legend
Courtesy of MAZDA MOTORS CORP.
