Wiper And Washer Switch Connector End View

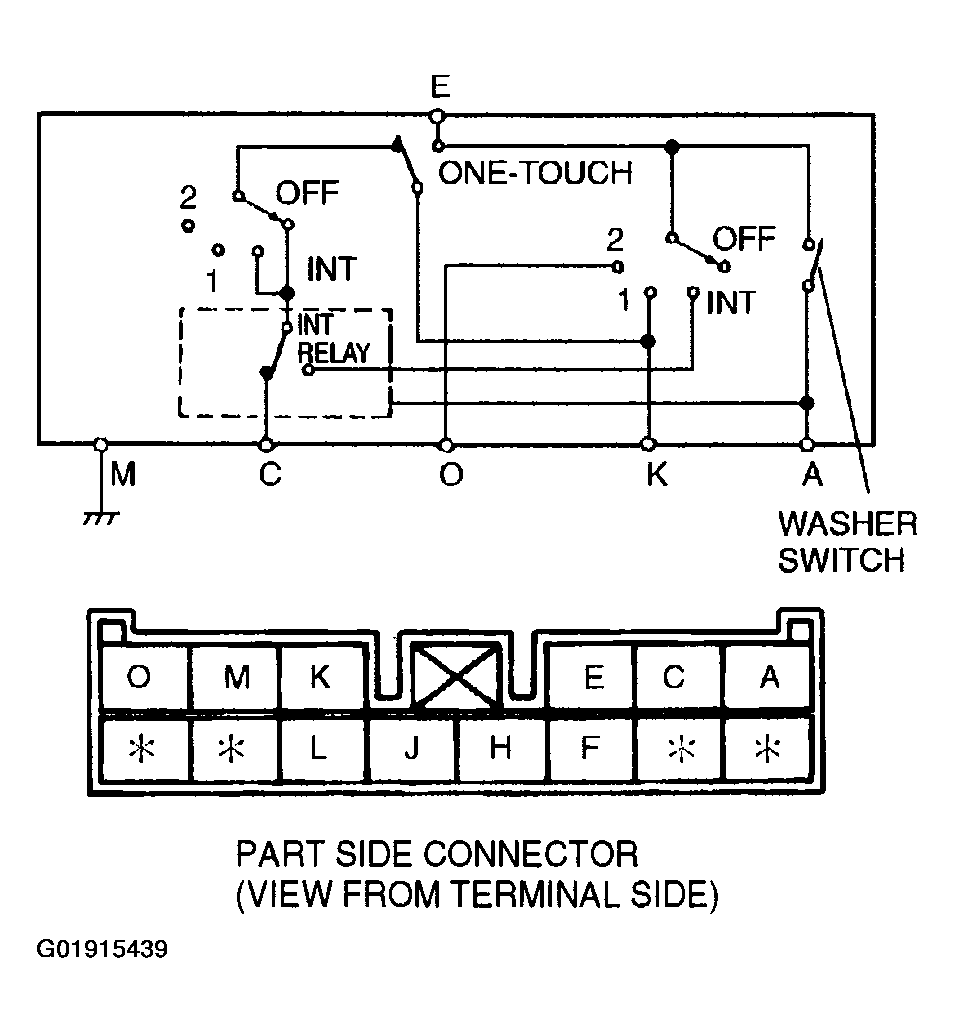

Fig 1: Wiper And Washer Switch Connector End View
G01915439Courtesy of MAZDA MOTORS CORP.

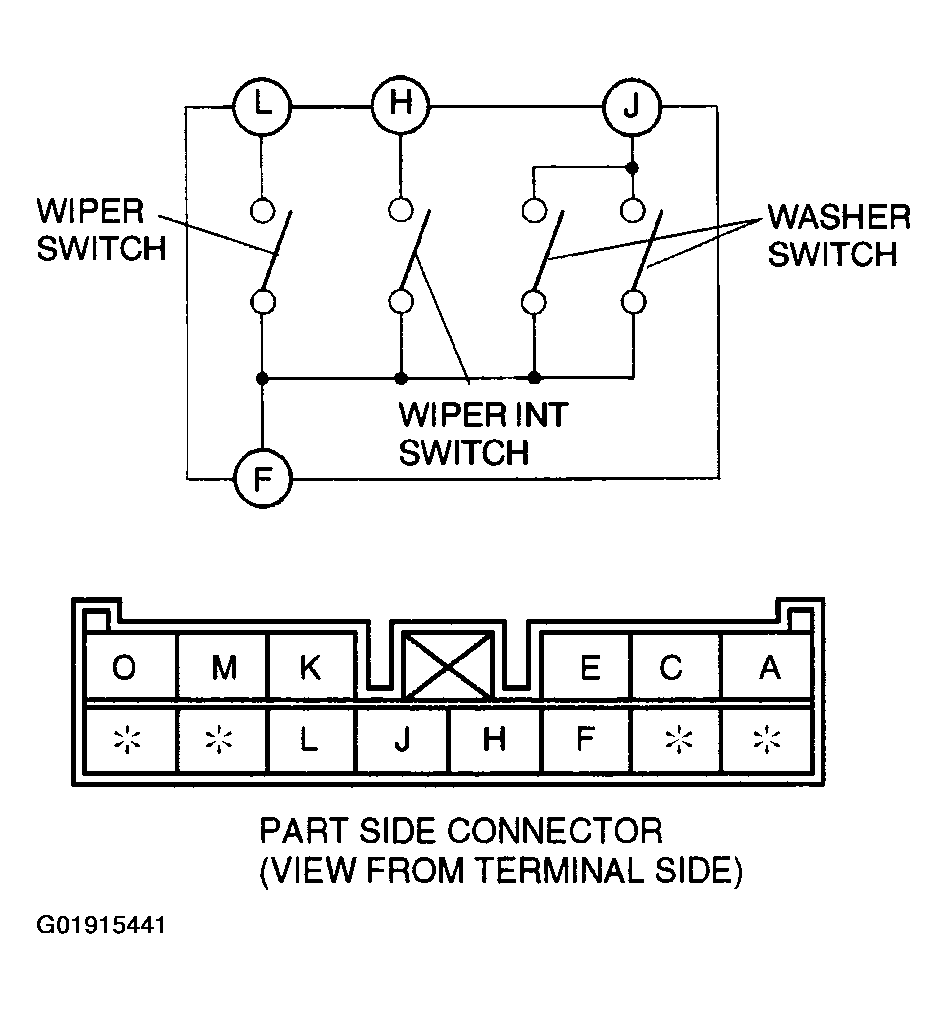

Fig 1: Wiper And Washer Switch Connector End View
G01915441Courtesy of MAZDA MOTORS CORP.
