Rear Seat Belt Removal/Installation: 4SD

  1. Remove the rear package trim.
  2. Remove the bolts, then remove the rear seat belt.
  3. Install in the reverse order of removal.

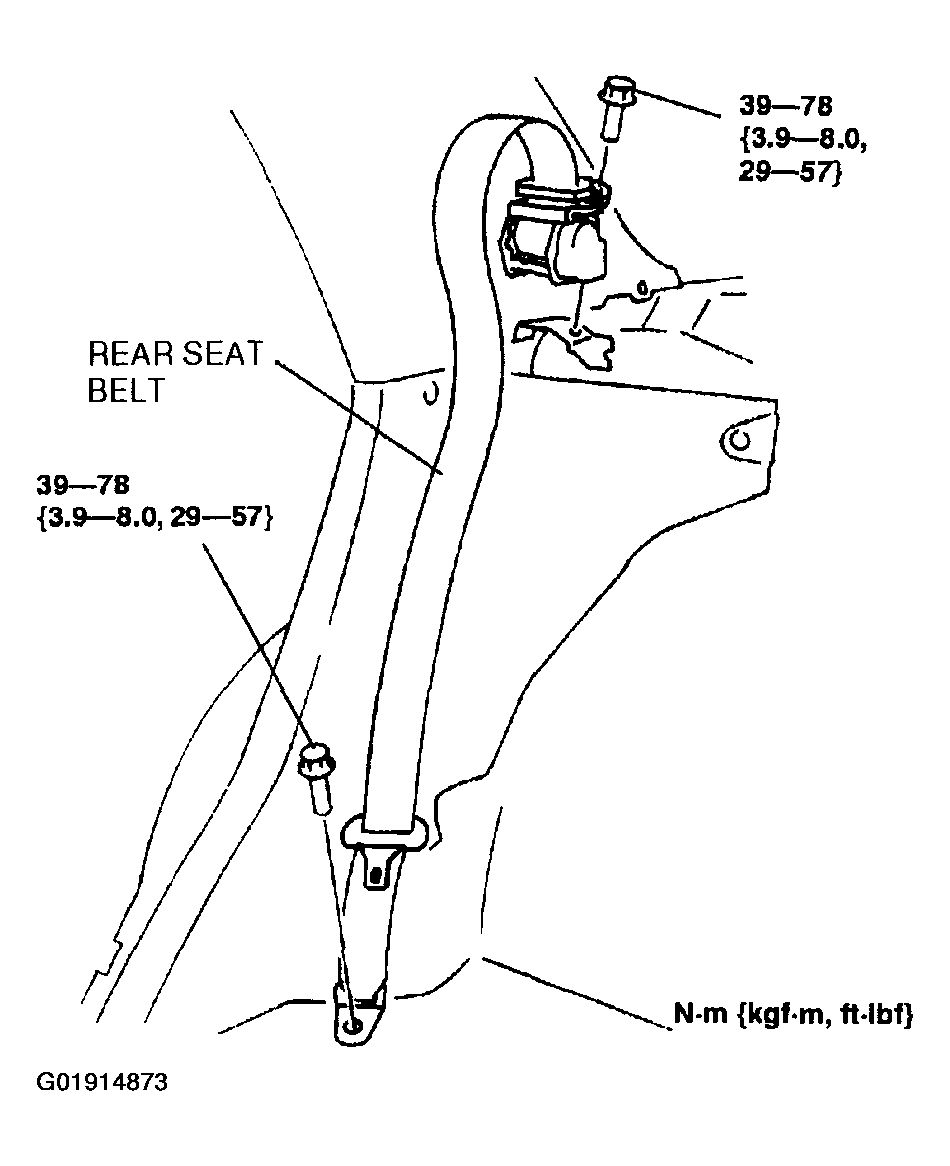

    Fig 1: Removing Rear Seat Belt (4SD)
    G01914873Courtesy of MAZDA MOTORS CORP.
