Inner Guide Disassembly Note

  1. Set the SSTs  into the valve side.
  2. Install the SST  to the gear housing.
  3. Press the oil seal and inner guide out.

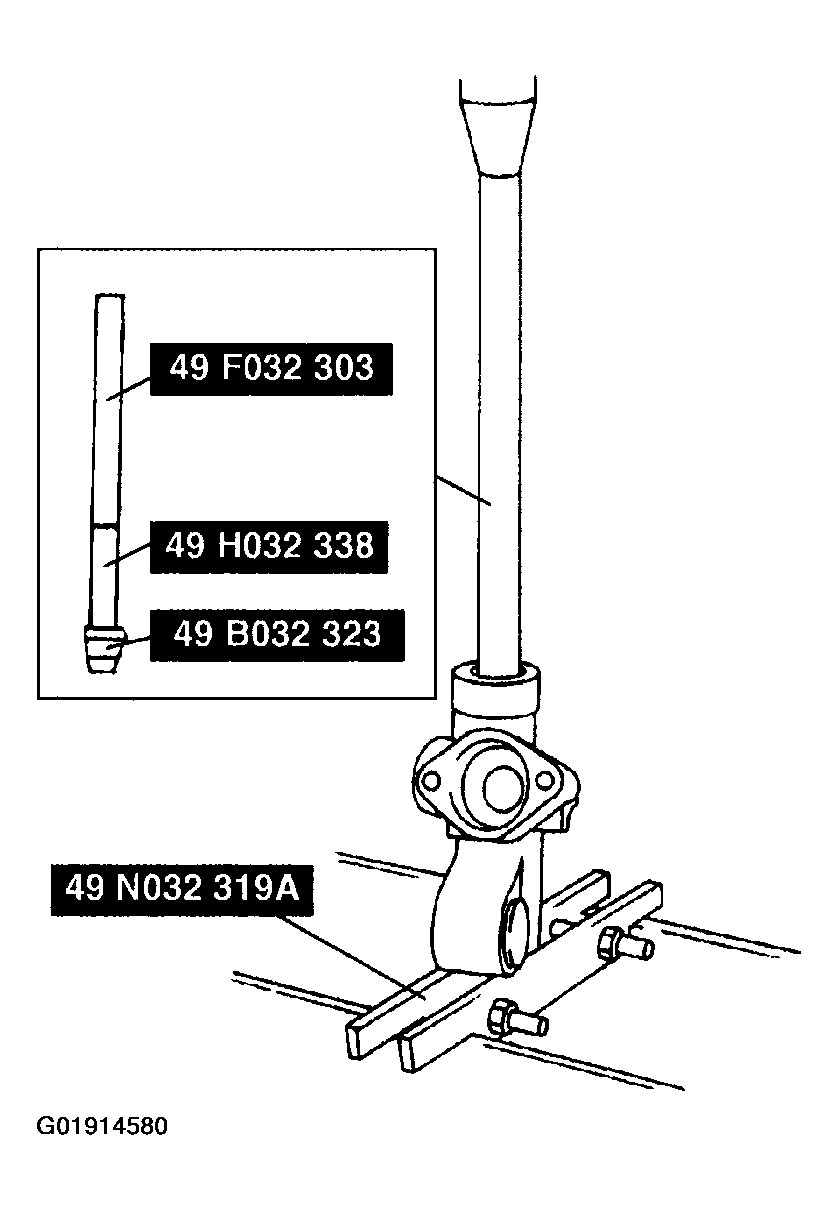

    Fig 1: Disassembling Inner Guide
    G01914580Courtesy of MAZDA MOTORS CORP.
