Power Steering Oil Pump (FS, FS With TC) Disassembly/Assembly

NOTE:

The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

Disassemble in the order indicated in the figure.

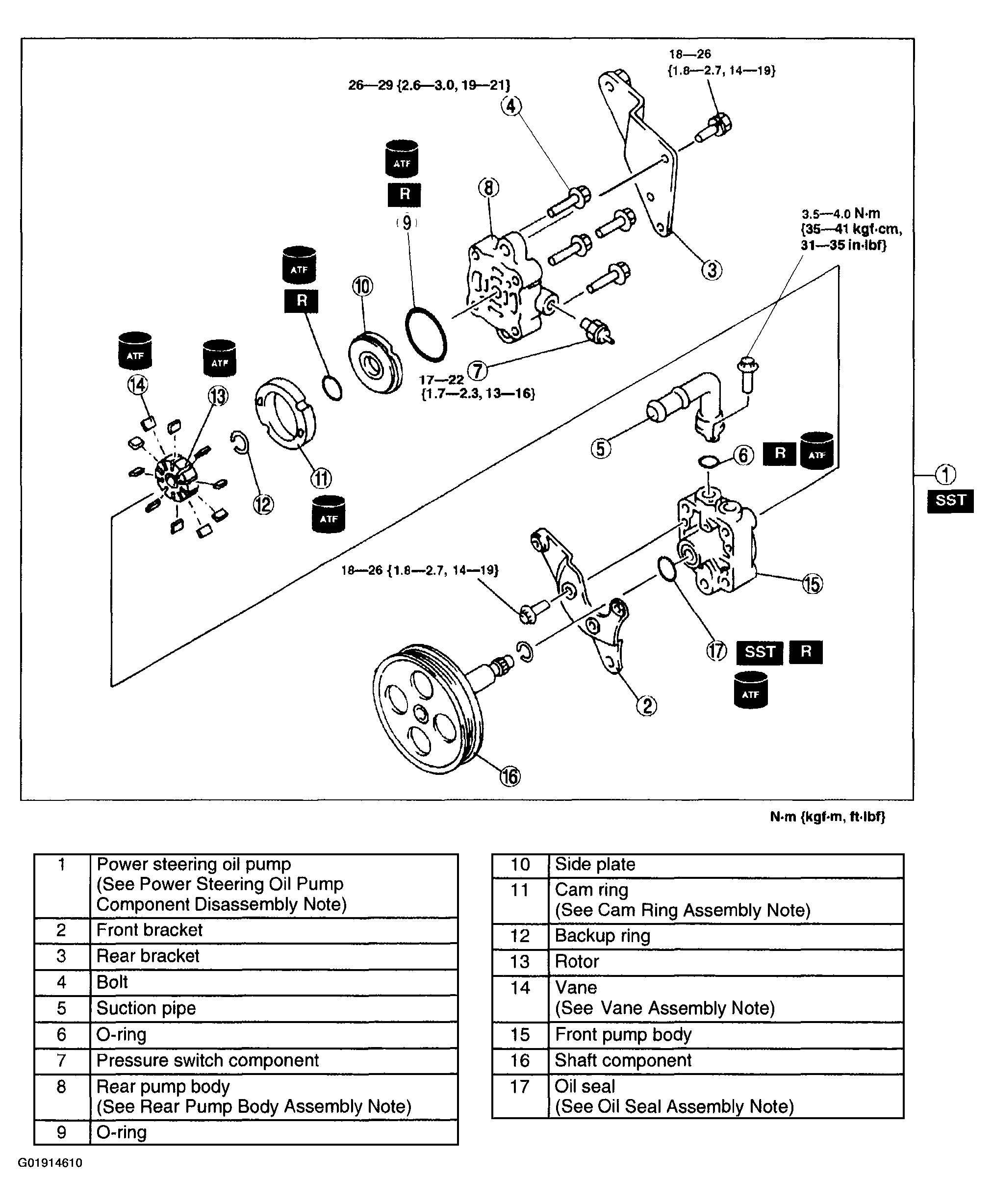

Fig 1: Disassembling /Assembling Power Steering Oil Pump - FS, FS With TC
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
