Power Steering Oil Pump Removal/Installation

1. Remove in the order indicated in the figure.

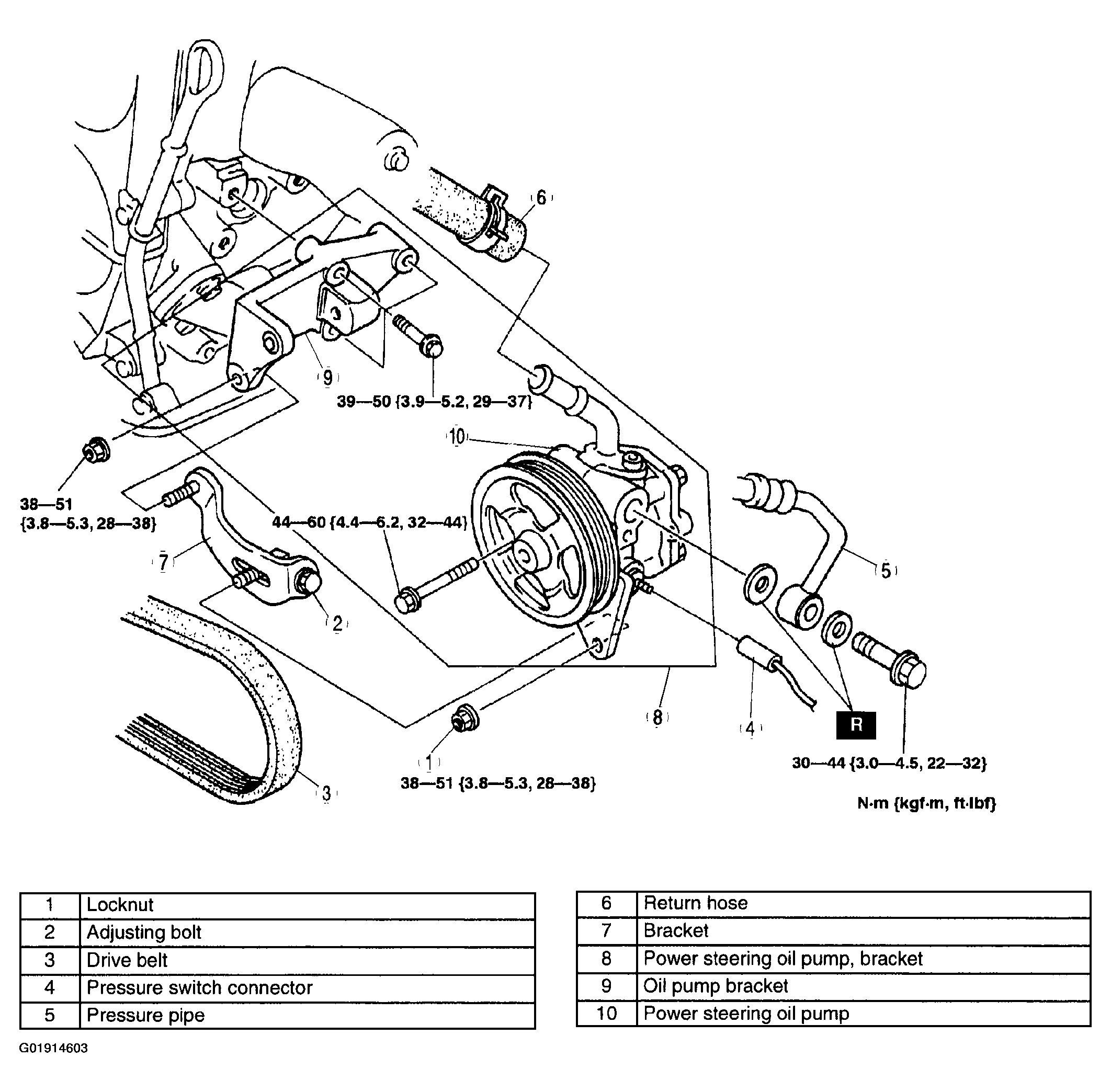

   Fig 1: Removing/Installing Power Steering Oil Pump - ZM

   Courtesy of MAZDA MOTORS CORP.
2. Install in the reverse order of removal.
3. Adjust the drive belt. (See DRIVE BELT ADJUSTMENT (ZM) for Canadian.) (See DRIVE BELT ADJUSTMENT [FS] for US.)

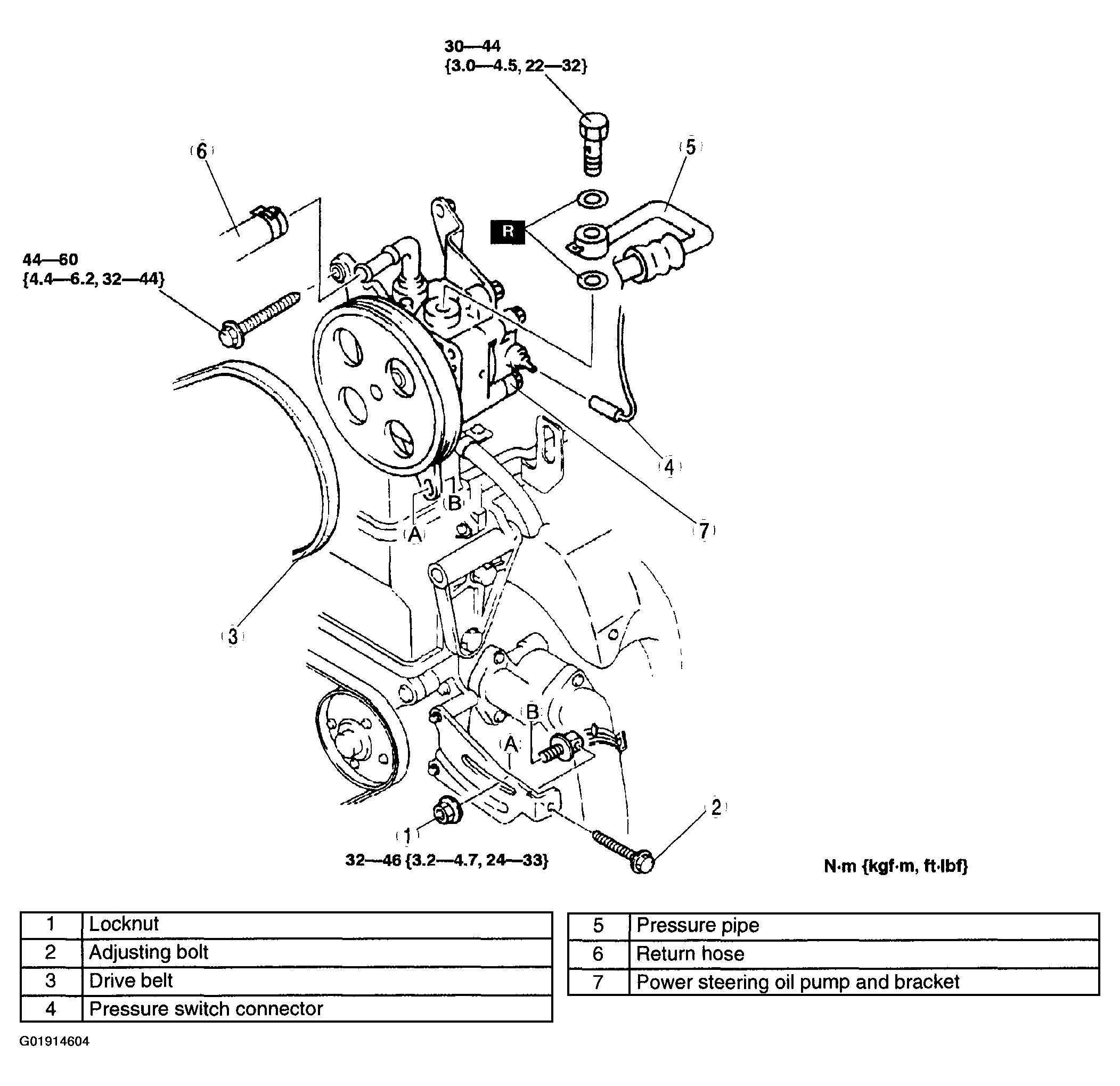

Fig 2: Removing /Installing Power Steering Oil Pump - FS, FS With TC

Courtesy of MAZDA MOTORS CORP.
