Transmission/Transaxle Technical Data

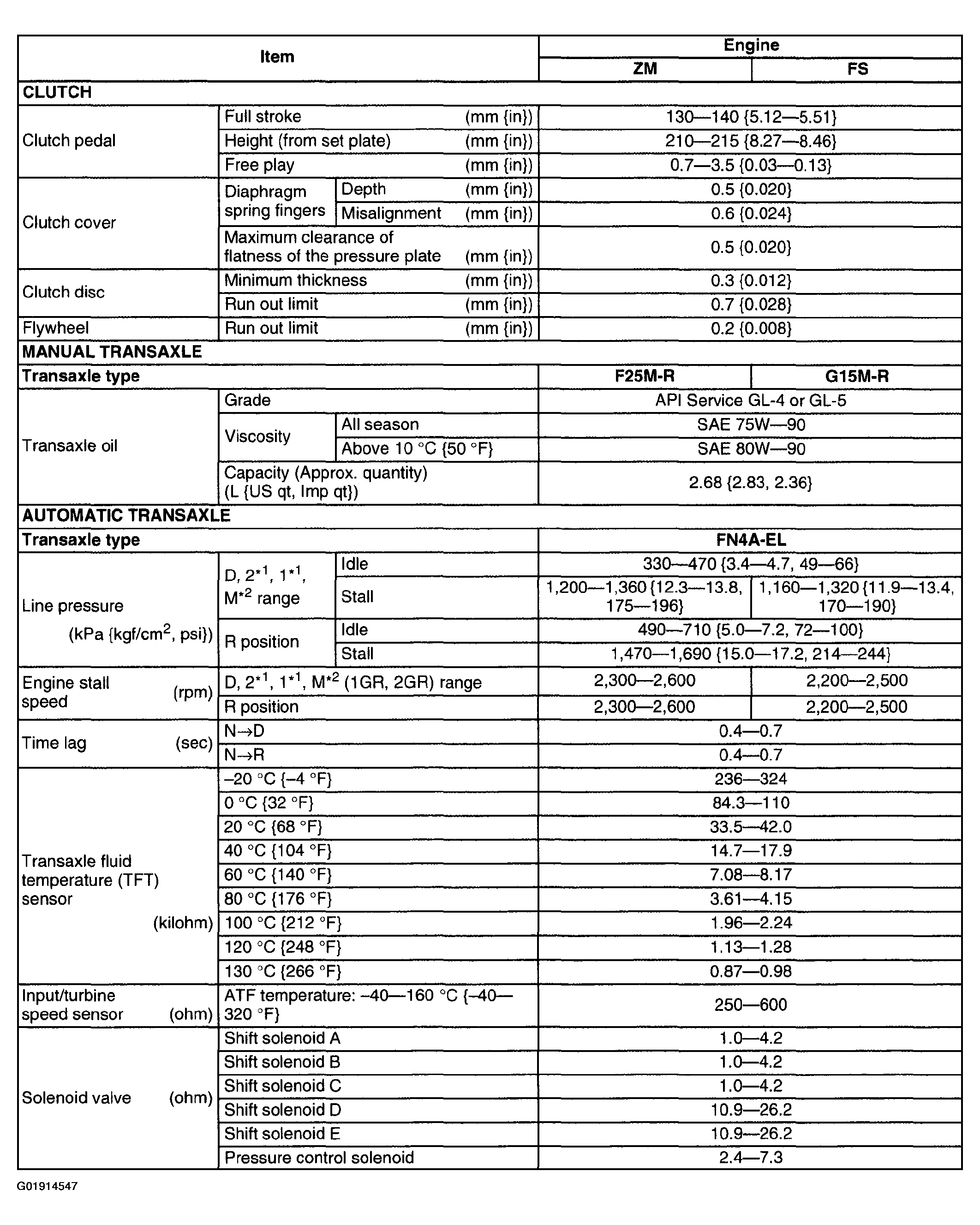

Fig 1: Transmission/Transaxle Technical Data Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Transmission/Transaxle Technical Data Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
