Assembly Note

NOTE:

Whenever a bearing has been removed, a new bearing must be installed.

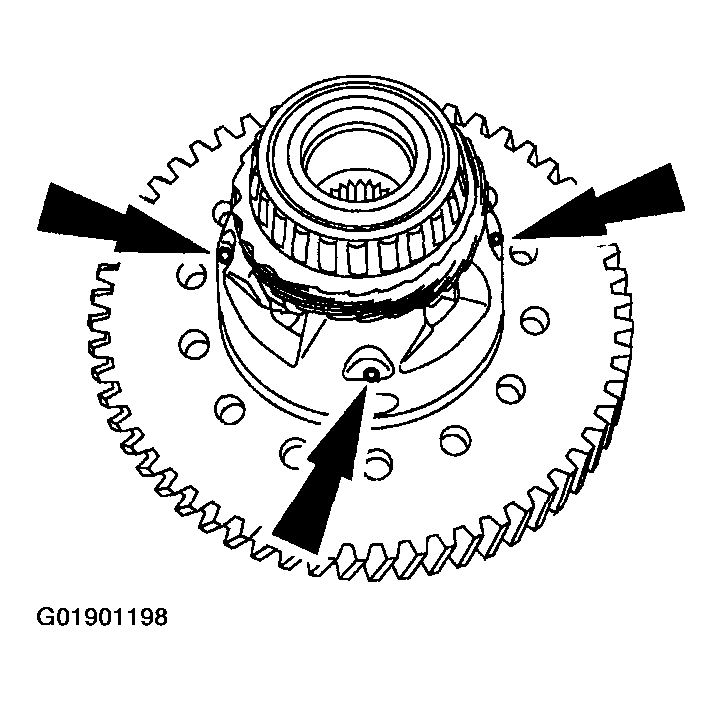

Fig 1: Installing Speedometer Drive Gear And Differential Bearing
Courtesy of MAZDA MOTORS CORP.

Using the special tool and a press, install the speedometer drive gear and the differential bearing.

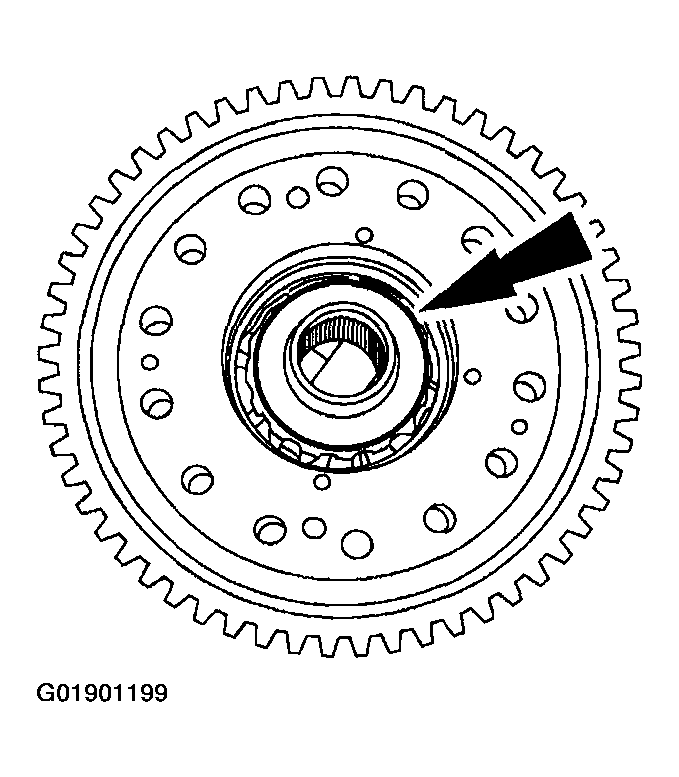

Fig 2: Installing Differential Bearing
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the differential bearing.

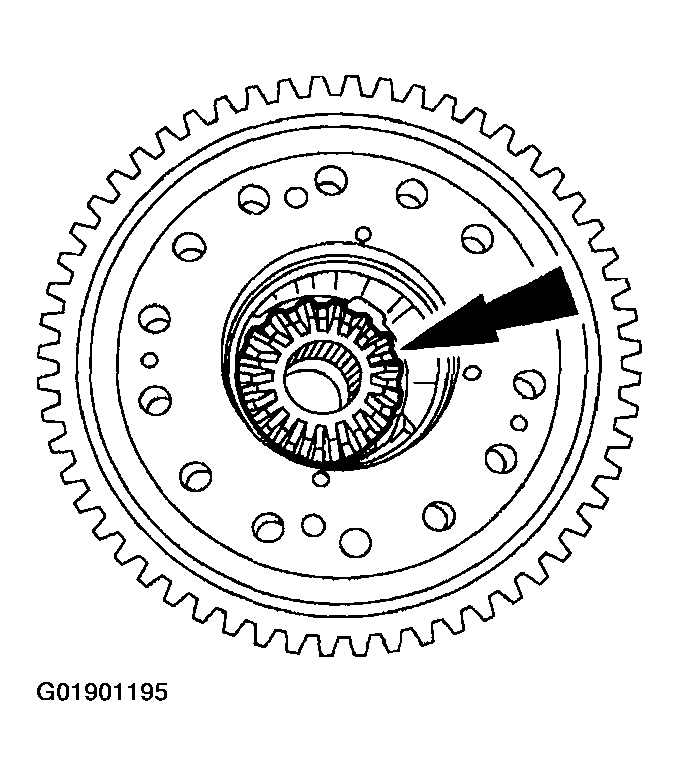

Fig 3: Installing Differential Side Gear And Thrust Washer
Courtesy of MAZDA MOTORS CORP.
Install the differential side gear and thrust washer.

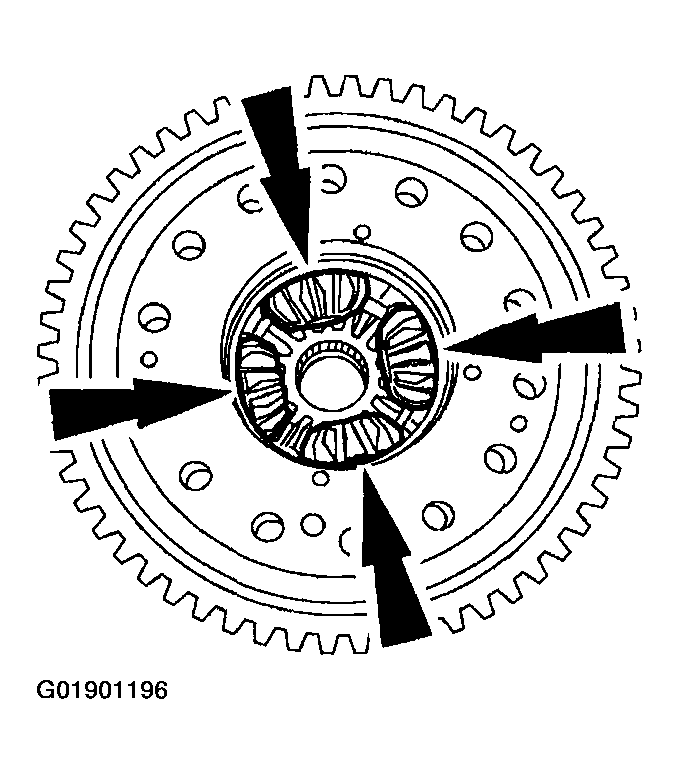

Fig 4: Installing Differential Pinion Gears And Thrust Washers
Courtesy of MAZDA MOTORS CORP.
Install the differential pinion gears and thrust washers.

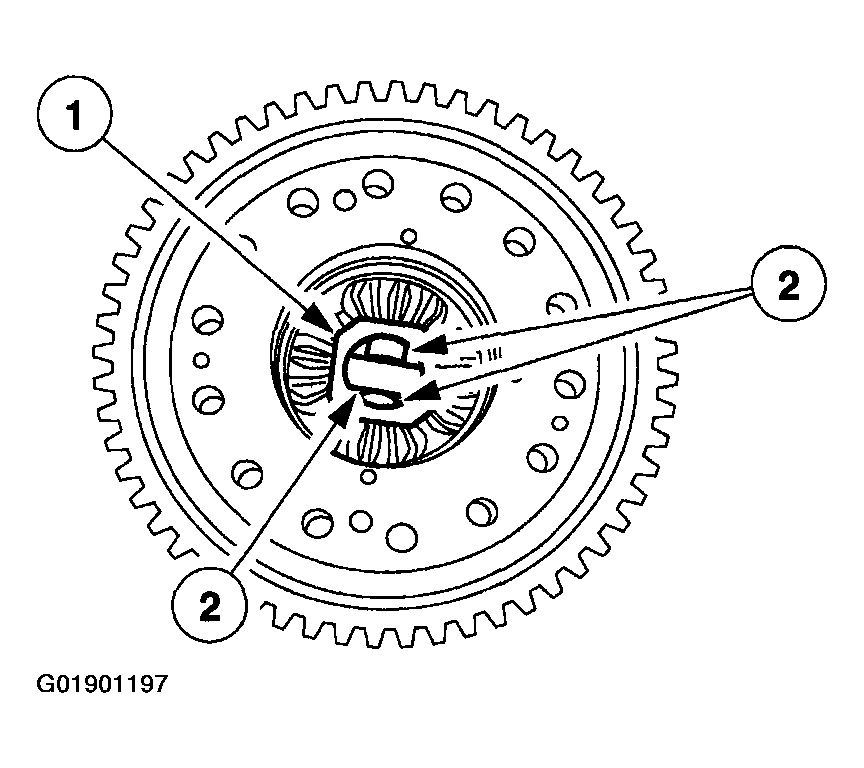

Fig 5: Installing Differential Pinion Shaft Cage
Courtesy of MAZDA MOTORS CORP.
Install the differential pinion shaft cage.
1. Position the differential pinion shaft cage.
2. Install the differential pinion shafts.

  Fig 6: Installing Differential Pinion Shaft Lock Pins
  Courtesy of MAZDA MOTORS CORP.
Install the differential pinion shaft lock pins.

Fig 7: Installing Differential Side Gear Thrust Washer And Differential Side Gear
Courtesy of MAZDA MOTORS CORP.
Install the differential side gear thrust washer and differential side gear.

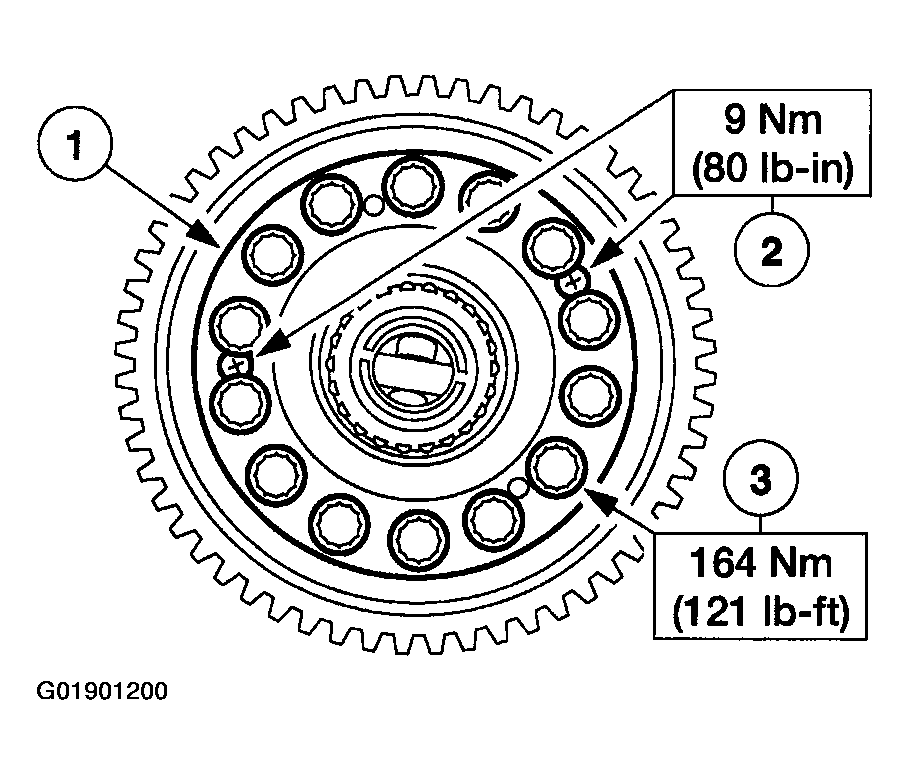

Fig 8: Installing Differential Cover
Courtesy of MAZDA MOTORS CORP.
Install the differential cover.
1. Position the differential cover.
2. Install the differential cover screws.
3. Install the differential cover bolts.
