Home › Mazda › 2003 › Tribute DX, 4WD › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle › Differential › Notes

Manual Transaxle: Differential: Notes

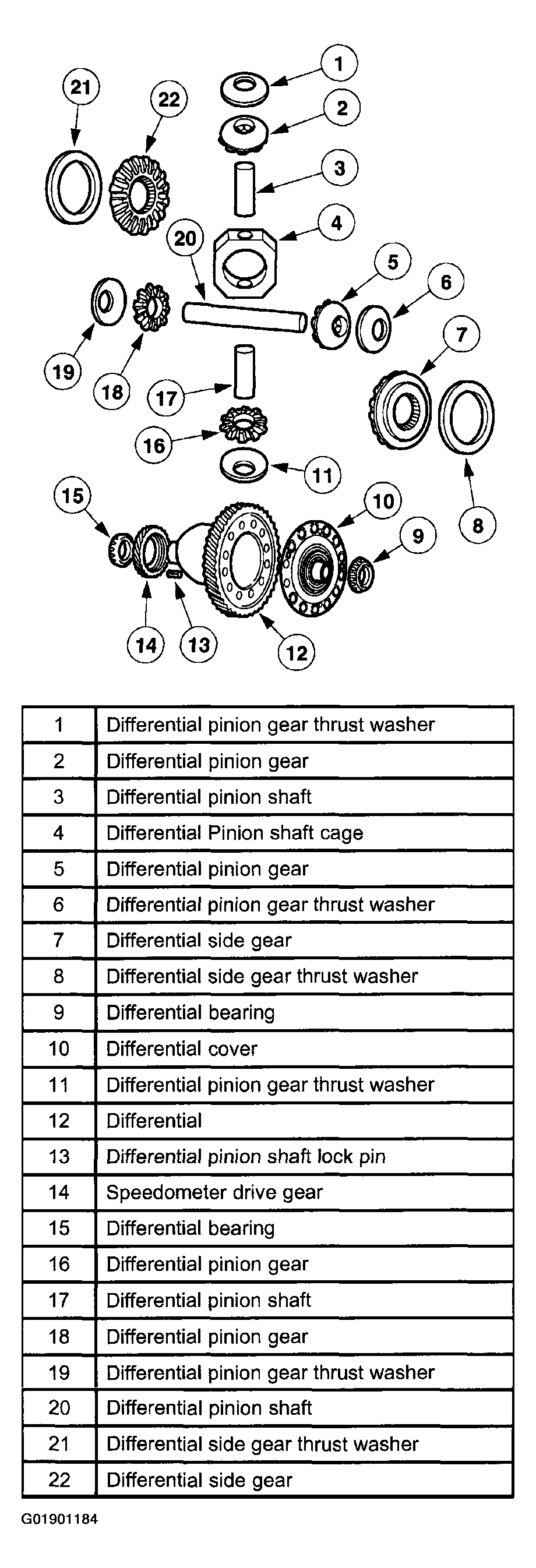

Fig 1: Exploded View Of Differential Components
G01901184Courtesy of MAZDA MOTORS CORP.
