Assembly Note

Fig 1: Pressing On Bearing (First Gear Side)
G01901174Courtesy of MAZDA MOTORS CORP.
NOTE:
  • Whenever a bearing has been removed, a new one must be installed.
  1. Using the special tools and a press, press on the bearing (first gear side).
    Fig 2: Pressing On First Gear, Synchronizer Blocking Ring, And Reverse Gear
    G01901175Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.
  2. Using the special tools and a press, press on the first gear, synchronizer blocking ring, and reverse gear.

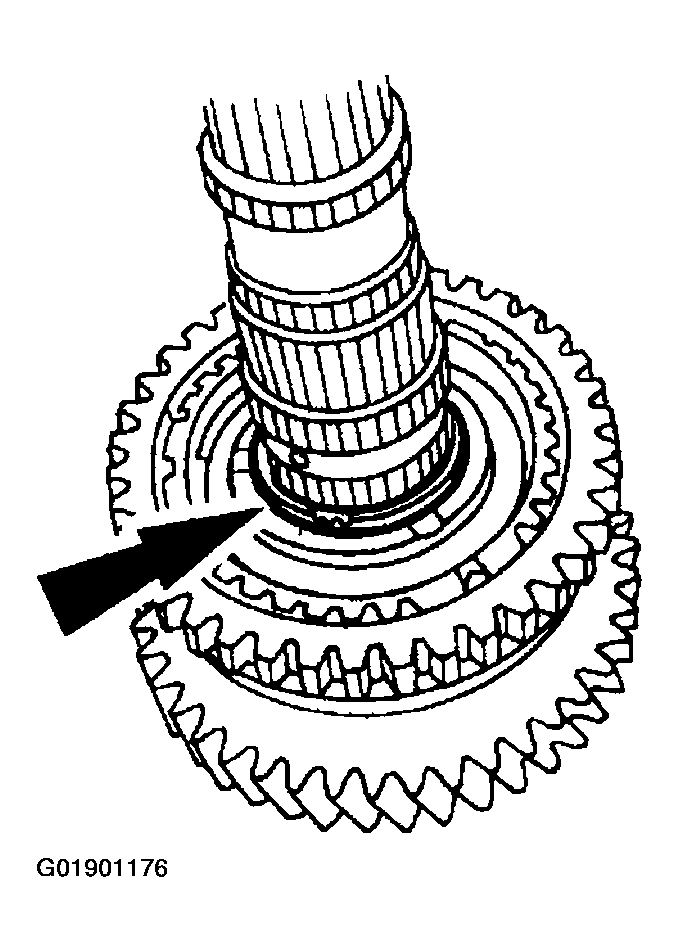

    Fig 3: Installing Snap Ring
    G01901176Courtesy of MAZDA MOTORS CORP.
  3. Install the snap ring.

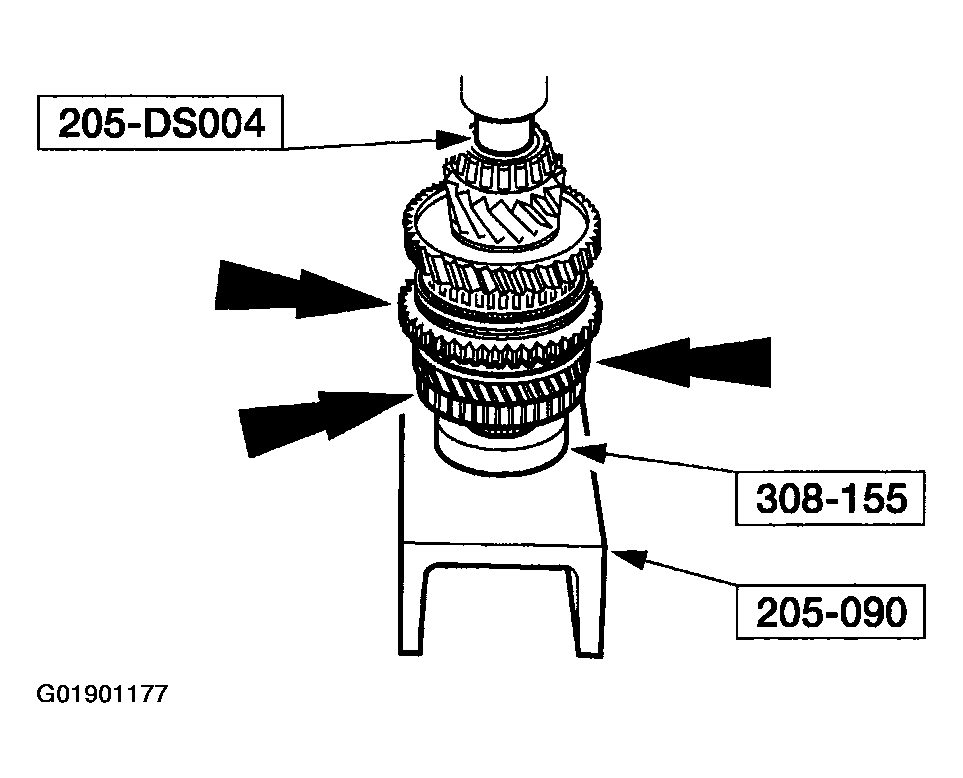

    Fig 4: Pressing On Synchronizer Blocking Ring, Second Gear, And Third Speed Gear
    G01901177Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.
  4. Using the special tools and a press, press on the synchronizer blocking ring, second gear, and third speed gear.

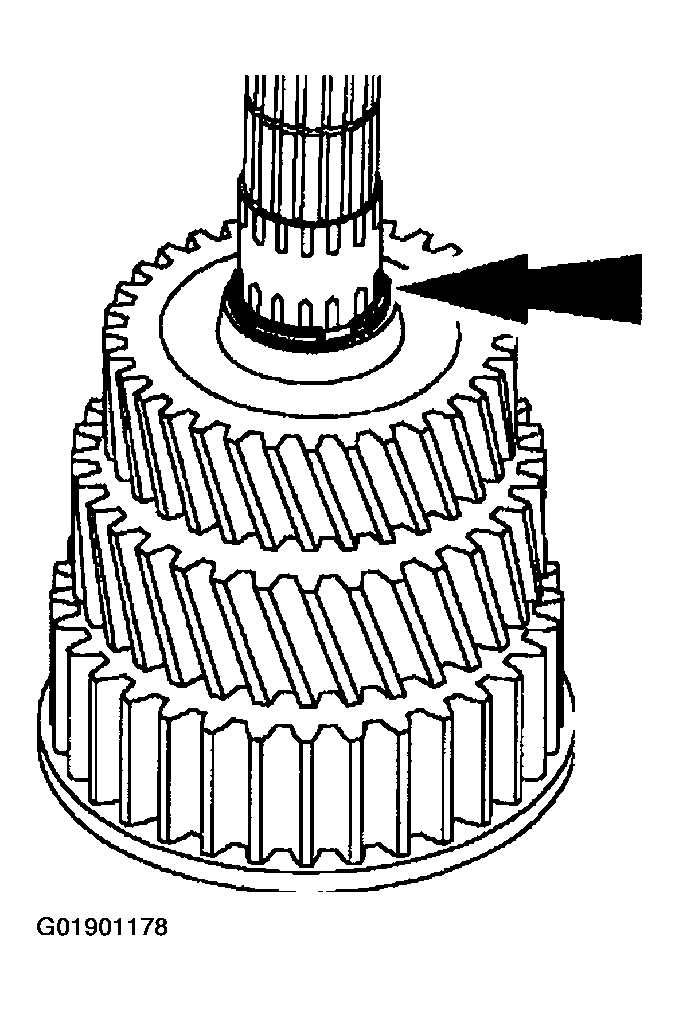

    Fig 5: Installing Snap Ring
    G01901178Courtesy of MAZDA MOTORS CORP.
  5. Install the snap ring.

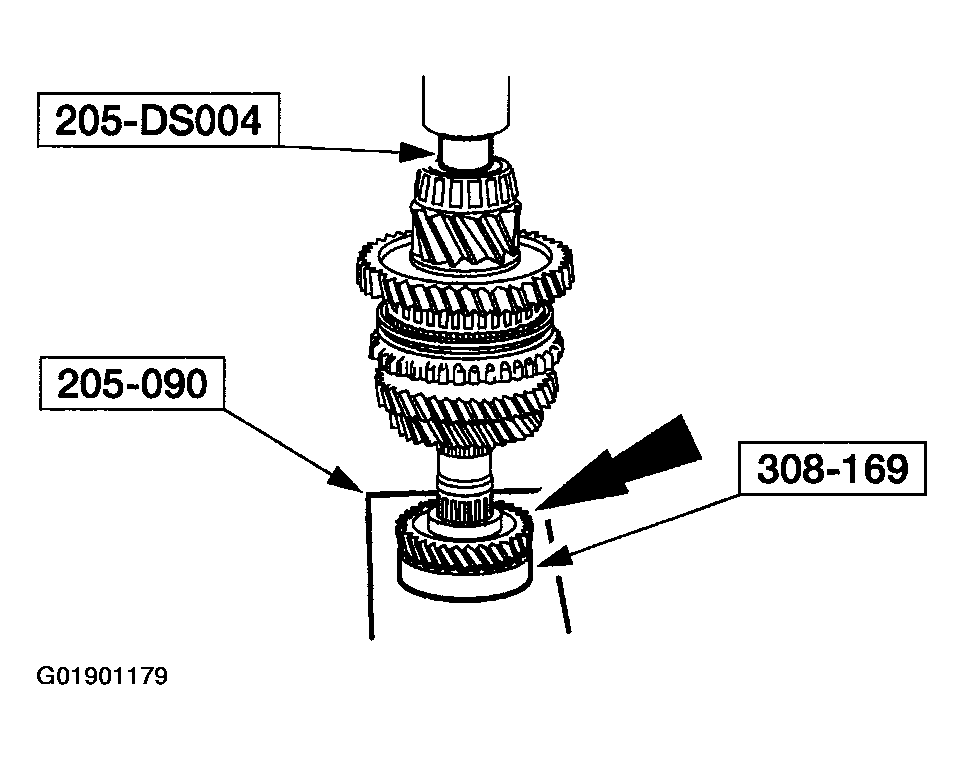

    Fig 6: Pressing On Fourth Speed Gear
    G01901179Courtesy of MAZDA MOTORS CORP.
  6. Using the special tools and a press, press on the fourth speed gear.

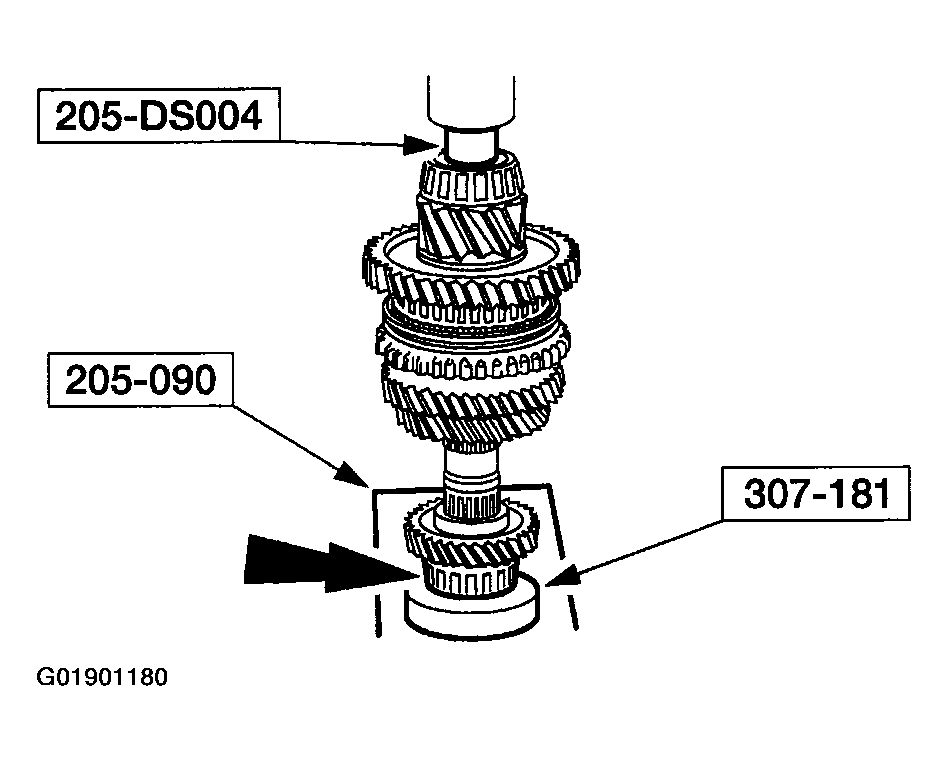

    Fig 7: Pressing On Bearing (Fourth Gear Side)
    G01901180Courtesy of MAZDA MOTORS CORP.
  7. Using the special tools and a press, press on the bearing (fourth gear side).

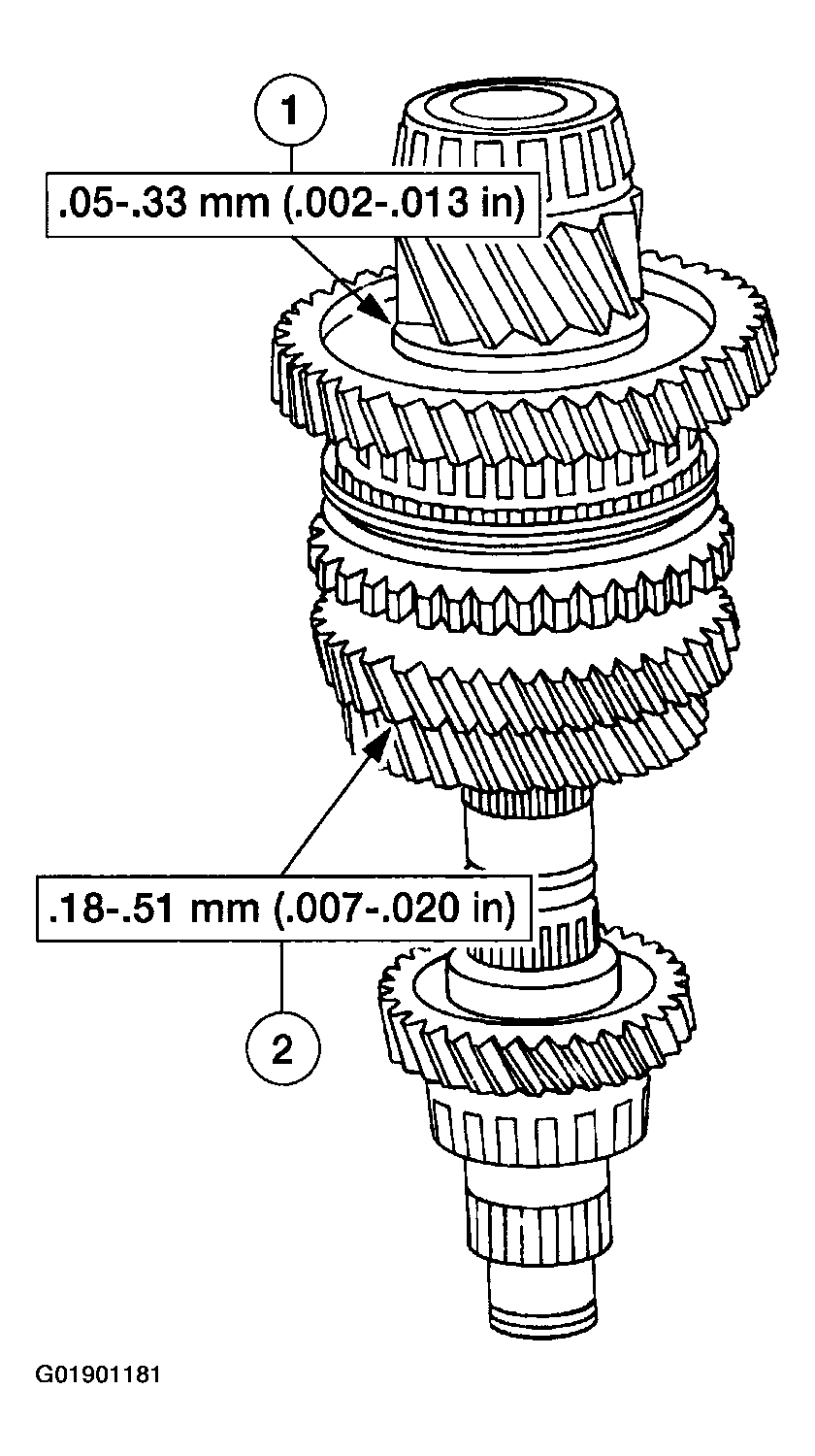

    Fig 8: Measuring Output Shaft Clearances
    G01901181Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If not within specifications, disassemble and reassemble the output shaft assembly.
  8. Measure the output shaft clearances.
    1. Measure the clearance between first gear and the differential drive gear.
    2. Measure the clearance between second gear and third gear.
