Assembly Note

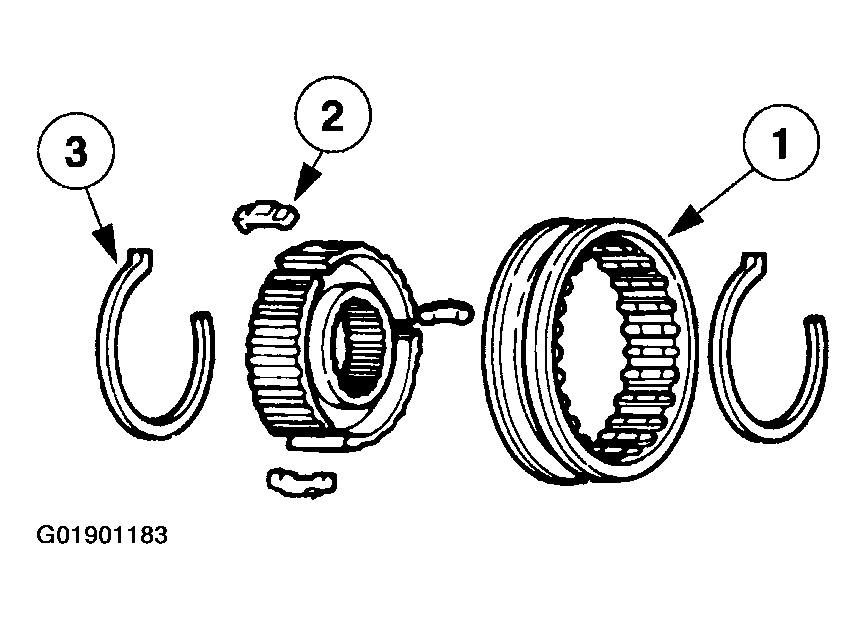

Fig 1: Assembling Synchronizer

G01901183

Courtesy of MAZDA MOTORS CORP.

NOTE:

Align the index marks during assembly.

Assemble the synchronizer.
1. Position the synchronizer hub and sleeve together.
2. Install the synchronizer hub inserts.
3. Install the synchronizer blocking springs.
