Reference: Pressure Chart No. 401

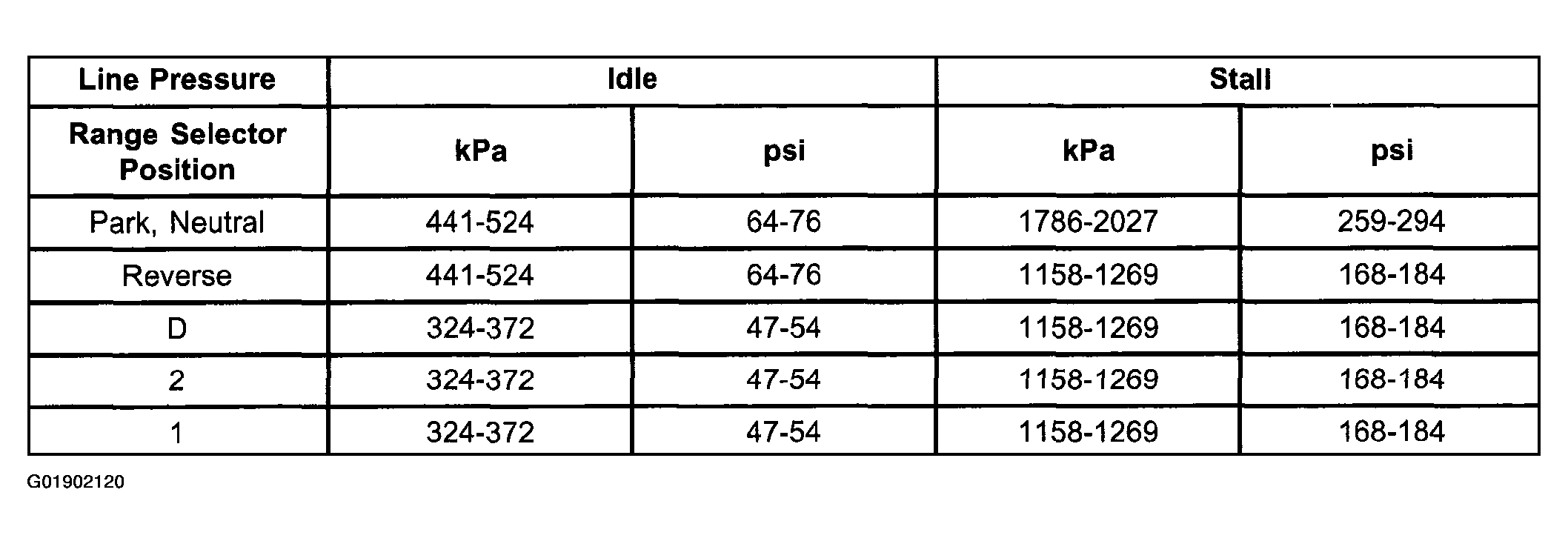

Fig 1: Pressure Chart No. 401
G01902120Courtesy of MAZDA MOTORS CORP.
