Generic Electronic Module (GEM) Connector End View (C201b)

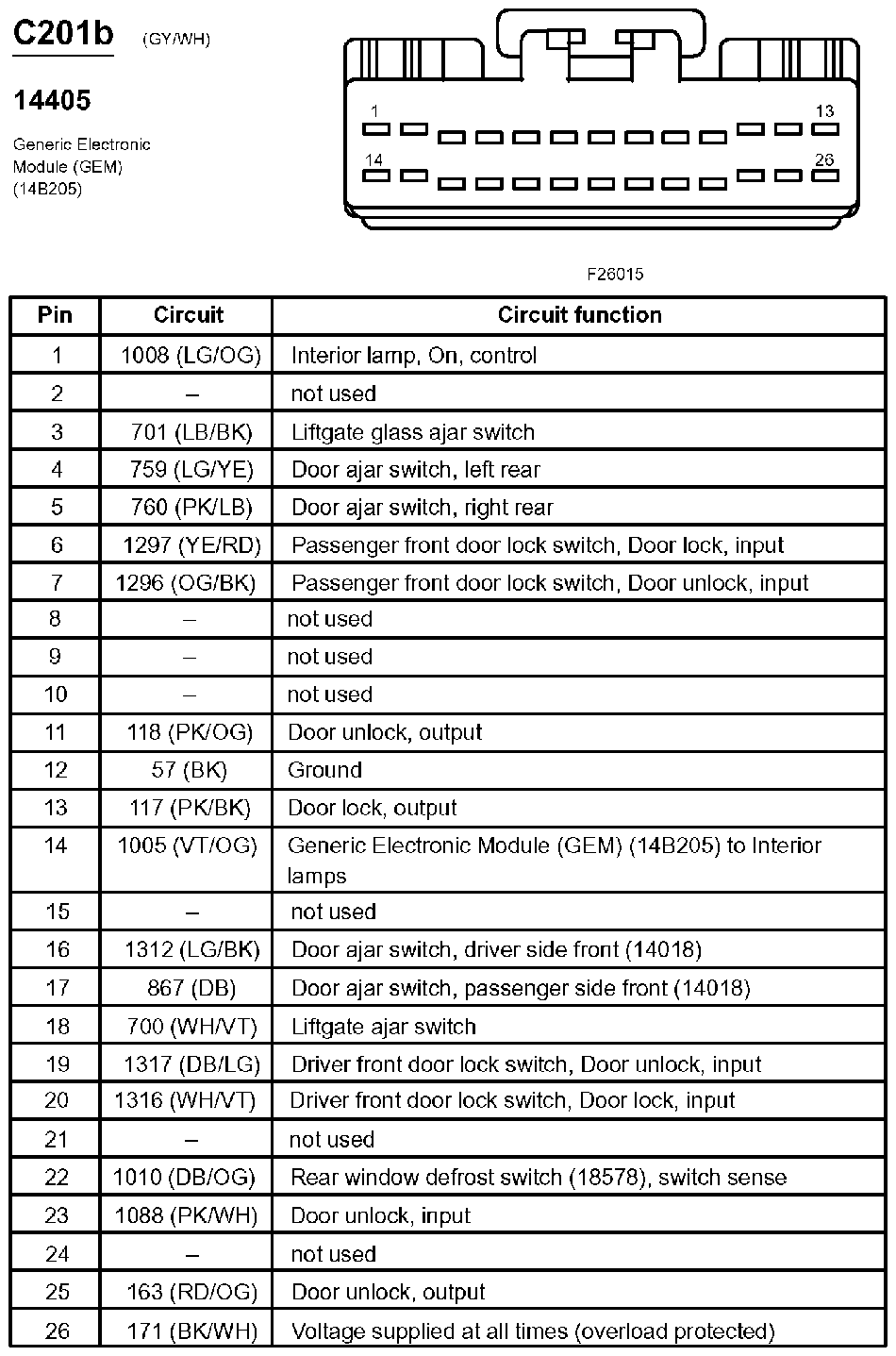

Fig 1: Generic Electronic Module (GEM) Connector End View (C201b)
G07831459Courtesy of FORD MOTOR CO.
