Removal and Installation

  1. Disconnect the battery ground cable.
  2. Turn the ignition key to the ON position.

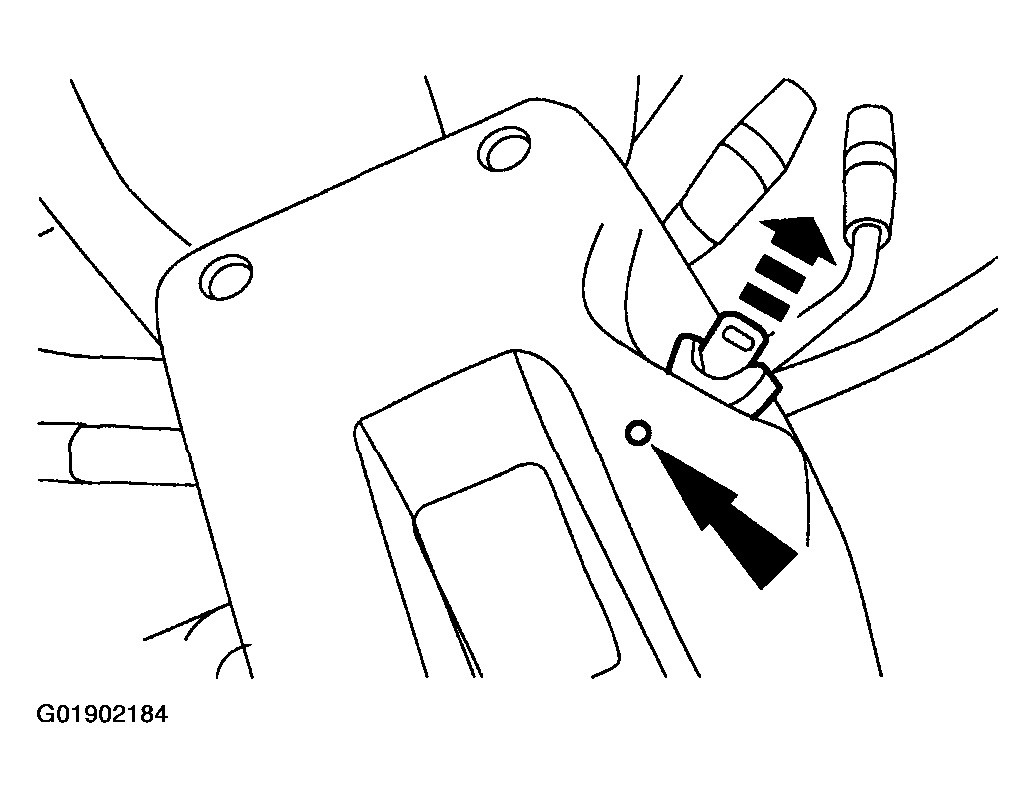

    Fig 1: Depressing Ignition Lock Cylinder Using Tool
    G01902184Courtesy of MAZDA MOTORS CORP.
  3. Using a small tool, depress the ignition lock cylinder release button and pull the ignition lock cylinder out.
  4. To install, reverse the removal procedure.
