Symptom Troubleshooting Chart - Automatic Transaxle Shift Control
›
Notes
Symptom Troubleshooting Chart - Automatic Transaxle Shift Control: Notes

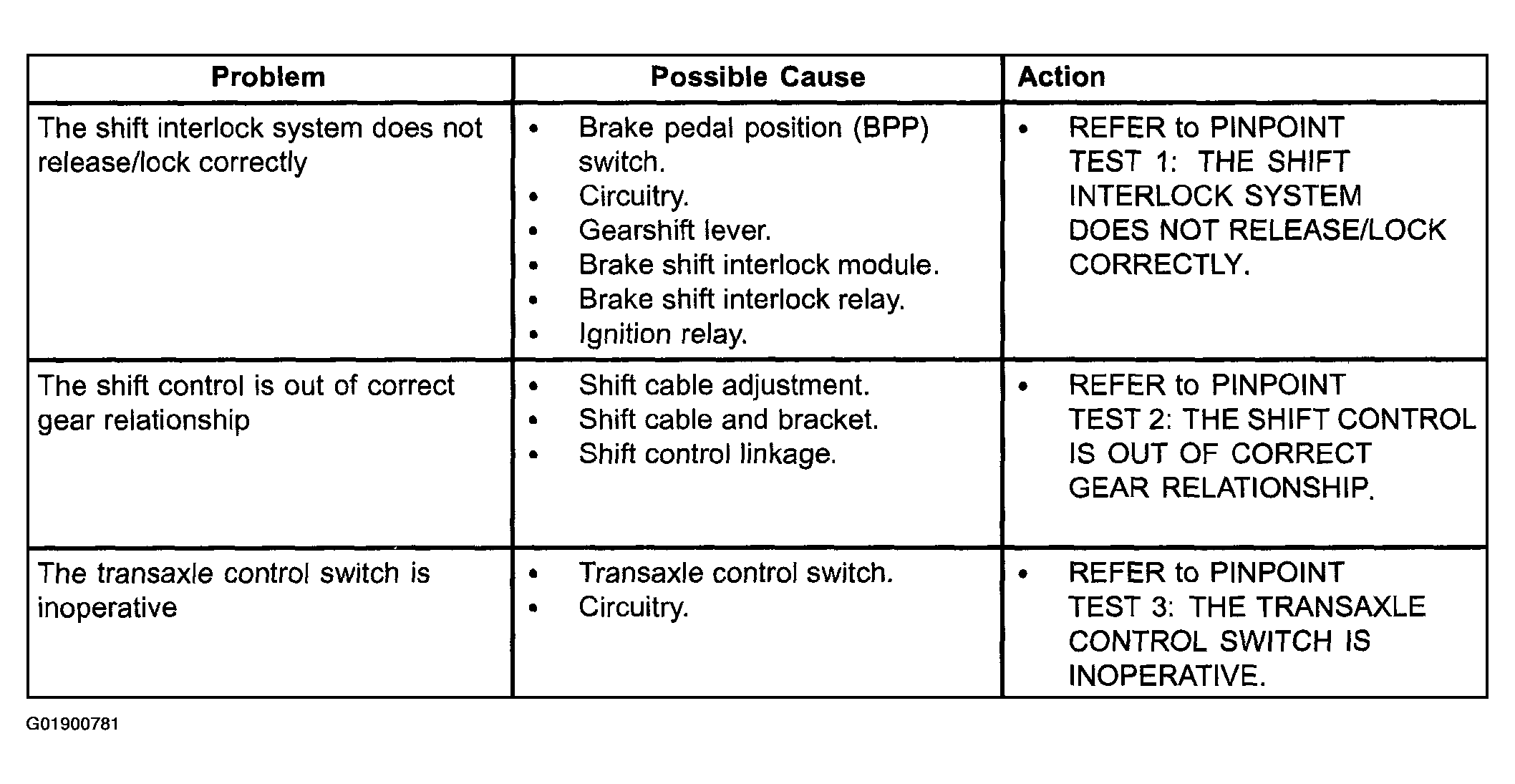

Fig 1: Symptom Troubleshooting Chart - Automatic Transaxle Shift Control
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
