Symptom Troubleshooting Chart - Power Mirrors: Notes

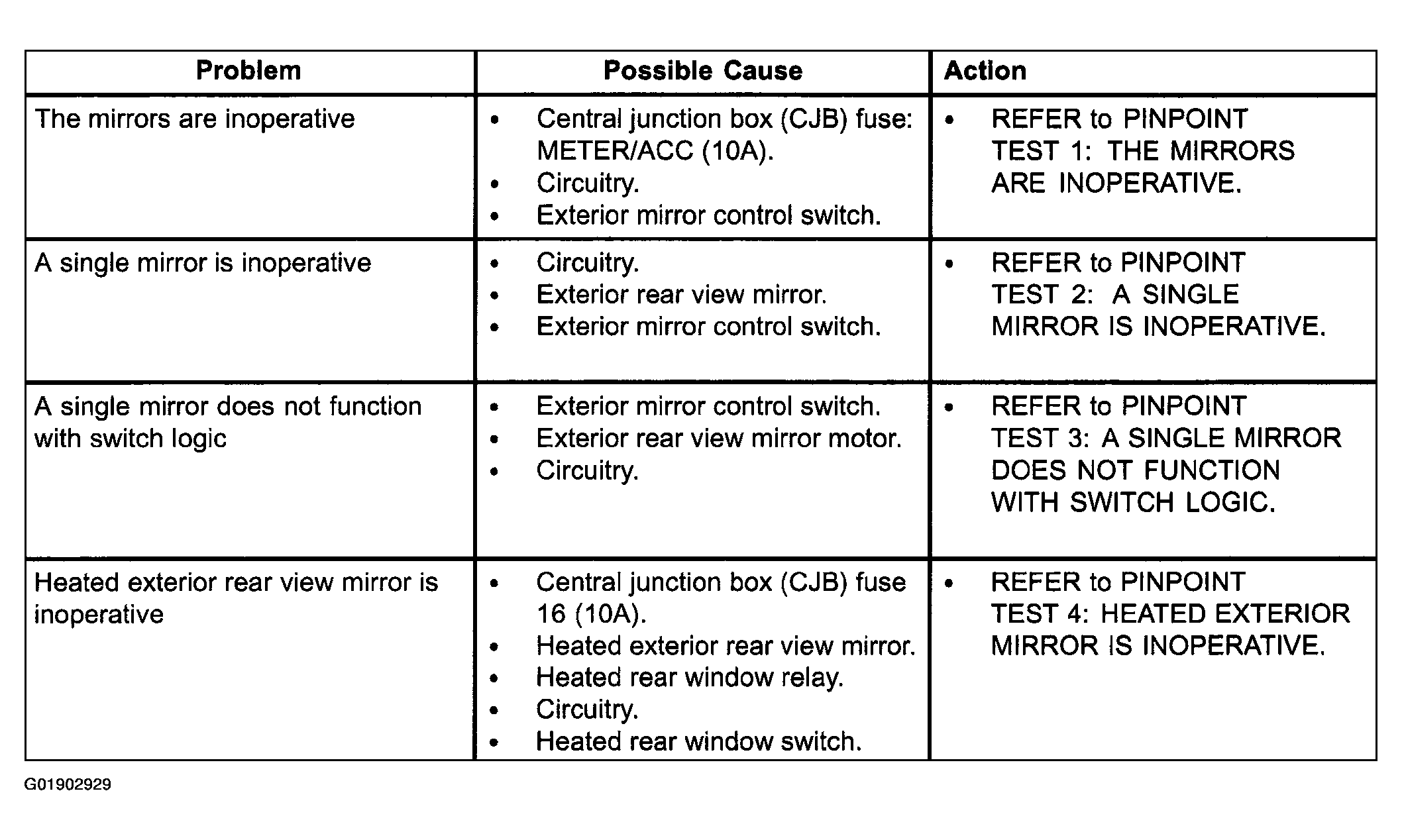

Fig 1: Symptom Troubleshooting Chart - Power Mirrors

Courtesy of MAZDA MOTORS CORP.

PINPOINT TEST

PINPOINT TEST	DESCRIPTION
PINPOINT TEST 1	THE MIRRORS ARE INOPERATIVE
PINPOINT TEST 2	A SINGLE MIRROR IS INOPERATIVE
PINPOINT TEST 3	A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC
PINPOINT TEST 4	HEATED EXTERIOR MIRROR IS INOPERATIVE
