Selector Lever Cable: Removal

Fig 1: Removing Upper Steering Column Shroud

Courtesy of MAZDA MOTORS CORP.

1. Remove the upper steering column shroud.

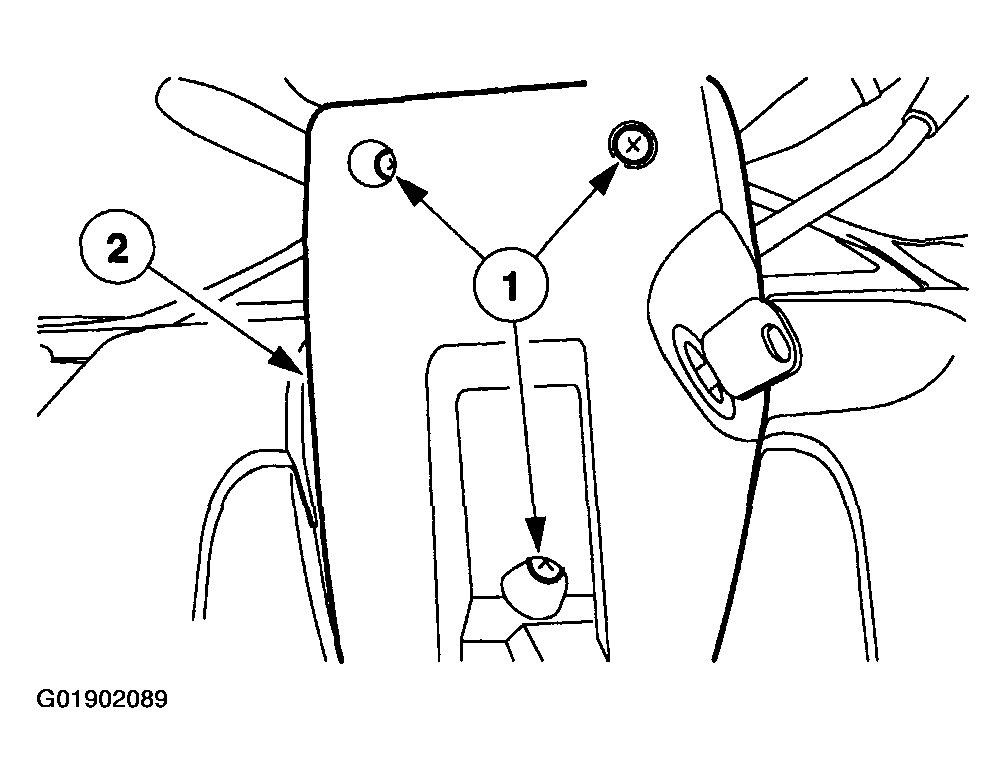

   Fig 2: Removing Lower Steering Column Shroud

   Courtesy of MAZDA MOTORS CORP.
2. Remove the lower steering column shroud.
   1. Remove the screws.
   2. Remove the lower steering column shroud.

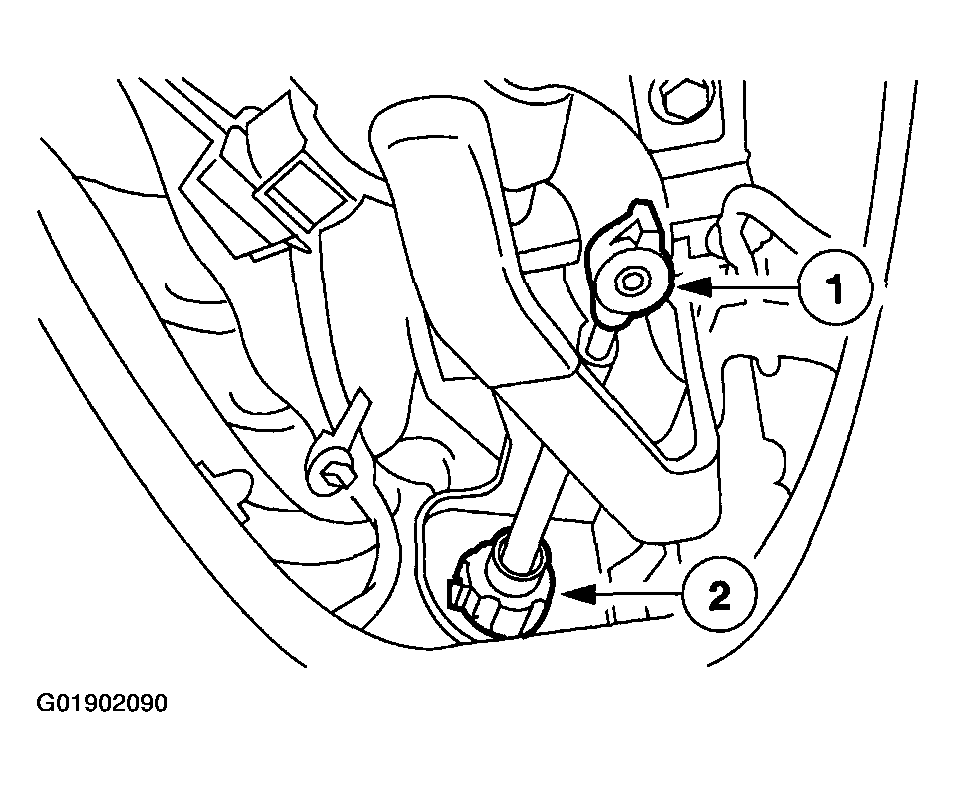

      Fig 3: Disconnecting Gearshift Cable From Steering Column Bracket

      Courtesy of MAZDA MOTORS CORP.
3. Disconnect the gearshift cable from the steering column bracket.
   1. Disconnect the gearshift cable from the gearshift lever.
   2. Disconnect the gearshift cable from the steering column bracket.

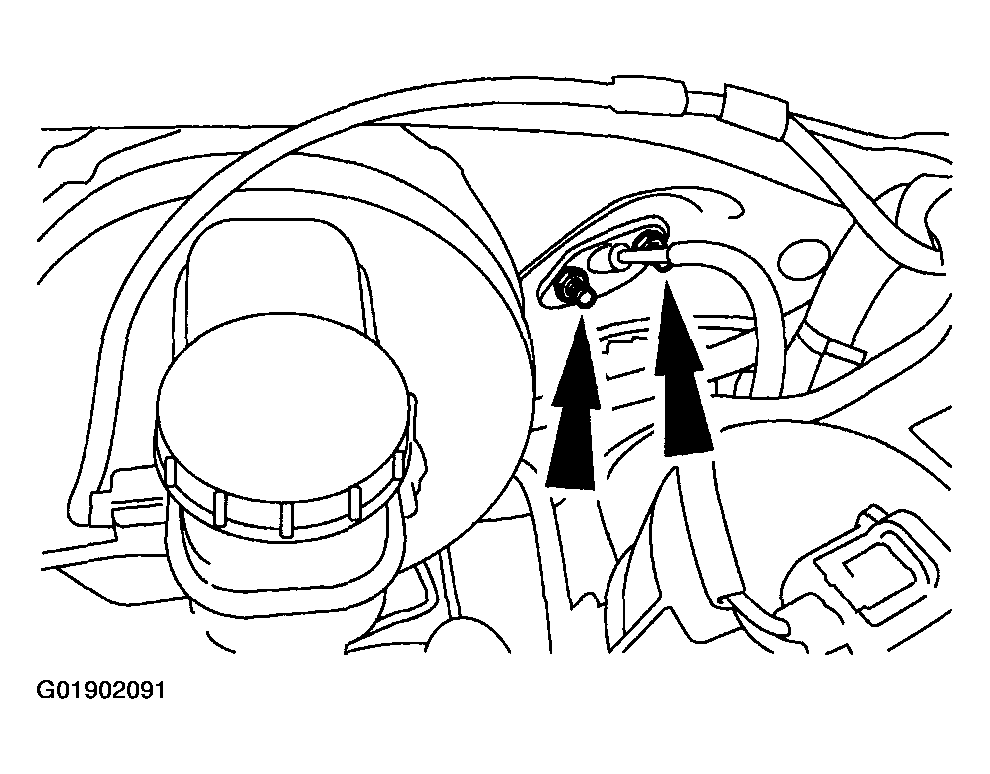

      Fig 4: Removing Gearshift Cable Nuts

      Courtesy of MAZDA MOTORS CORP.
4. Remove the gearshift cable nuts.

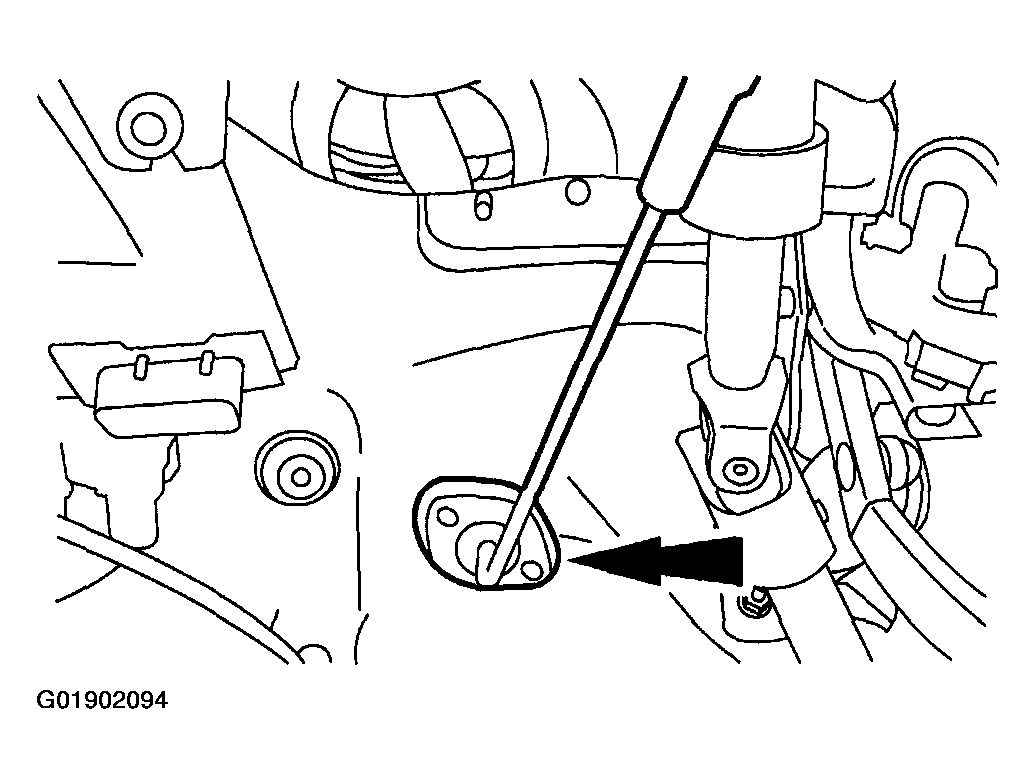

   Fig 5: Detaching Gearshift Cable From Transaxle Shifter Lever

   Courtesy of MAZDA MOTORS CORP.
5. Detach the gearshift cable from the transaxle shifter lever.

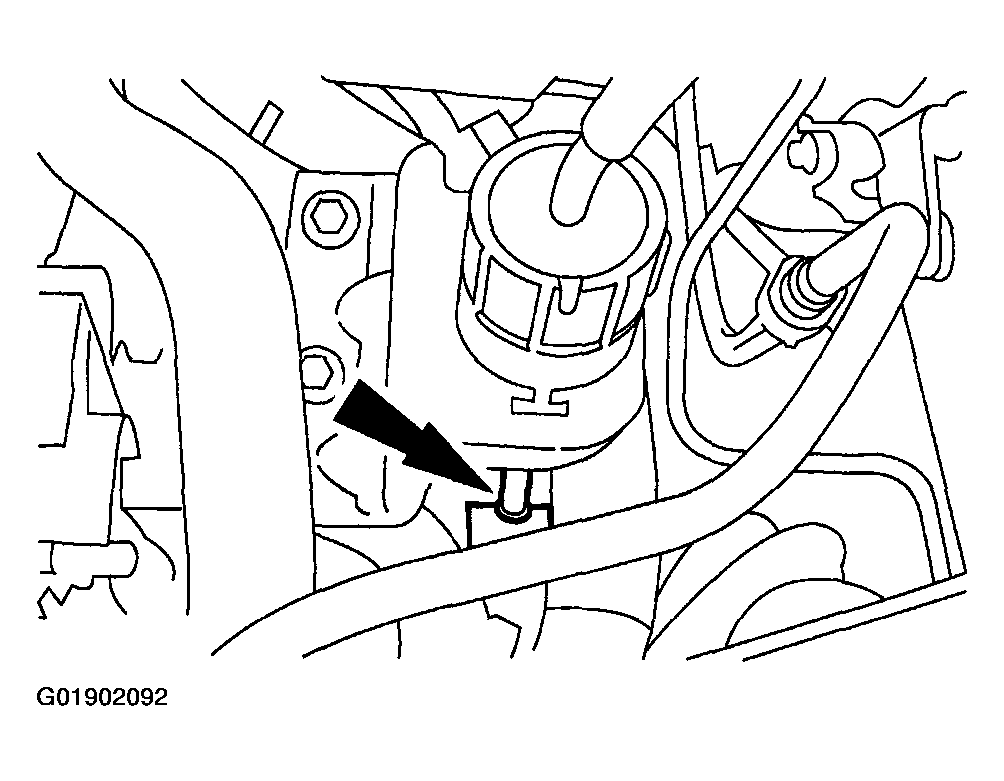

   Fig 6: Disconnecting Gearshift Cable From Bracket By Depressing Locking Tabs At Bracket

   Courtesy of MAZDA MOTORS CORP.
6. Disconnect the gearshift cable from the bracket by depressing the locking tabs at the bracket.

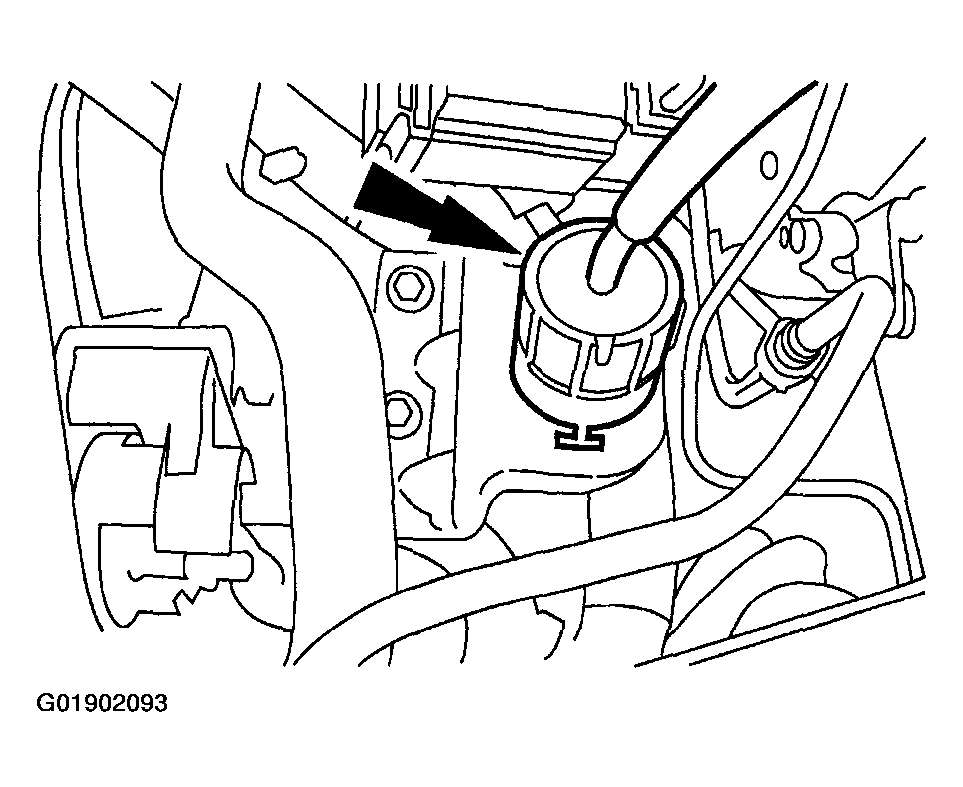

   Fig 7: Removing Gearshift Cable

   Courtesy of MAZDA MOTORS CORP.
7. Remove the gearshift cable.
