Home › Mazda › 2003 › Tribute ES, FWD › Repair and Diagnosis › Engine Performance › System › Engine Controls - Trouble Shooting - With & Without Codes › Test 7: Fuel Pressure Regulator

Test 7: Fuel Pressure Regulator

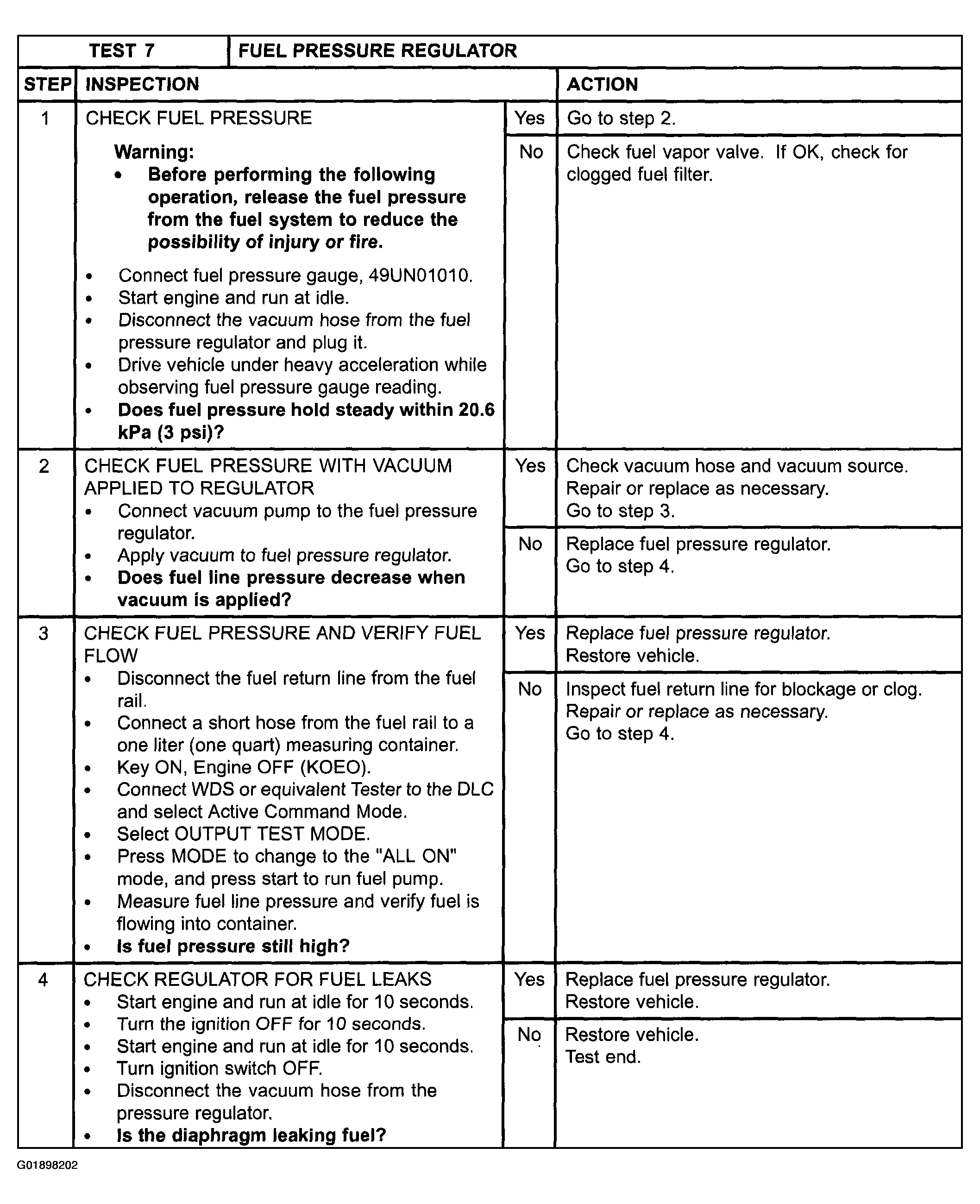

Fig 1: Fuel Pressure Regulator Inspection Procedure
G01898202Courtesy of FORD MOTOR CO.
